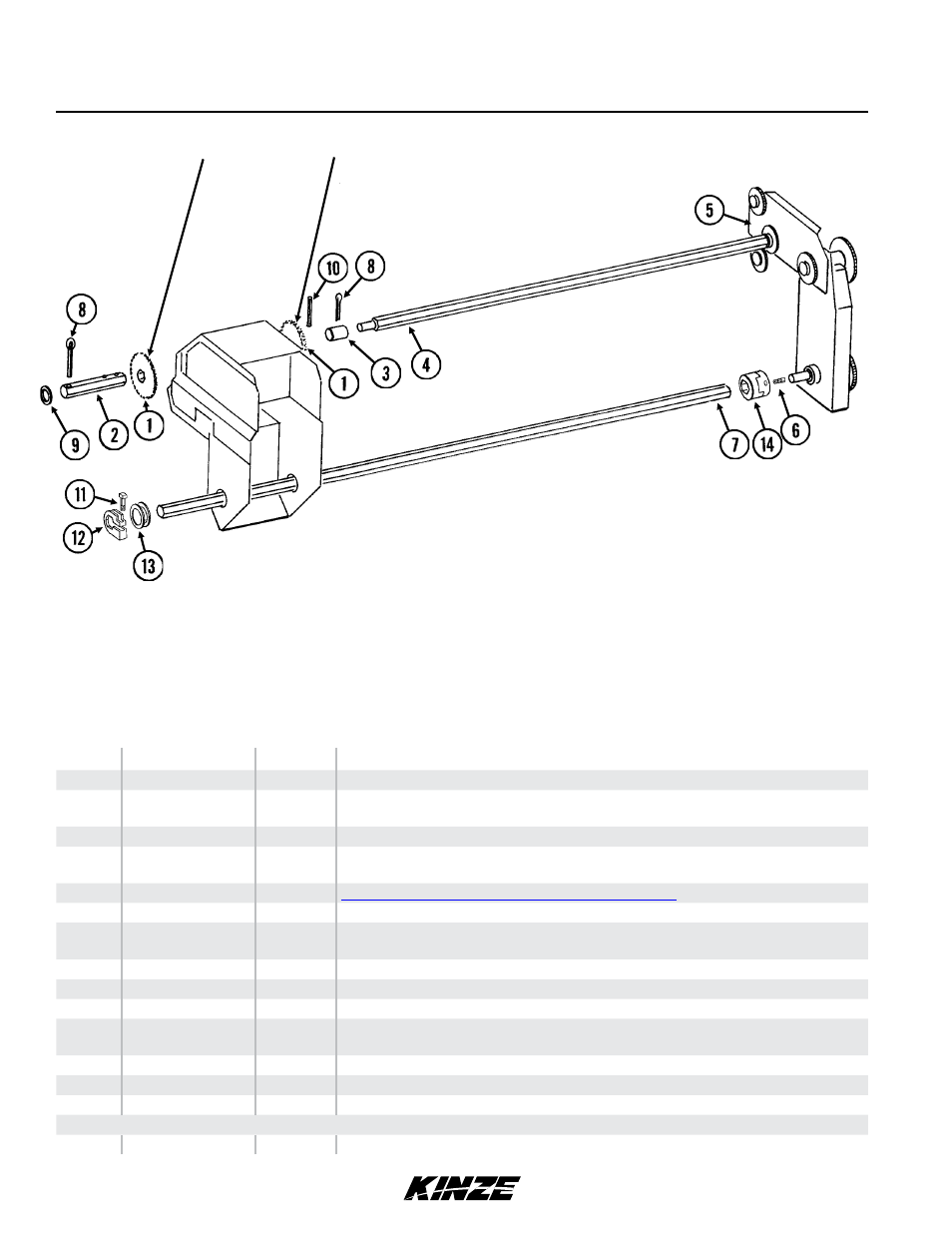

Kinze 3000 Rigid Frame Planter Rev. 5/14 - Manual (Page 58)

Driveline, 4 Row 30"/36"/38"
ITEM PART NO. QTY. DESCRIPTION
1 GA5114 1 Sprocket, 30 Tooth
2 GD7819
GD5958 1
-
Hex Shaft, ⅞" x 15¼" (3 Holes), 4 Row 30"
Hex Shaft, ⅞" x 16" (4 Holes), 4 Row 36"/38"
3 GD5961 1 Coupler, 2 ¼"
4 GD5885-02
GD5885-03 1
-
Hex Shaft, ⅞" x 19" (6 Holes), 4 Row 30"
Hex Shaft, ⅞" x 24" (6 Holes), 4 Row 36"/38"
5 --- - See “Seed Rate Transmission Assembly” on page P57
6 G10131 4 Square Head Set Screw, 5∕16"-18 x ¾"
7 GD0914-109
GD0914-134 1
-
Hex Shaft, ⅞" x 109" (No Holes), 4 Row 30"
Hex Shaft, ⅞" x 134" (No Holes), 4 Row 36"/38"
8 G10460 2 Cotter Pin, ¼" x 2"
9 G10233 - Machine Bushing, 1", 10 Gauge (As Required)
10 G10602 1 Spring Pin, ¼" x 1½"
11 G10130
G10923 1
1 Square Head Machine Bolt, 5∕16"-18 x 1¾"
Flange Nut, 5∕16"-18, No Serration
12 GD11045 1 Lock Clamp
13 G10233 2 Machine Bushing, 1", 10 Gauge
14 GB0287 2 Coupler
A G1K269 - Lock Clamp Kit (Items 11 and 12)
PTD033(PT5b) 4 Row 36"/38" 4 Row 30"
M0188-02 Model 3000
