Kinze 3000 Rigid Frame Planter Rev. 5/14 - Manual (Page 14)

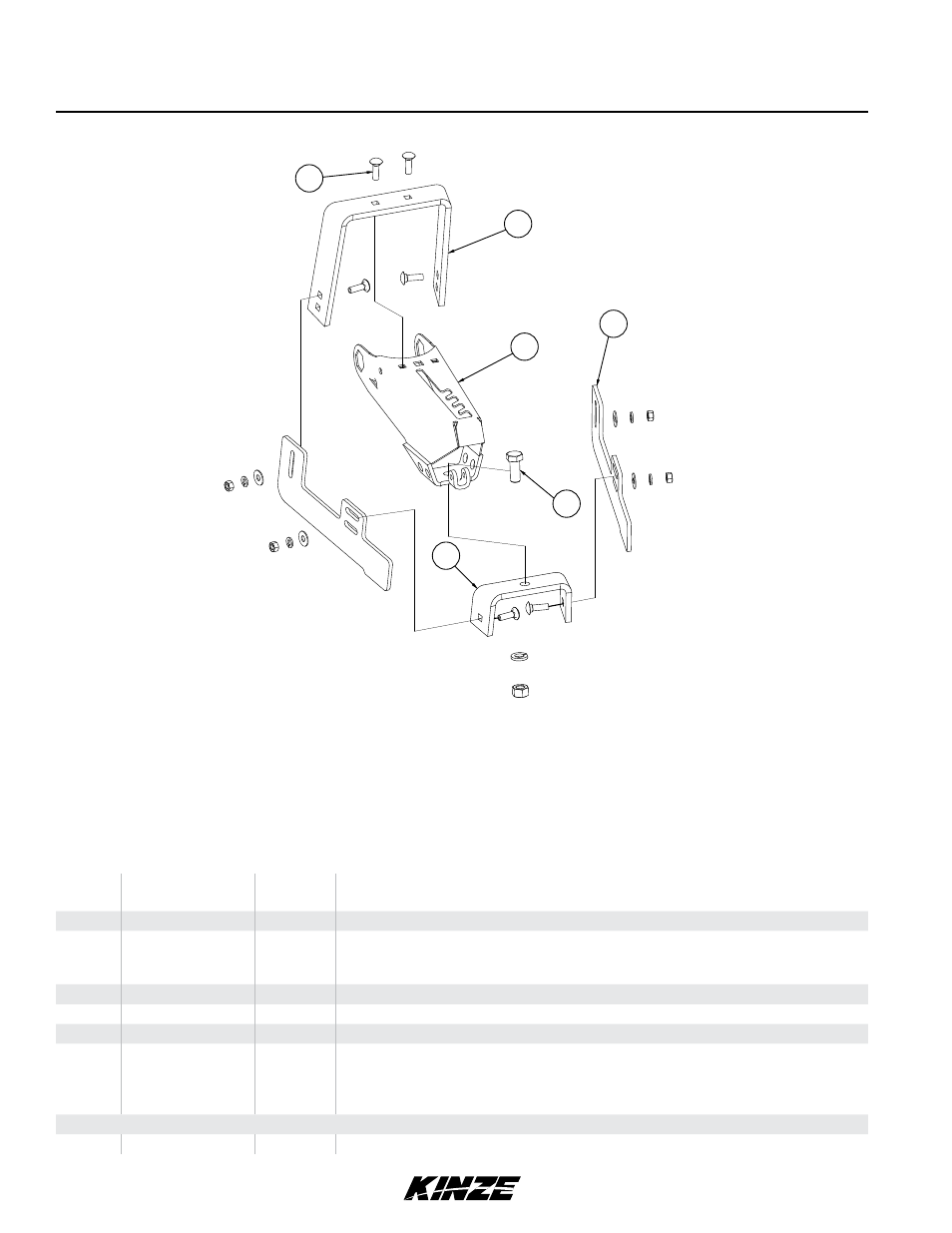

Drag Closing Attachment
ITEM PART NO. QTY.
(Per Row)
DESCRIPTION
1 GD11509 1 Rear Bracket
2 G10007
G10230
G10104 1
1
1 Hex Head Cap Screw, ⅝"-11 x 1½"
Lock Washer, ⅝"
Hex Nut, ⅝"-11
3 GA15197 1 Closing Wheel Arm
4 GD11313 2 Blade
5 GD11508 1 Front Bracket
6 G10599
G10229
G11387
G10101 6
6
6
6 Carriage Bolt, ⅜"-16 x 1¼"
Lock Washer, ⅜"
Flat Washer, ⅜" SAE
Hex Nut, ⅜"-16
A G7566X - Drag Closing Attachment Complete (Items 1-6)
(IP1202)
5
3
4
1
2
6
M0188-02 Model 3000
P11 Rev. 5/12
TM
