Kinze 3000 Rigid Frame Planter Rev. 5/14 - Manual (Page 59)

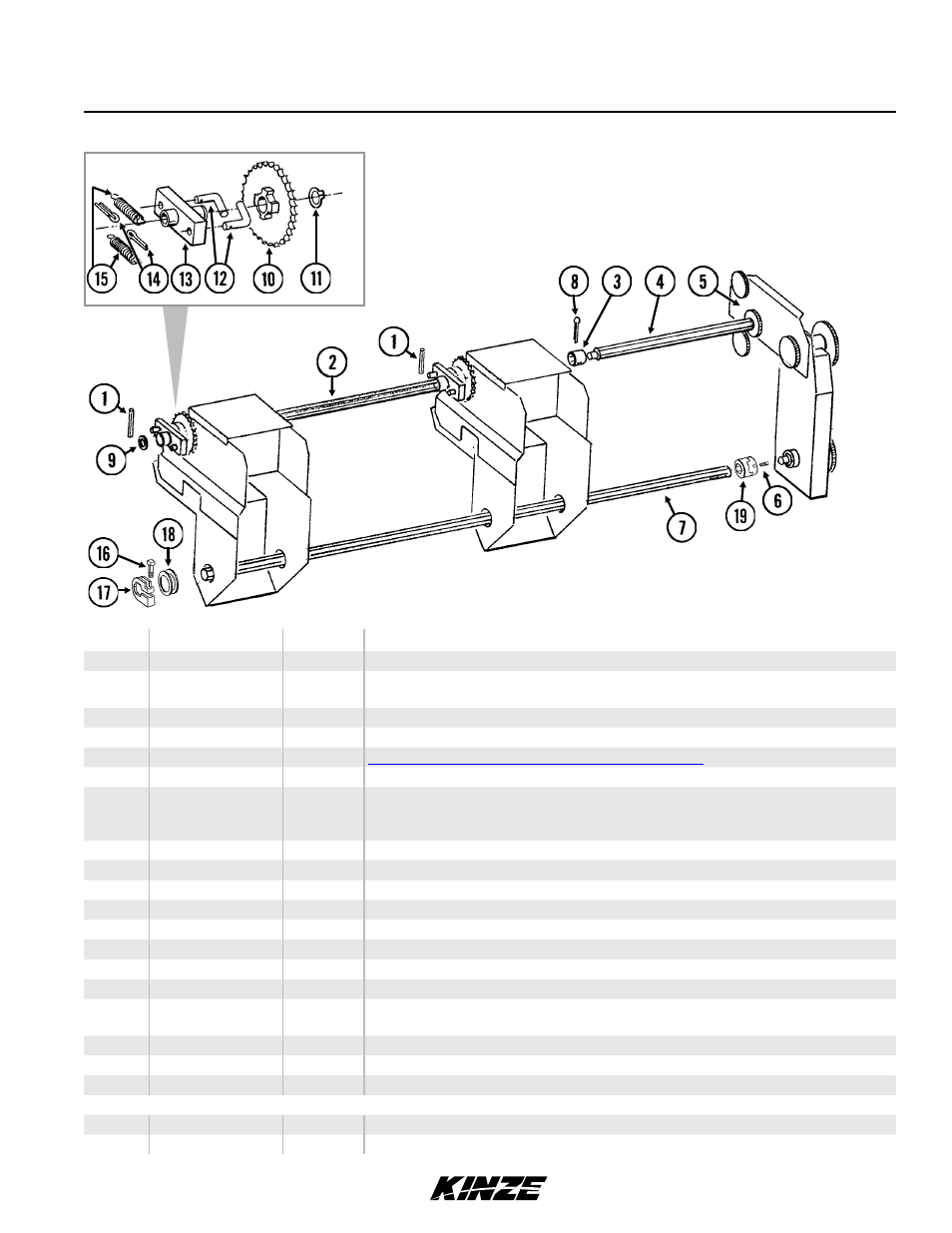

Driveline, 6 Row 30"/36"/38" and 8 Row 30"
ITEM PART NO. QTY. DESCRIPTION
1 G10602 2 Spring Pin, ¼" x 1½"
2 GD5884-01
GD5960 1
-
Hex Shaft, ⅞" x 36" (3 Holes), 6 Row 30" and 8 Row 30"
Hex Shaft, ⅞" x 50" (6 Holes), 6 Row 36"/38"
3 GD5961 1 Coupler, 2¼"
4 GD5885-01 1 Hex Shaft, ⅞" x 30" (6 Holes), 6 Row 30"/36"/38" and 8 Row 30"
5 --- - See “Seed Rate Transmission Assembly” on page P57
6 G10131 4 Square Head Set Screw, 5∕16"-18 x ¾"
7 GD0914-170
GD0914-210
GD0914-230 1
-
-
Hex Shaft, ⅞" x 170" (No Holes), 6 Row 30"
Hex Shaft, ⅞" x 210" (No Holes), 6 Row 36"/38"
Hex Shaft, ⅞" x 230" (No Holes), 8 Row 30"
8 G10460 2 Cotter Pin, ¼" x 2"
9 G10233 - Machine Bushing, 1", 10 Gauge (As Required)
10 GA5165 1 Sprocket, 30 Tooth
11 G10430 1 External Retaining Ring, 1¼"
12 GD1255 2 L-Pin
13 GA0378 1 Block and Hub Assembly
14 G10453 2 Cotter Pin, 3∕16" x 1"
15 GD1256 2 Spring
16 G10130
G10923 1
1 Square Head Machine Bolt, 5∕16"-18 x 1¾"
Flange Nut, 5∕16"-18, No Serration
17 GD11045 1 Lock Clamp
18 G10233 2 Machine Bushing, 1", 10 Gauge
19 GB0287 2 Coupler
A GA5164 - Ratchet/Sprocket Assembly, Includes: (2) GD1256, (2) G10464,
B G1K269 - Lock Clamp Kit (Items 16 and 17)
