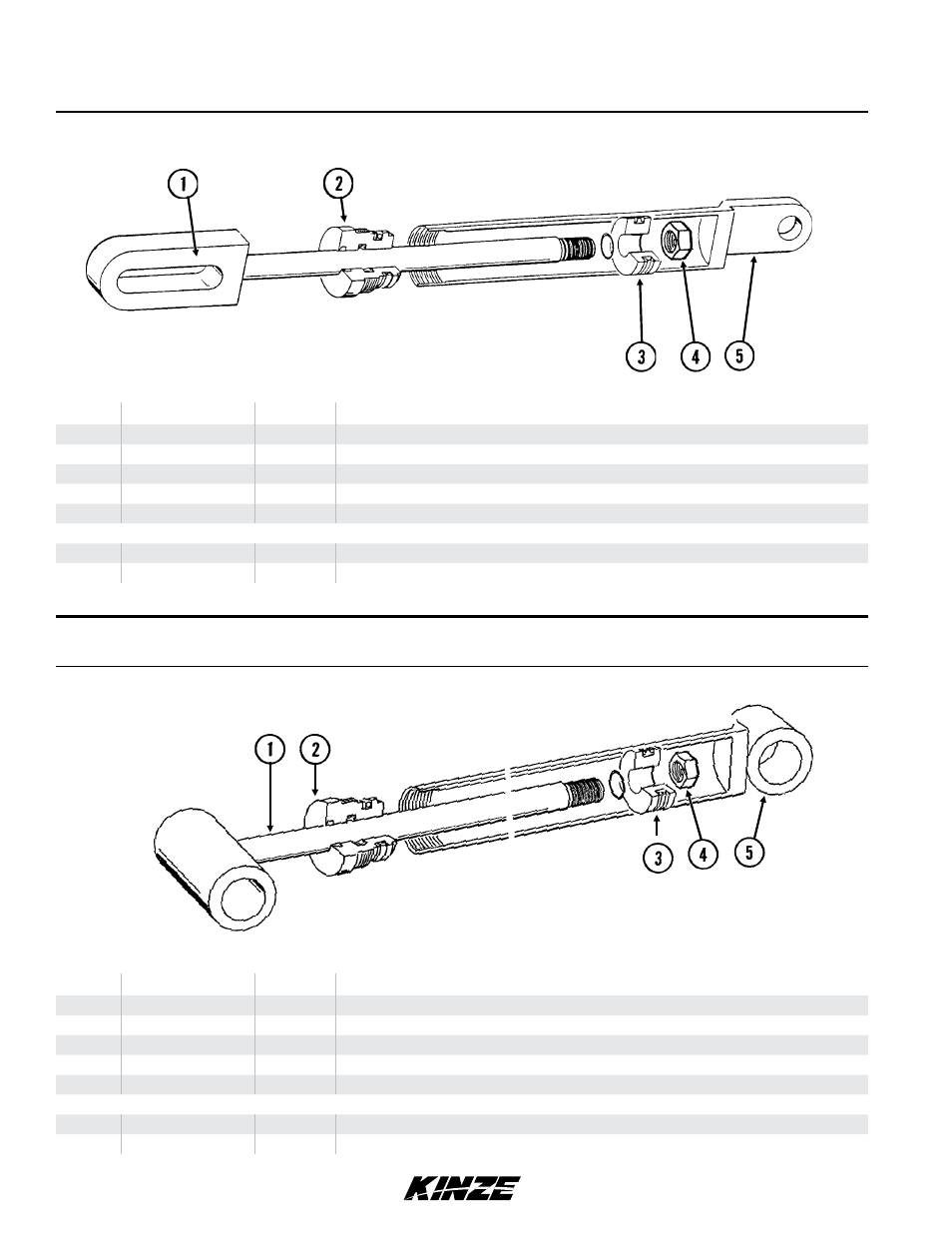

Row Marker Cylinder, 6 Row 36"/38" and 8 Row 30"
¾
"-16 O-Ring Ports
Row Marker Cylinder, 4 Row 30"/36"/38" and 6 Row 30"
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA8918
1
Rod Assembly
2
GD12510
1
Gland
3
GD12511
1
Piston
4
G10967
1
Lock Nut, ¾"-16
5
A8775
1
Barrel
(Non-Stock Item)
A
GA8919
-
Cylinder Complete, 2" x 8" (Part Number Stamped On Barrel)
B
GR1529
-
Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper
CYL030(CYL2c)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA9440
1
Rod Assembly
2
GD12510
1
Gland
3
GD12511
1
Piston
4
G10967
1
Lock Nut, ¾"-16
5
A9442
1
Barrel
(Non-Stock Item)
A
GA9443
-
Cylinder Complete, 2" x 201∕16" (Part Number Stamped On Barrel)
B
GR1529
-
Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper
CYL039(CYL3e)
