6 Device function

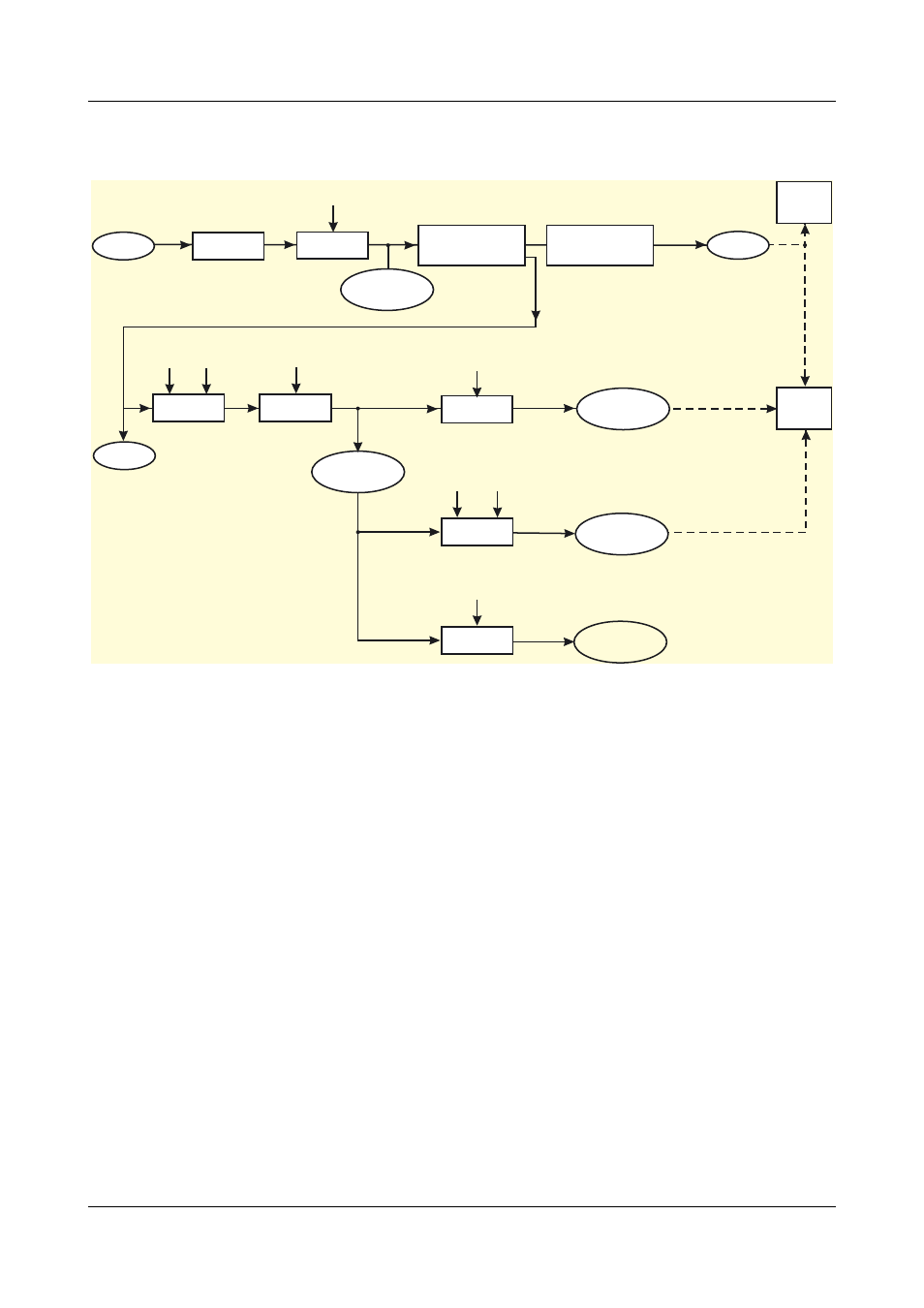

6.3 Data flow: temperature channel
The calculation of the temperature channel is processed every 250 msec.
A/D conversion
with calibration
Emergency
output
Filter
Status
0x6150,Bit0
Temperature
sensor
Scaling Fine calibration
Process value
0x6130
in customer unit
Range
monitoring
Factor
0x6126
Offset
0x6127
Offset
0x6124
Range end
0x6149
Measurement
0x9130
INT32
PDO
output
Decimal point
Decimal places
0x6132
Drag pointer
function
Reset
0x3102
Range start
0x6148
Status
0x6150, Bit1 = OR
0x6150, Bit2 = UR
0x3100 min.
0x3101 max.
Filter constant
0x61A1
Field value
0x6100
temp. in ohms
Sensor monitoring:
sensor fault
Linearization
Pt1000
-200 to 850°C
Temp. in °C
