6 Commissioning/start-up
48
6.9 Setting the output signal scaling
The output signal scaling describes how the measured temperature is "converted" to an output
signal.
Simple example:
Actual
The device has a measuring range (1) from -50 to +150 °C and the output signal 4 to 20 mA
(3).
Set point
The customer wants that the "Customer measuring range“ (2) -50 to +150 °C (100 % from the
measuring range (1)) complies with the 4 to 20 mA (100 %) output signal (3).

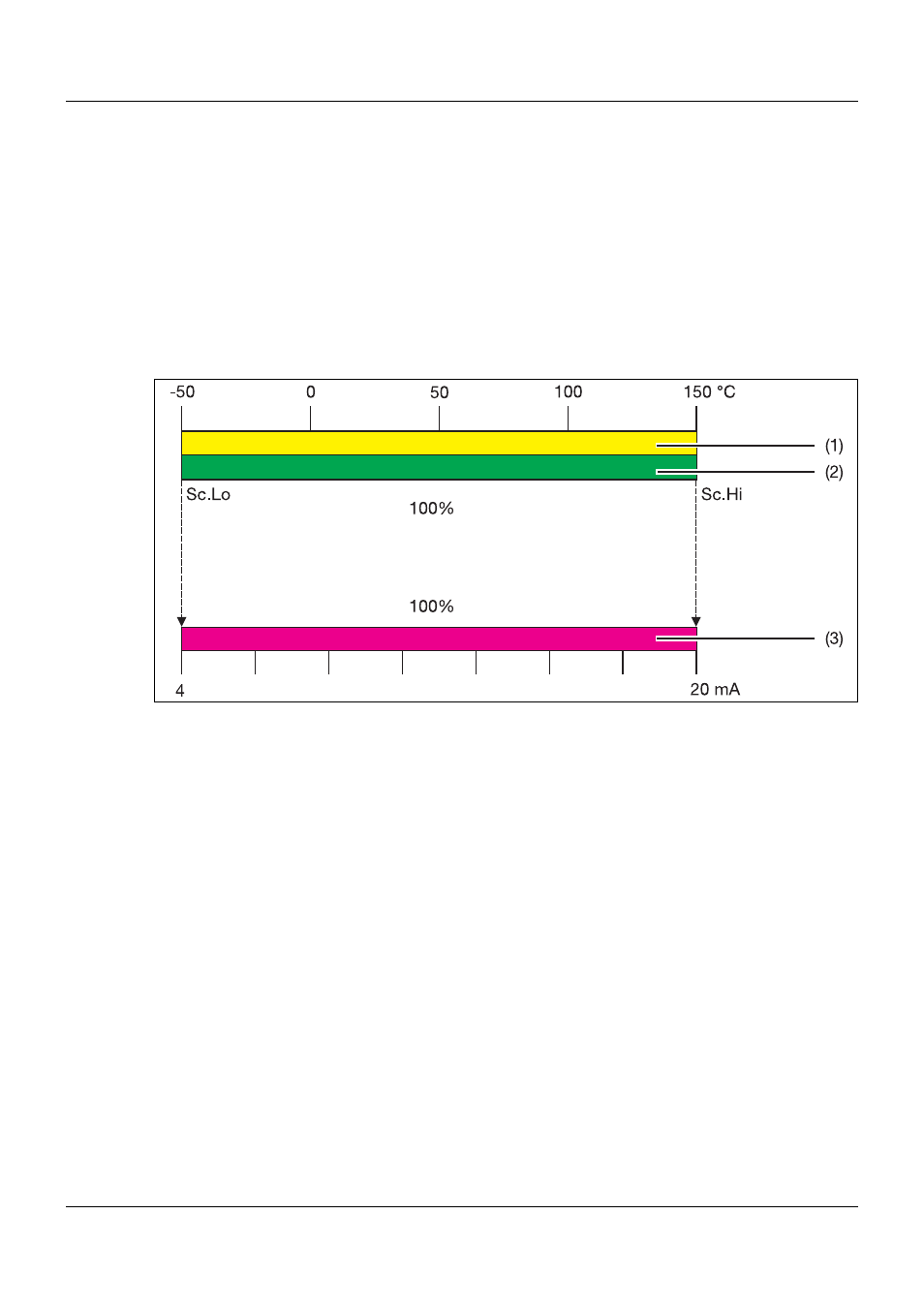

(1) Measuring range (2) Customer specific measuring range
(3) Output signal
