6 Commissioning/start-up

6.8

Setting the output signal (S.Type)

How to proceed:

6.8.1

Output performance

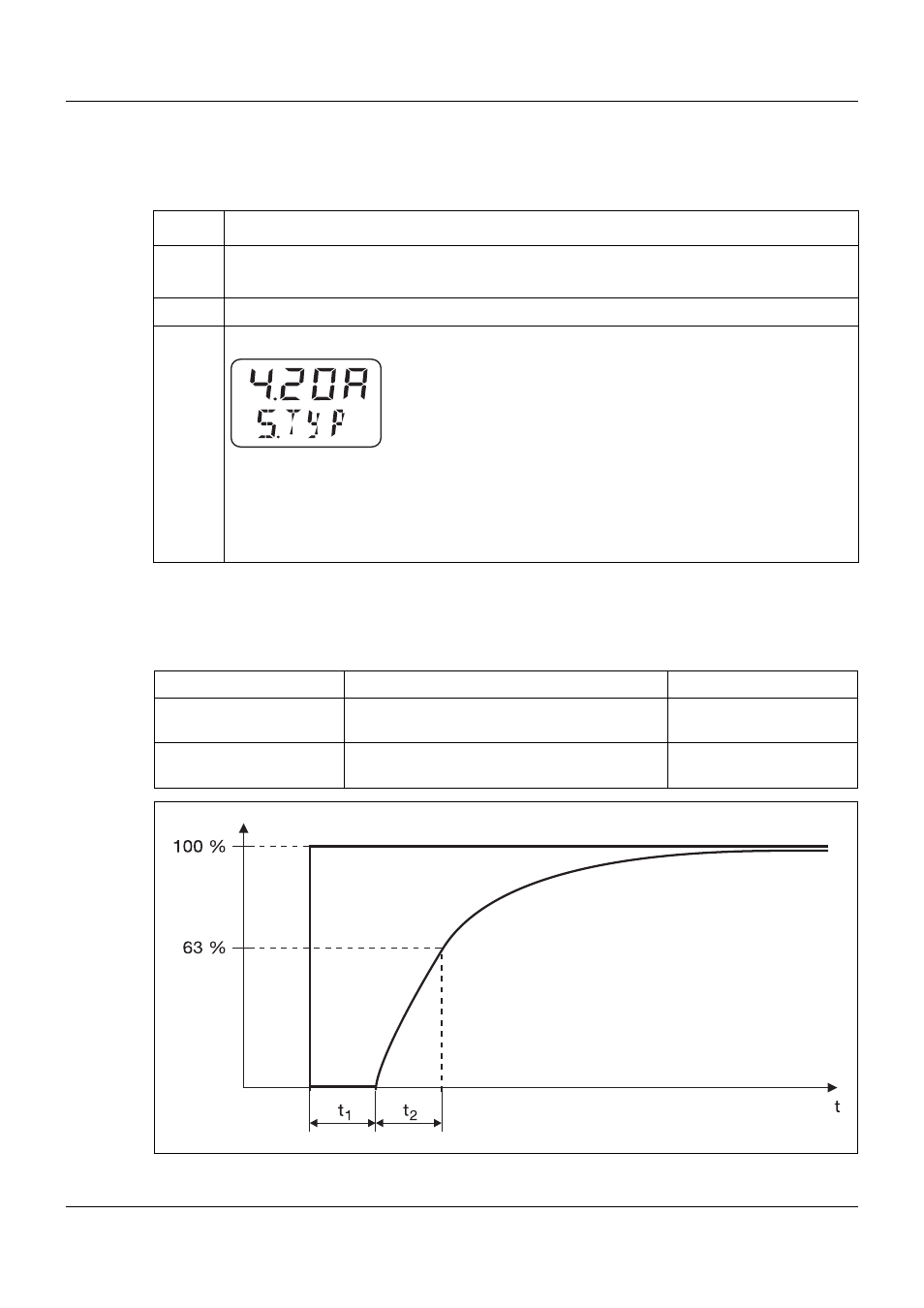

The output signal behavior in the event of an abrupt change of the input signal is specified in
the following table and the figure.

Step

Activity

1

Unlock the device.

Chapter 6.2 "Unlocking the device (enter the code).", page 42

2

"Turn" until "S.Type" appears in the bottom line.

3

"Press"

Setting:
4.20A = Output signal 4 to 20 mA
0.20A = Output signal 0 to 20 mA
0.10U = Output signal 0 to 10 V

Output

Dead time t1

Time constant t2

Current output

<

200 ms at 50 Hz mains frequency

<

320 ms at 60 Hz mains frequency

70 ms

Voltage output

<

200 ms at 50 Hz mains frequency

<

320 ms at 60 Hz mains frequency

80 ms
