1 Introduction

8

1.5

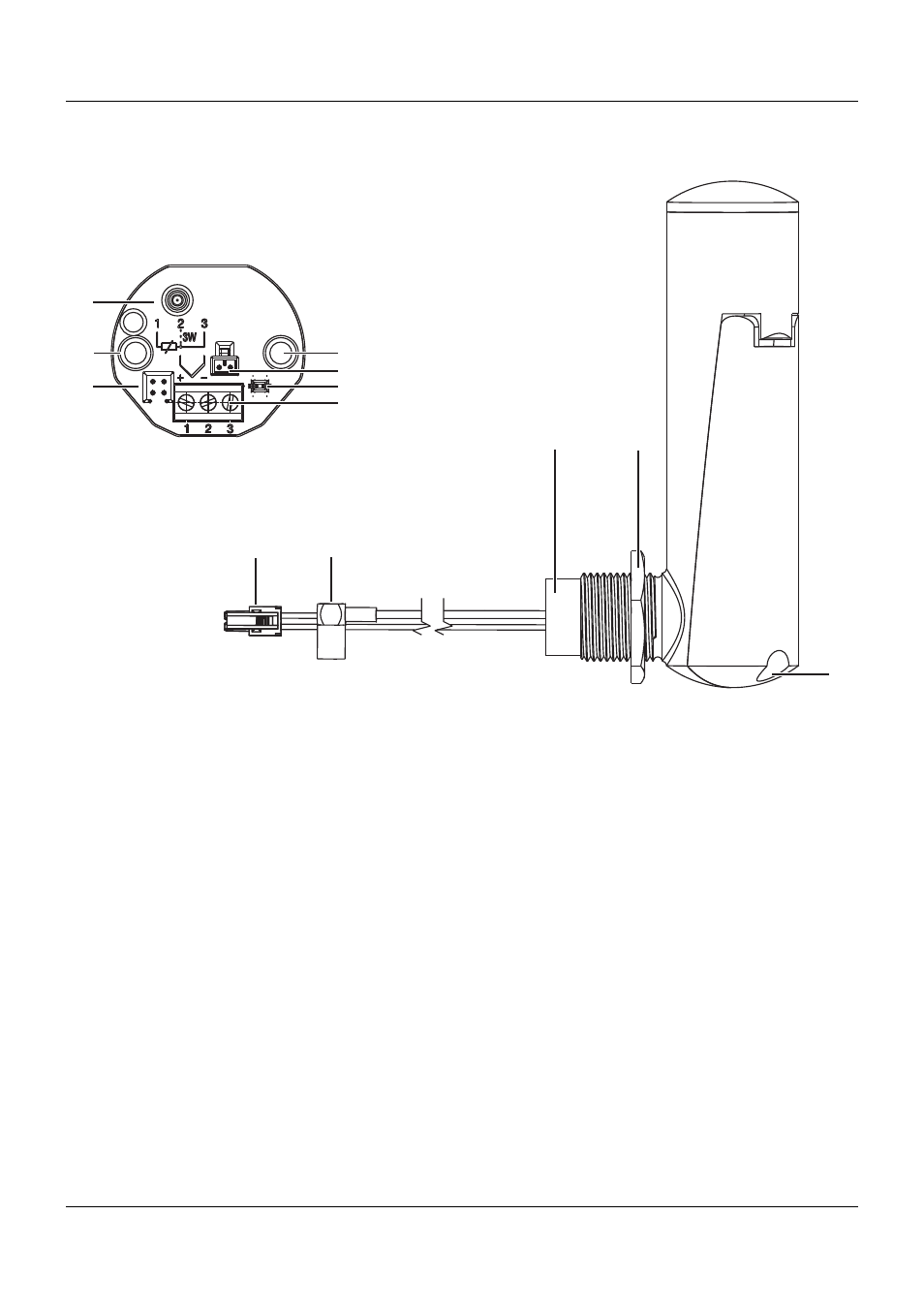

Connection elements and connectors

(1)

(6)

(6)
(2)

(5)

(4)

(7)

(8)

(3)

(9)

(10)

(11)

(1) SMB antenna connector (antenna connection)

(7) Voltage supply socket (battery connection)

(2) Voltage supply connector (battery connection)

(8) SMB antenna socket (antenna connection)

(3) Cable guide for antenna cable and voltage supply

(9) Seal

(4) Probe connection

(10) Locknut

(5) Setup connector

(11) Battery lid screw

(6) Fastening holes for installation in the connection

head, form B
