7 Setup program

USB/TTL

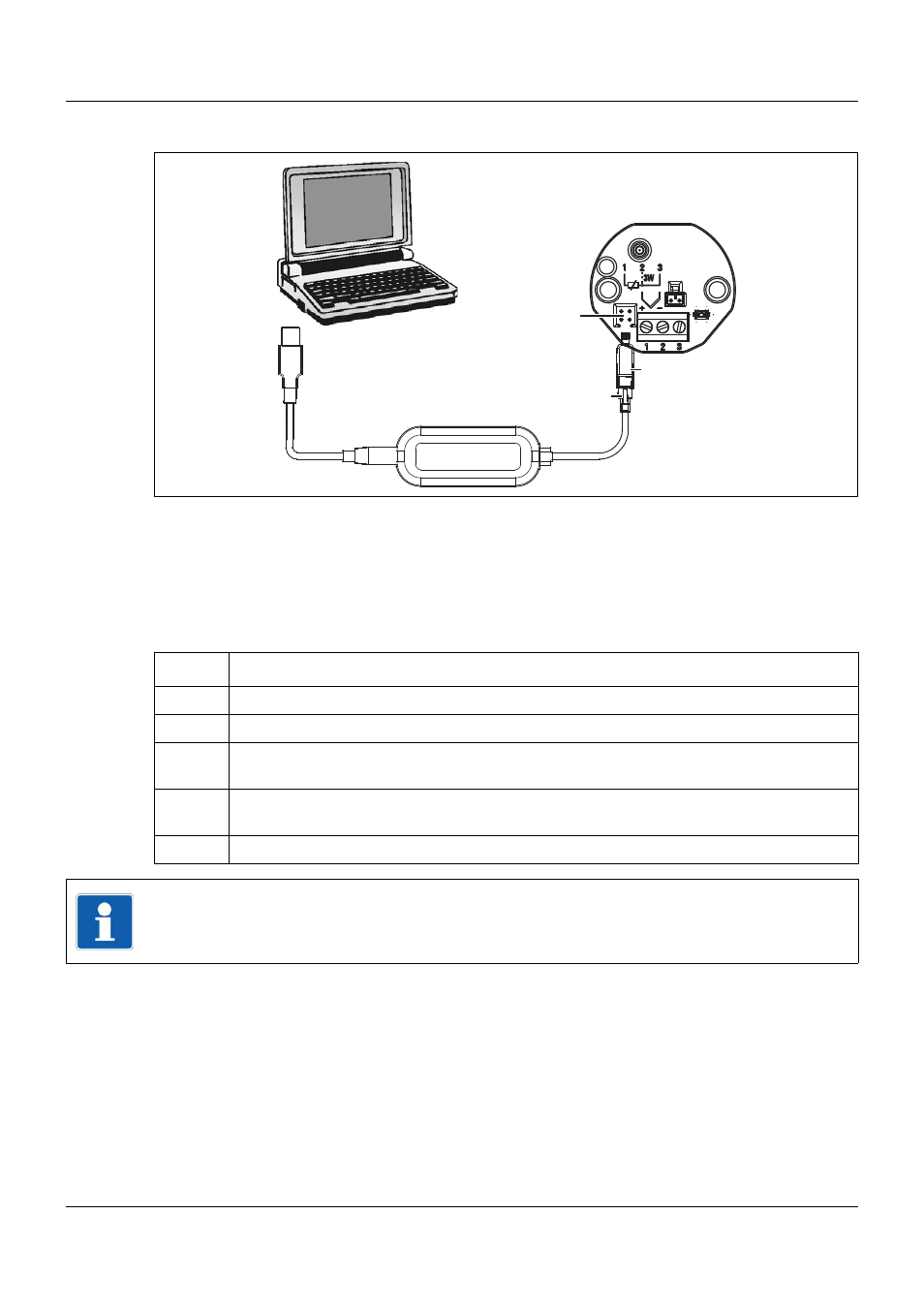

For the setup via the USB/TTL converter, establish the following connections:

(1)

Laptop/PC

(5)

Modular jack RJ-45

(2)

USB connector

(6)

Adapter of the modular cable

(3)

USB socket

(7)

Adapter socket, 4-pin

(4)

USB/TTL converter

(8)

Probe interface

Step

Activity

1

Insert the USB connector (2) of the USB cable into the laptop/PC (1).

2

Insert the USB bush (3) of the USB cable into the connector of the USB/TTL converter (4).

3

Connect the RJ-45 connector (5) of the modular line to the RJ-45
socket of the USB/TTL converter (4).

4

Connect the 4-pin adapter socket (7) to the adapter of modular
line (6).

5

Connect the adapter socket, 4-pin, (7) to the probe interface (8).

USB/TTL

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

TIP!
For probe configuration, ensure that the probe is connected to the voltage supply of the an-
tenna-battery case.
