5 Installation

20

5.2

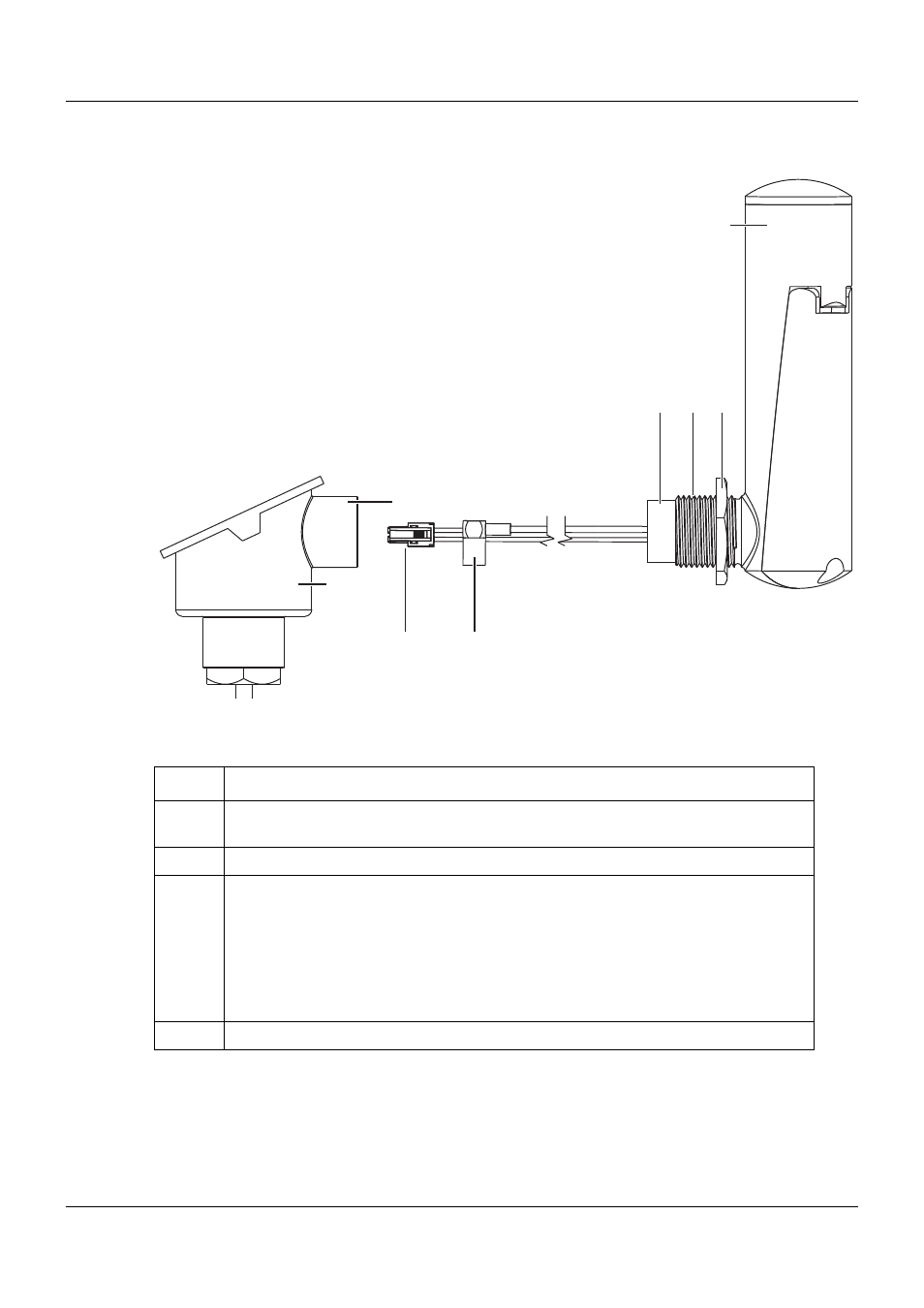

Installing the antenna-battery case

Proceed as follows to install the antenna-battery case:

Step

Activity

1

Guide the voltage supply socket (B) and SMB antenna socket (C) of the antenna-
battery case (A) through the opening (G) of the connection head (H).

2

Push seal (D) into the opening (G).

3

Screw the thread (E) into the opening (G). Turn the antenna-battery case until it
makes contact with the seal (D). To ensure impermeability, continue turning for at
least 1/2 to max. 1 1/2 revolutions.
For an optimum transmission performance, the antenna-battery case should be posi-
tioned vertically (to the top) independent of the connection head position. Ensure
that the cables also turn when the sockets (B) and (C) are turned while installing the
antenna-battery case. Avoid twisting of the cables.

4

Tighten the locknut (F) and secure the antenna-battery case against loosening.

(H)

(B)

(C)

(G)

(D)

(F)

(A)

(E)
