3 installing the transmitter, Installing the transmitter, 5 installation – JUMO 707060 Wtrans B - Programmable Head Transmitter with Radio Transmission Operating Manual User Manual
Page 21

21
5 Installation
5.3

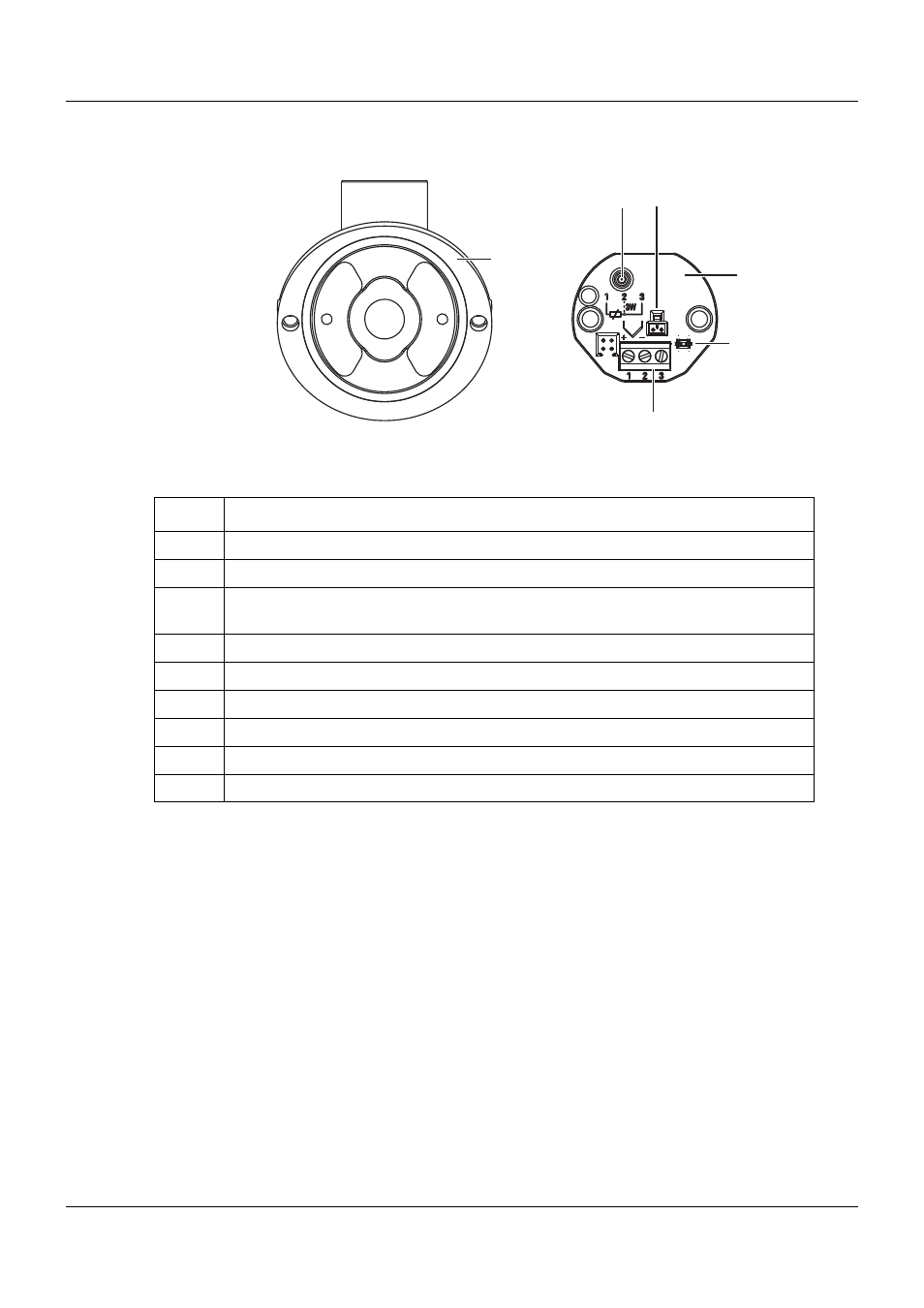

Installing the transmitter
Proceed as follows to install the transmitter:
Step
Activity
1
Let all connection cables hang out of the connection head.
2
Insert the transmitter (A) into the connection head (D).
3
Fit the transmitter (A) in the connection head (D) using the screws and pressure
springs (included in the delivery scope).
4
Connect the probe cables to the connector (C) as per connection diagram.
5
Guide the antenna and voltage supply connection clockwise in a large arc.
6
Connect the SMB antenna socket to the connector (E) without tensile stress.
7
Connect the voltage supply socket to the connector (F) without tensile stress.
8
Insert the antenna and voltage supply connection into the cable guide (B).
9
Fit the lid of the connection head.
(B)
(E)
(A)
(F)
(D)
(C)
