2 formula, 7 configuration – in setup program only – JUMO 705020 mTRON T - Analog Input Module, 4-Ch. Operating Manual User Manual
Page 57

57
7 Configuration – in setup program only
7.1.2
Formula
Customer-specific linearization is specified using a 4th order polynomial. The polynomial is cal-
culated for the entire linearization range.
Polynomial formula: y = X4*x
4
+ X3*x
3
+ X2*x
2
+ X1*x + X0

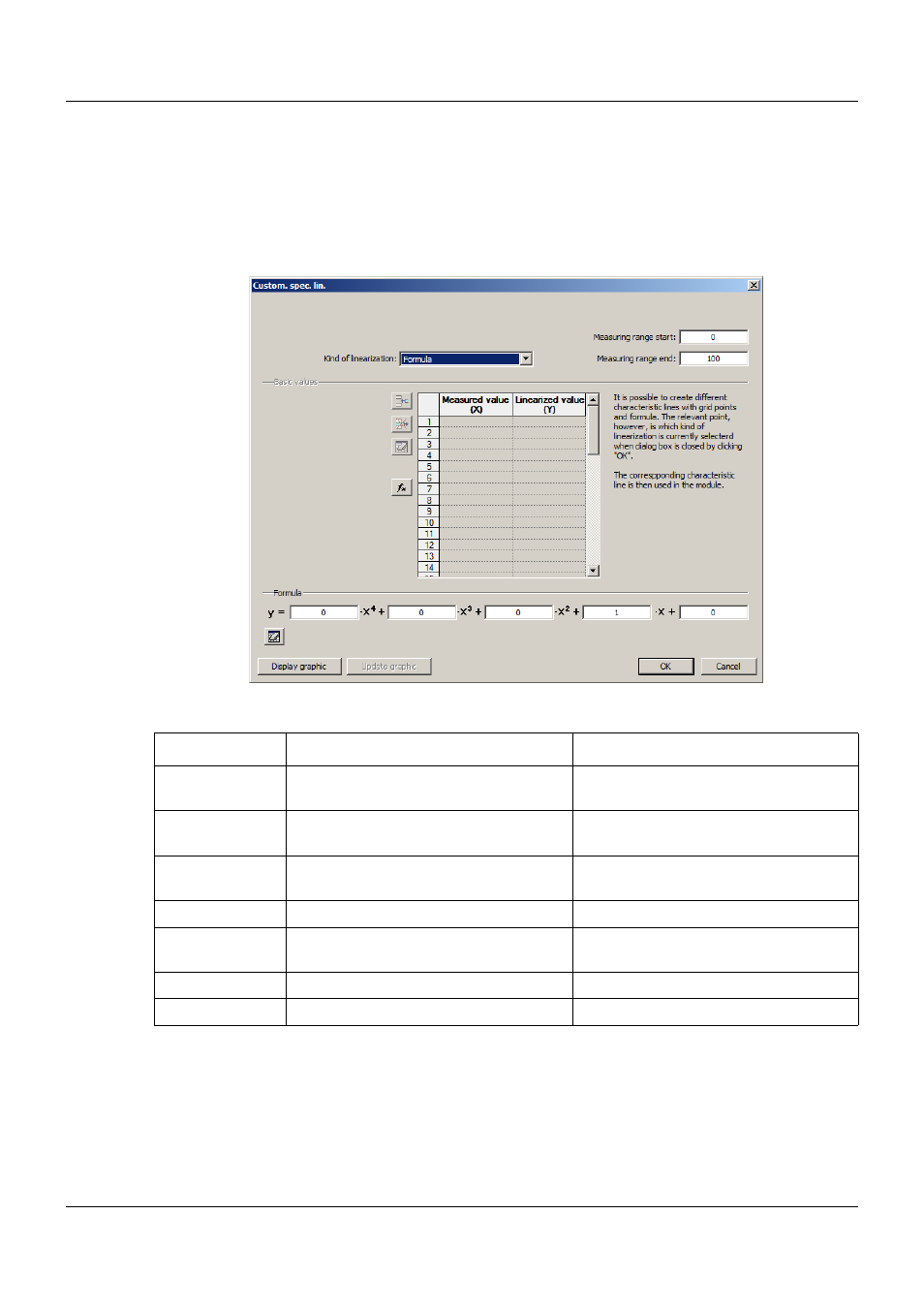

Setup dialog
Parameter
The co-domain of the linearization (linearized values, y-axis) is checked in the module and
limited as follows:
Co-domain lower limit = Ymin - 0.0125 × (Ymax - Ymin)
Co-domain upper limit = Ymax + 0.03125 × (Ymax - Ymin)
Parameter
Selection/settings
Description
Measuring range
start (Ymin)
-99999 to 0 to +99999
Start value of the y-axis
Measuring range
end (Ymax)
-99999 to 100 to +99999
End value of the y-axis
X0
-99999 to 0 to +99999
Absolute component of the polynomial
(point of intersection with the y-axis)
X1
-99999 to 1 to +99999
Coefficient of the linear component (x)
X2
-99999 to 0 to +99999
Coefficient of the quadratic
component (x
2
)
X3
-99999 to 0 to +99999
Coefficient of the cubic component (x
3
)
X4
-99999 to 0 to +99999
Coefficient of the quartic component (x
4
)
