29

5 Operation

5.1

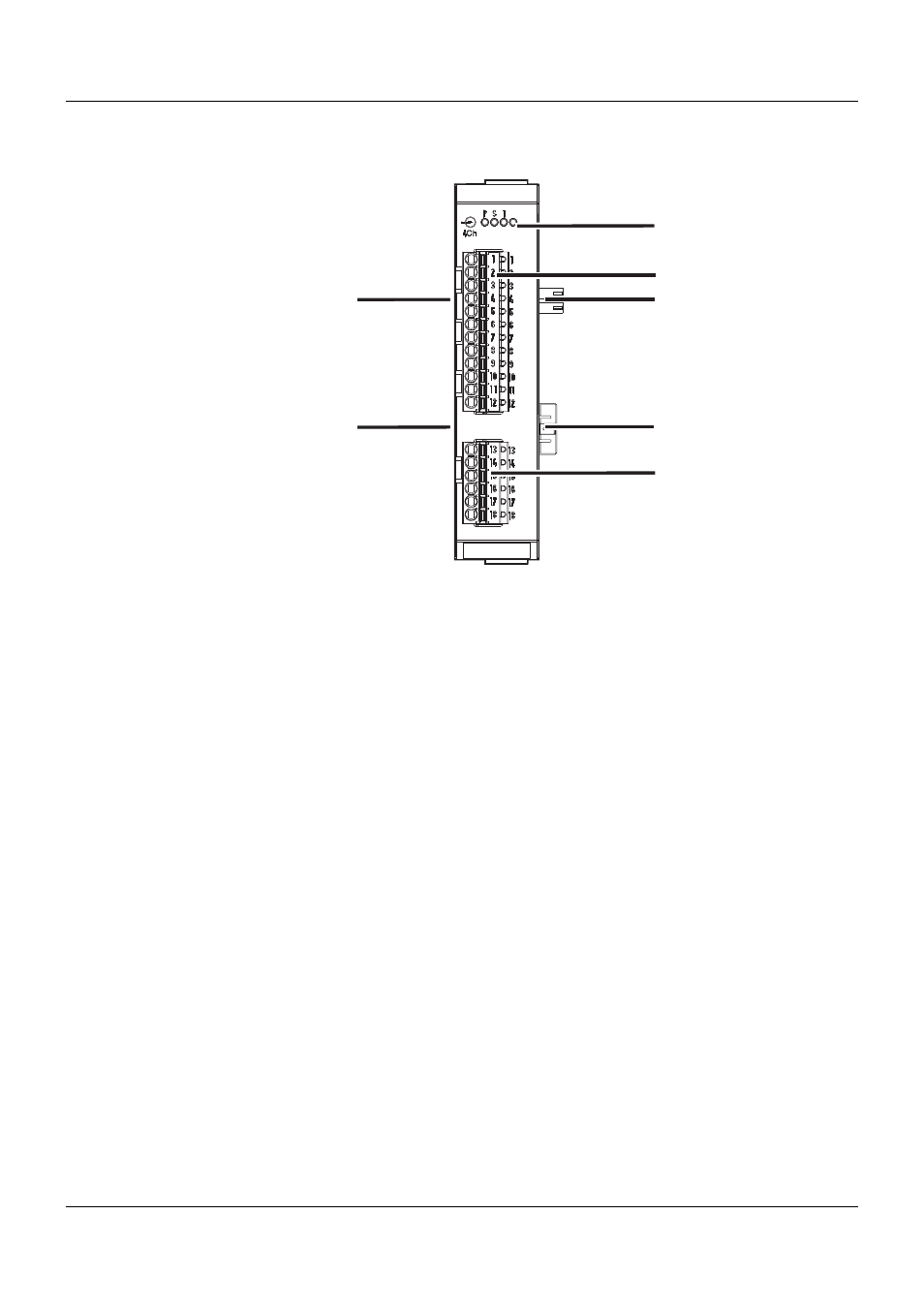

Display and connection elements

(1) Status displays (LED)

P = Voltage supply
S = Status
1 = Digital input
(LED is lit: Active)

(2) Analog input 1 to 3
(3) Voltage supply Out, DC 24 V
(4) Side system bus Out
(5) Analog input 4;

digital input

(6) Side system bus In
(7) Voltage supply In, DC 24 V

(1)

(2)
(3)

(4)

(5)

(7)

(6)
