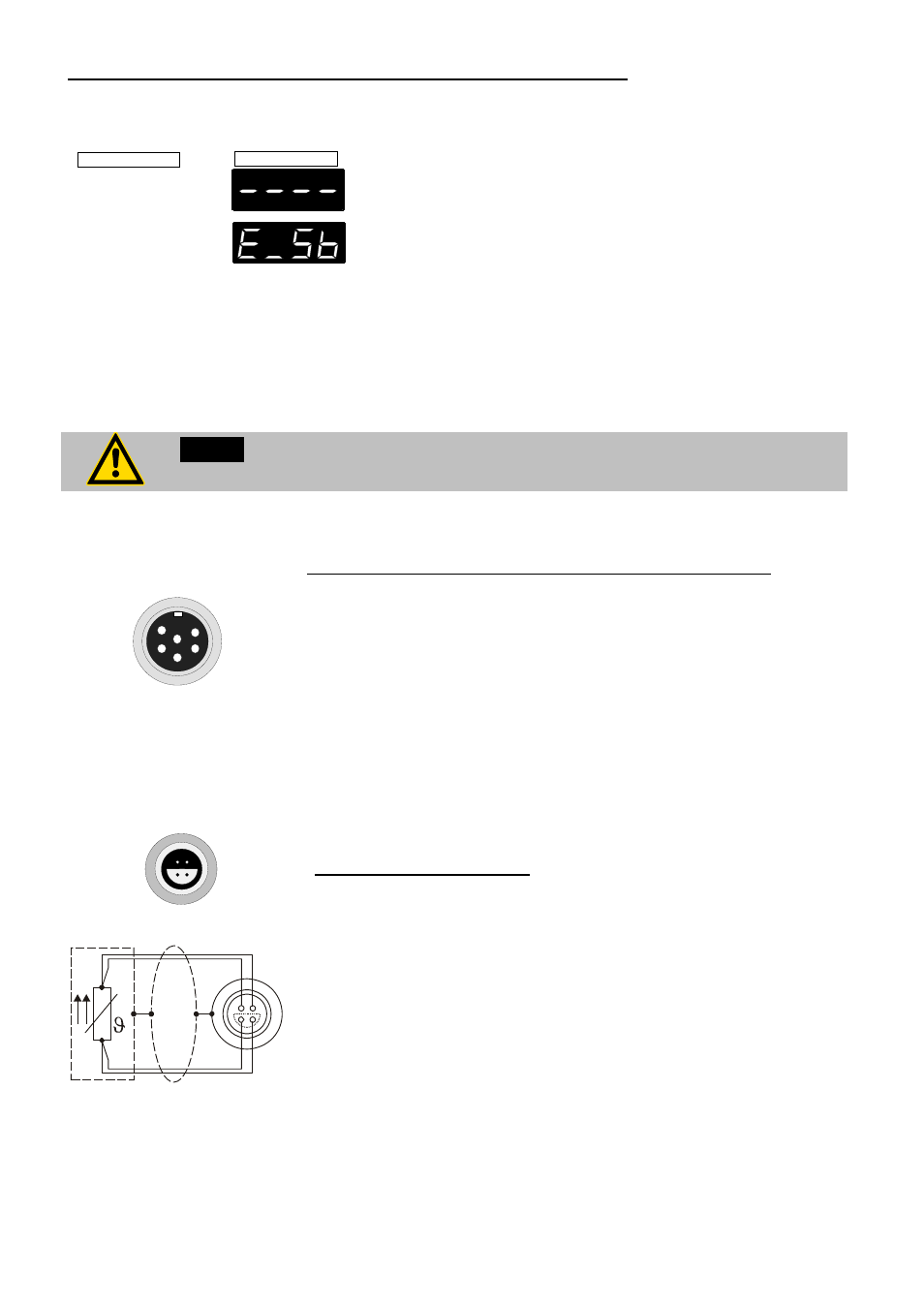

Electrical connections
34
7.1.
Other error messages
ACTUAL
SET
Incorrect/invalid entry. Value too small or too large, or
function not available.
Under menu item E_Sb the parameter is set to 1, and
the connection between Pin 2 and Pin 3 of the stand-
by connector is interrupted (see page 36).
8. Electrical
connections
Notice:
Use shielded cables only.
The shield of the connecting cable is electrically connected to the plug housing.
Programmer input / Temperature recorder output (O)
1
2
3
4
5
6
Pin
Signal
.
1
Output: temperature external sensor
10 mV/K
2
Output: calculated temperature in respect
to control ratio for feed/return temp.
10 mV/K
3
Gnd for outputs
0 V
4
Input: programmer
0 to 24 mA
or
0
to
10
V
5 Output: setpoint temperature
10 mV/K
6 Gnd for progammer
0 V
Connector for external Pt100 sensor (N)
1
2
3
4
1
4
2
3
Shield
Plug
Look on
soldering side.
Pt100
Pin assignment:
Pin
Signal
1
Current+
2
Voltage+
3
Voltage-
4
Current-
Alarm output (M)
