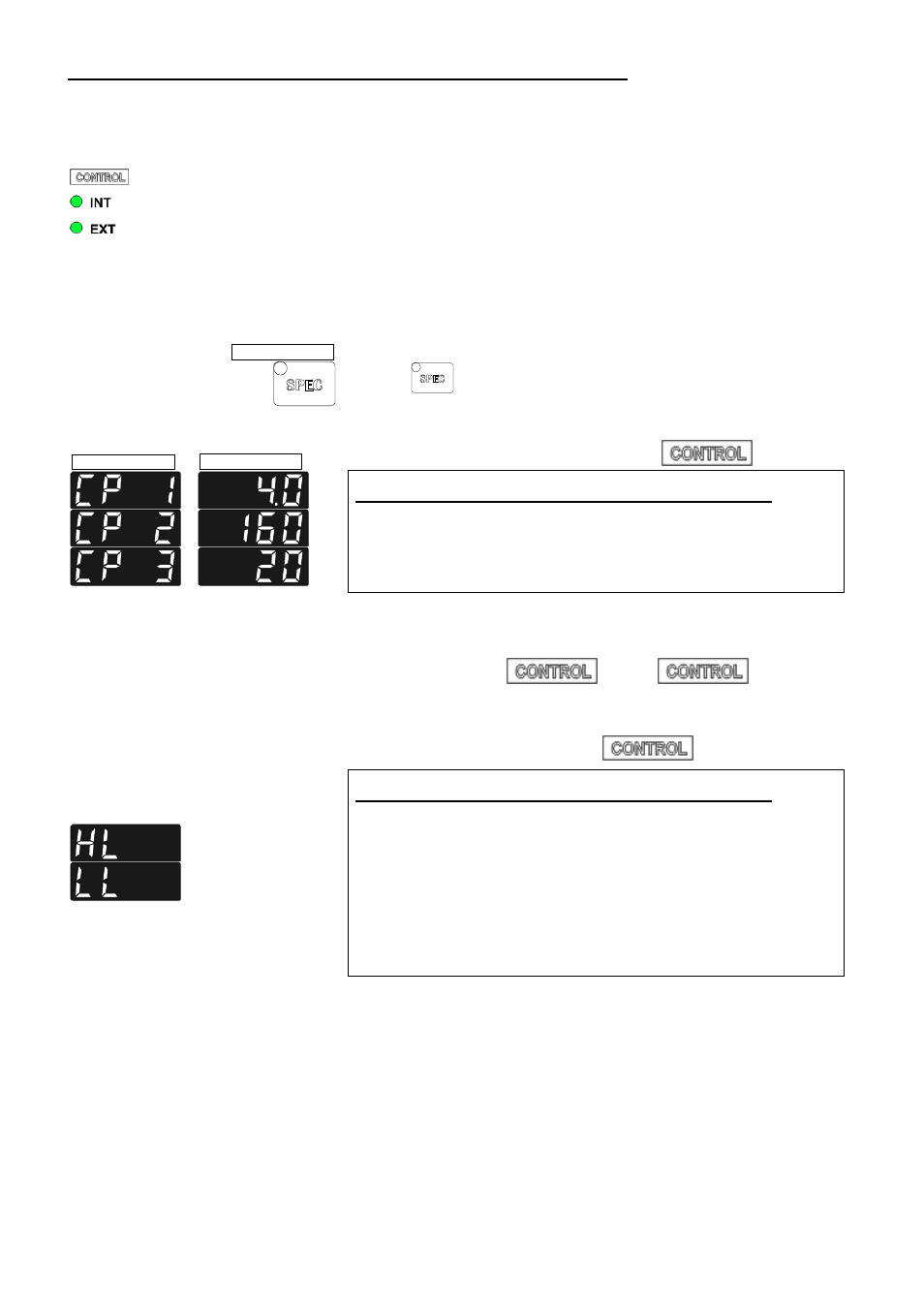

Manual operation

30

6.4.

PID control parameters

For internal and external control two separate parameter
sets are available.
The PID control parameters can be adapted to the
requirements of the controlled member.
The values are preserved after switching off the
recirculating cooler.

SET



ACTUAL

SET













 The control parameters are indicated by operating the

key

(5.1).


Indications in case of internal control

INT:

Parameter Setting

range

CP 1

Xp (example 4.0 K).

0.1 ... 100 K

CP 2

Tn (example 160 s).

1 ... 9999 s

CP 3

Tv (example 20 s).

0 ... 500 s



(Switch-over from

INT to

EXT:

Cont - see page 42)

Indications of external control

EXT:

Parameter Setting

range

CP 4

Xp

0.1 ... 100 K

CP 5

Tn

1 ... 9999 s

CP 6

Tv

0 ... 500 s

CP 7

Xpu (Cascade control)

1 ... 10 K

HL

Max.internal temperature

-25 ... 85 °C

LL

Min.internal temperature

-25 ... 85 °C
