SQM-160 Operating Manual
4.5 Films Menu
On the main screen in the toolbar under Films the film menu can be found. It allows
films to be created, edited, and saved to the films database. Also, it allows films to
be transferred to/from an attached SQM-160. The films are stored in a Microsoft
Access database, Monitor.mdb, in the SQM160 Comm program directory.

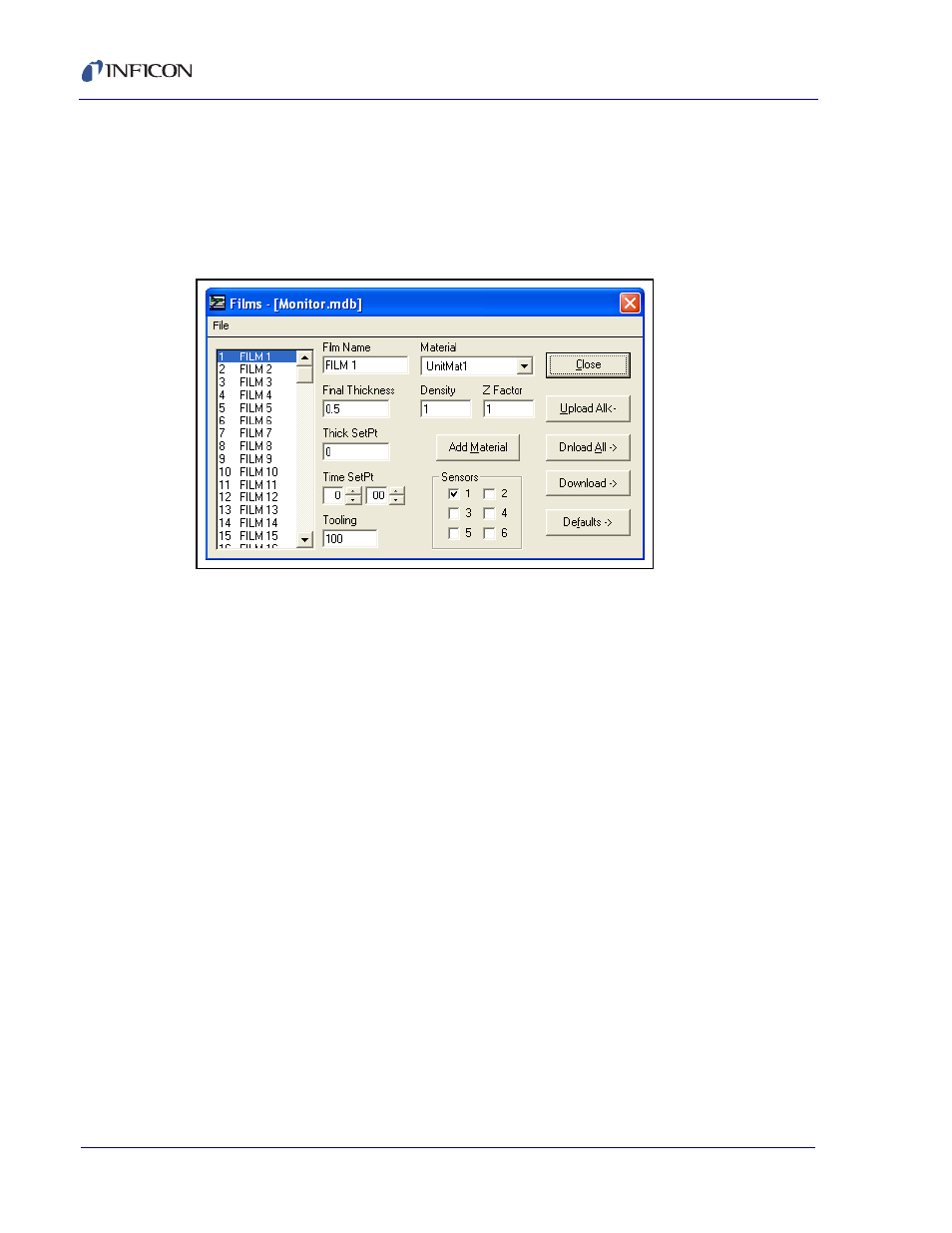

Figure 4-4 Films Dialog Box
File . . . . . . . . . . . . . . . . . . . . . . . . . . This tool bar option allows for the opening of
database (.mdb) for transfer to the SQM-160.
Films List . . . . . . . . . . . . . . . . . . . . Lists the database of films available for
editing and download. When films are
uploaded from the SQM-160, they are
automatically added to the database.
Download . . . . . . . . . . . . . . . . . . . . Transfers the film currently being viewed in
detail to the SQM-160. Films stored on the
SQM-160 are overwritten!
Download all . . . . . . . . . . . . . . . . . . Transfers all films to the SQM-160. Films
stored on the SQM-160 are overwritten!
Upload all . . . . . . . . . . . . . . . . . . . . Transfers films stored in the SQM-160 to the
download list. They are automatically saved
to the database also. This will overwrite
existing database films with the same name.
Defaults . . . . . . . . . . . . . . . . . . . . . . Clears the SQM-160 films and system
parameters to default values.
Film Parameters pertain to the film that is selected in the Database Films list. You
can edit these parameters:
