13. Accessories
13.1 Electrical
Accessories
13.1.1 For the output model with 2 switching points and
the model with 1 switching output plus analogue output
(see model code, output 2 and 3)

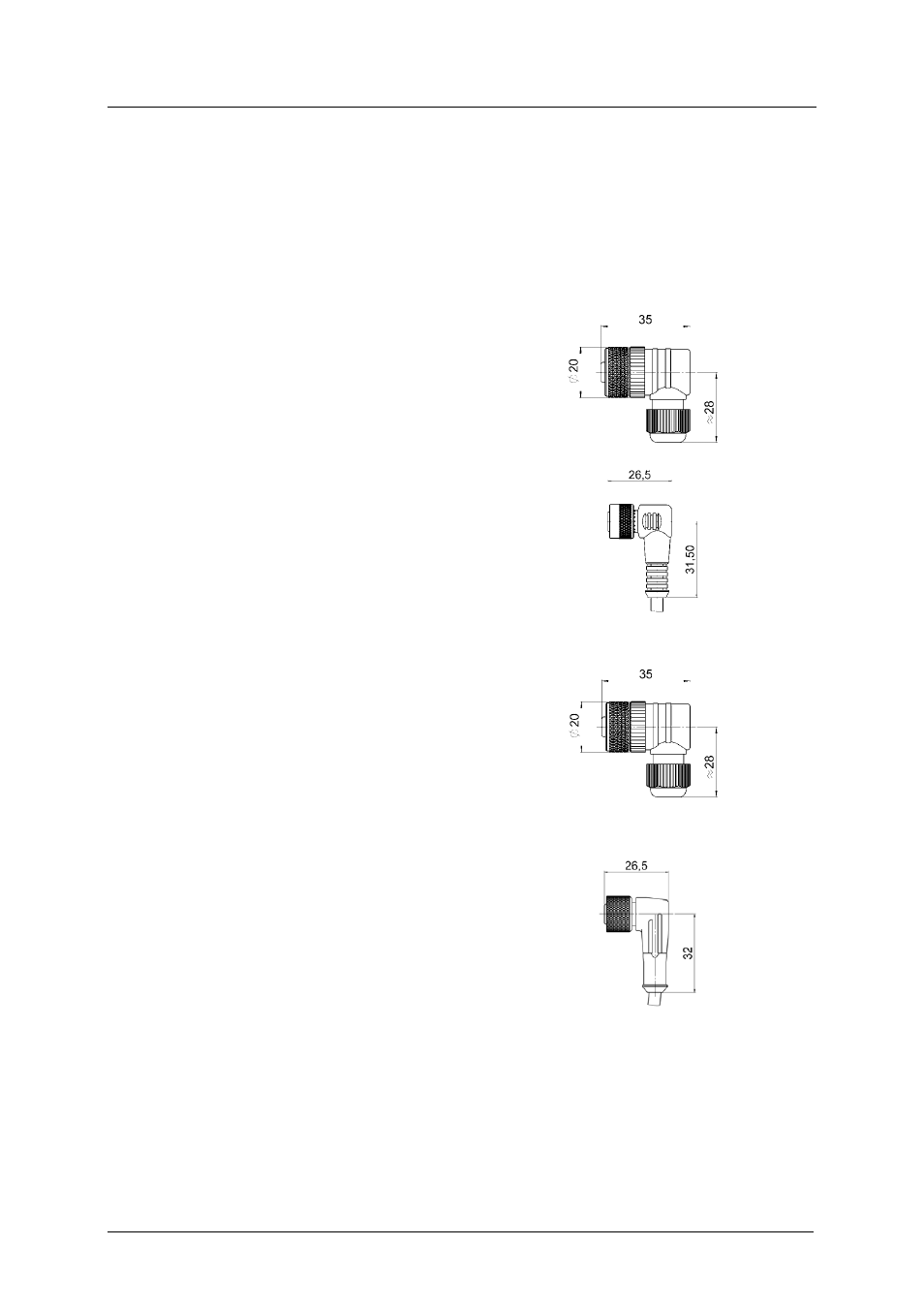

ZBE 06 (4-pole)
Right-angled connector M12x1
Order no.:
6006788
ZBE 06-02 (4-pole)
Right-angled connector M12x1, with 2 m lead
Order no.:
6006790
ZBE 06-05 (4-pole)
Right-angled connector M12x1, with 5 m lead
Order no.:
6006789
13.1.2 For all output models
ZBE 08 (5-pole)
Right-angled connector M12x1
Order no.: 6006786
ZBE 08-02 (5-pole)
Right-angled connector M12x1, with 2 m lead
Order no.: 6006792
ZBE 08-05 (5-pole)
Right-angled connector M12x1, with 5 m lead
Order no.: 6006791
ZBE 08S-02 (5-pole)
Right-angled connector M12x1, with 2 m lead, screened
Order no.: 6019455
ZBE 08S-05 (5-pole)
Right-angled connector M12x1, with 5 m lead, screened
Order no.: 6019456
ZBE 08S-10 (5-pole)
Right-angled connector M12x1, with 10 m lead, screened
Order no.: 6023102
Colour
di
Pin 1: brown
d
Pin 2: white
Pin 3: blue
Pin 4: black
Colour
di
Pin 1: brown
Pin 2: white
Pin 3: blue
Pin 4: black
Pin 5: grey
