ETS 3000 User Manual 05 Sep 2008
6
6.2 Analogue Output
Analogue output signal:
4 – 20 mA or 0 – 10 V
(can be set in the Basic Settings menu)

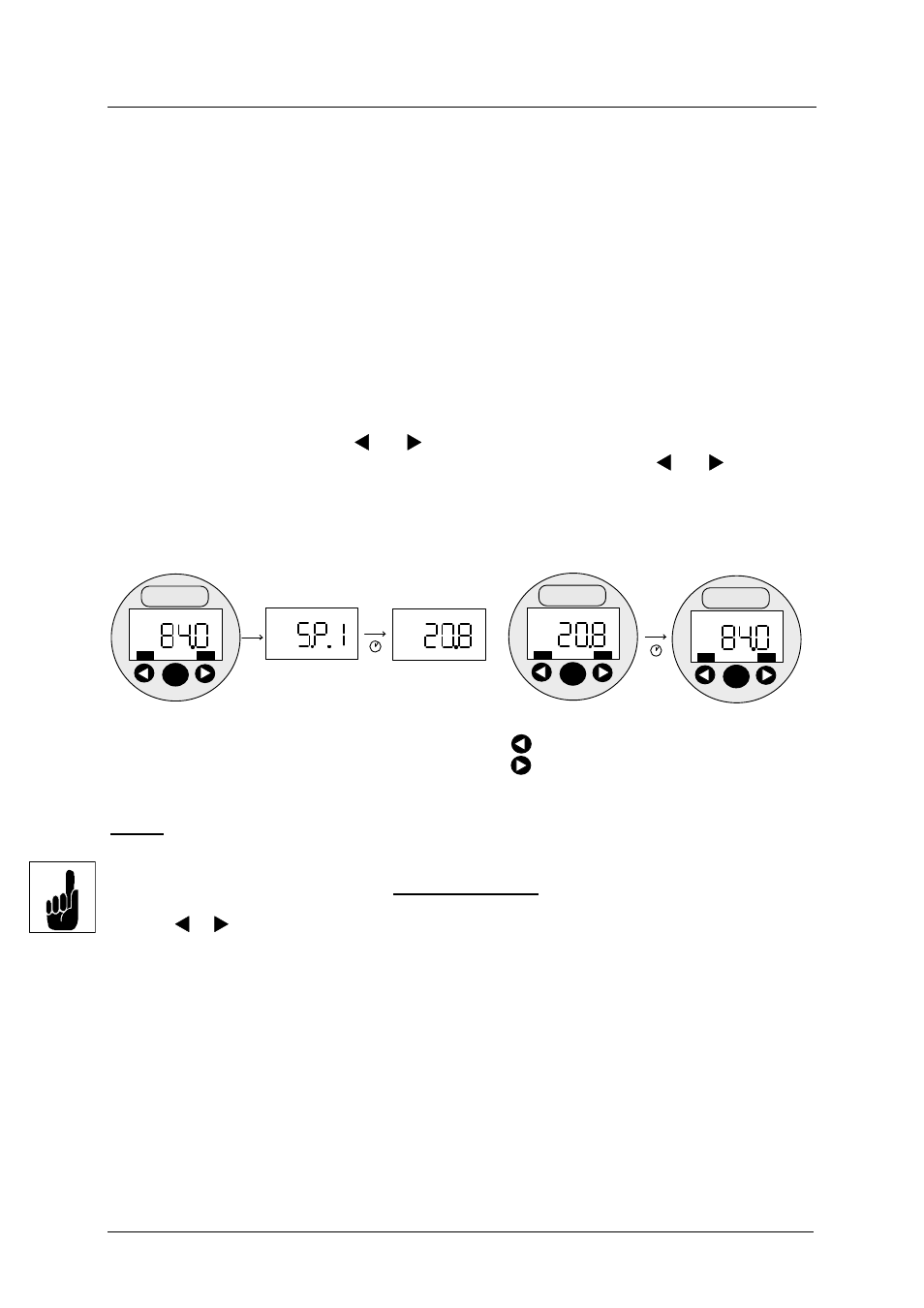

6.3 Setting the Switching Points and Hysteresis or Switching Values for Window
Mode
• Press the mode key.
• S.P.1 or Lo.1 appears in the display.
• Press the mode key repeatedly to scroll through to the required parameter.
(S.P.1, hYS.1, S.P.2 or hYS.2 appears when switching point mode is set; Hi.1, Lo.1, Hi.2
or Lo.2 appears when window mode is set)
• After 2 seconds the actual setting will flash.
• Change the setting using the and keys.
• If necessary, use the mode key to select further parameters, and the and keys to
change the setting.
• The display switches back automatically if no keys have been pressed for 3 s; the settings
are saved.
2 s 3 s
Press the mode key
Display
Adjust the switching point:
until the required
parameter is reached
=decreases value
=increases value
SP1 SP2
HYDAC
mode
°C
*
SP1 SP2
HYDAC
mode
*
°C °C °C
* Actual
switching point 1
SP1 SP2
HYDAC
mode
°C
Notes:
• If "
LOC" appears in the display while attempting to change a setting, this means that
programming is disabled (locked). Corrective action: Set the program enables to " free" .
(see section 8 Programming Enables))
• If the or key is held down while making a change, the value will automatically
advance.
• When a setting has been changed,
PRoG appears briefly in the display when it switches
over to another display mode. The new setting has then been saved.
