ETS 3000 User Manual 05 Sep 2008
7
6.4 Setting Ranges for the Switching Outputs
Switching point
or upper
switching value
Hysteresis or
lower switching
value
Increment*
Integral
sensor
probe
-23.0 .. 100.0 °C
(-10 .. 212 °F)
1.0 .. 123.5°C
(2 .. 222 °F)
0.5 °C
(1 °F)
External
sensor
probe
- 27.0 .. 150.0 °C
(-17 .. 302 °F)
1.0 .. 178.0 °C
(2 .. 320 °F)
0.5 °C
(1 °F)
* All of the ranges indicated in the table can be adjusted by the increments shown.
7. Basic Settings
The ETS 3000 can be adapted to suit the particular application as required by changing the
basic settings. These settings are located in a single menu.
7.1 Changing the Basic Settings
Important note: When the menu is activated, no switching operations are carried out.

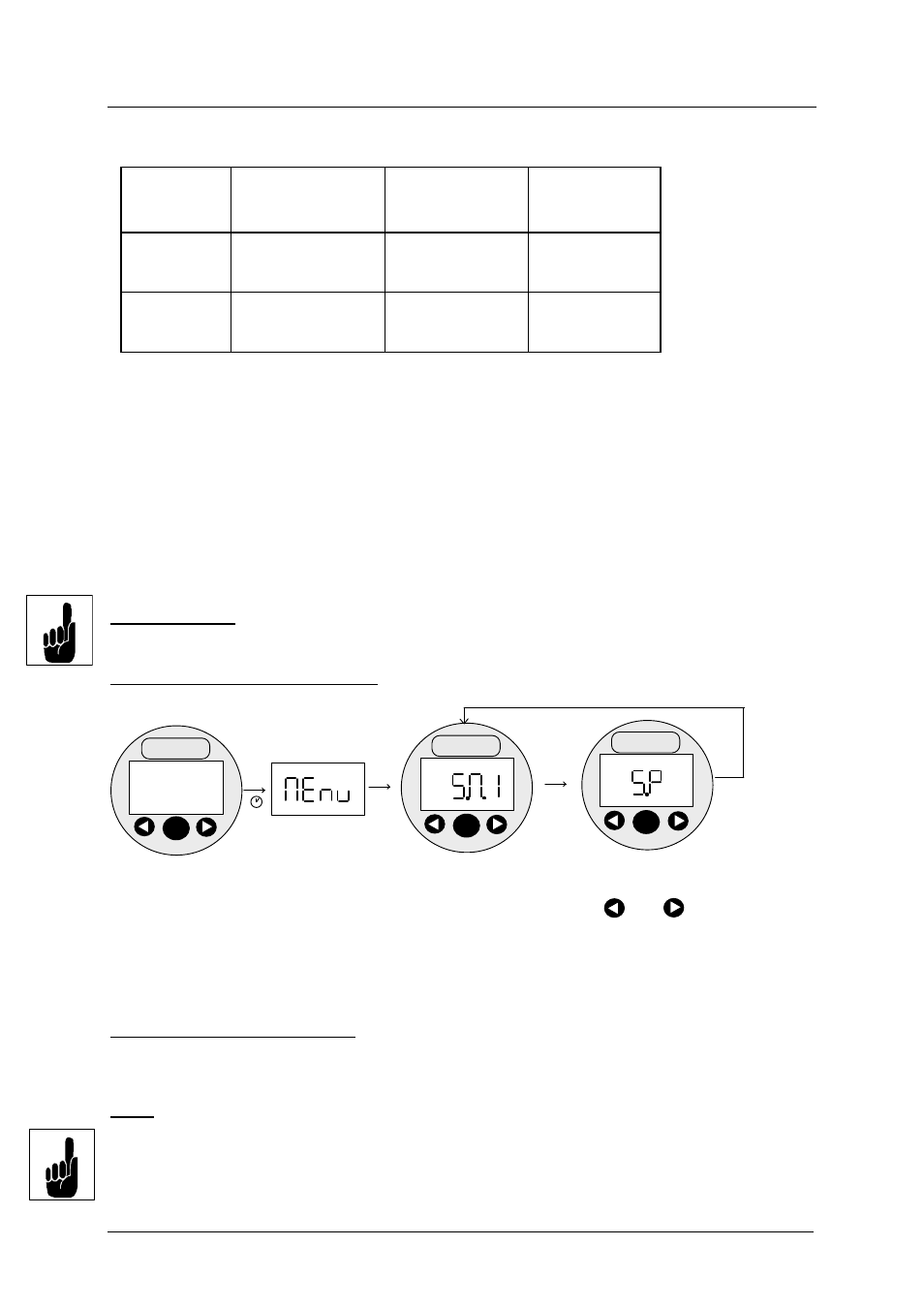

Activating the Basic Settings menu:
3 s
Display
(Release the
mode key.)
Press the mode key and
hold it down. Switch
on the power supply.
until "Menu"
(Hold key down
Hold mode key down
until the required menu item
appears in the display.
(For overview, see section 7.2)
SP1 SP2
HYDAC
mode
*
SP1 SP2
HYDAC
mode
*
appears in the display.)
Then release the key.
SP1 SP2
HYDAC
mode
*
Change the setting using
then select the next menu item.
*
or
To exit the Basic Settings menu:
Select the END menu item, set to YES: the ETS 3000 returns to normal display mode after
2 s.
Note:
• If no key is pressed for approx. 25 seconds, the menu closes automatically. Any changes
that may have been made will not be saved.
