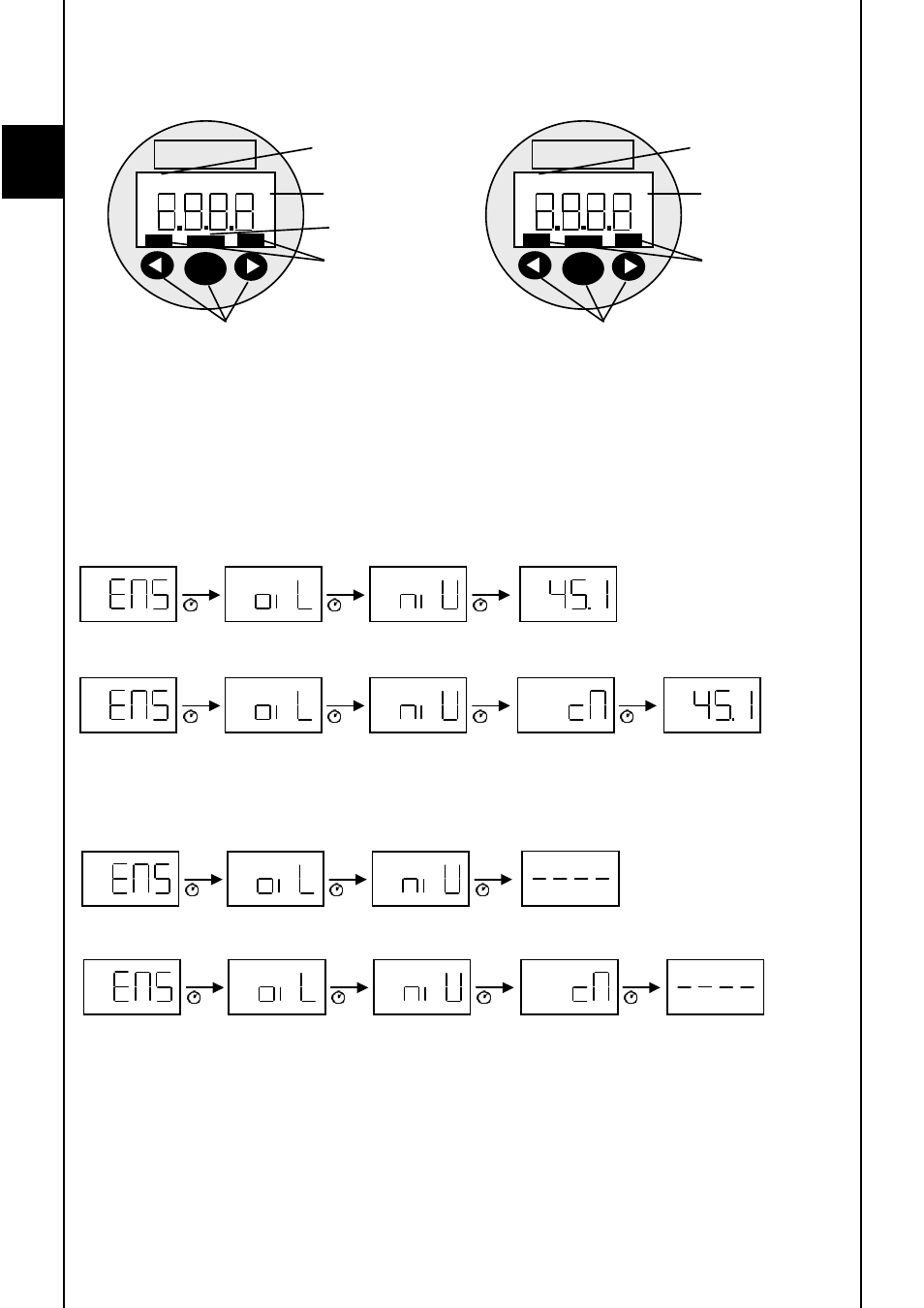

4. Operating keys of the ENS 3000
1 or 2 Switching points 4 Switching points
5. Digital display
After switching on the supply voltage, "ENS" appears briefly in the display. The
display then indicates which parameter (fluid level or temperature) will be
displayed and starts to indicate the actual value (basic setting).
For 1 or 2 Switching points
For 4 Switching points
If the level exceeds or is lower than the measuring zone of the electronic level
sensor, the following sequence is displayed:
For 1 or 2 Switching points
For 4 Switching points
In the basic settings the display can be altered as follows:
• Display of the peak fluid level measured "n.TOP"
Continuously displays the highest fluid level measured in the system since the
unit was last switched on or reset.
HYDAC
mode
1 2 3 4
°C °F
SP1 SP2
indicates if
temperature in °C or °F
4-digit
digital display
LED-Display of
the active switching point
Keys for setting
switching points, switch-back points
and additional functions
HYDAC
mode
cm
°C °F
SP1 SP2
indicates if
temperature in °C or °F
4-digit
digital display
Display indicating
fluid level unit (cm/inch)
LED-Display of
the active switching point
Keys for setting
switching points, switch-back points
and additional functions
2s 2s 2s 2s
2s 2s 2s 2s
Flashing display
2s 2s 2s
Flashing display
2s 2s 2s
