HYDAC ENS 3000 - Manual (Page 25)

E
25

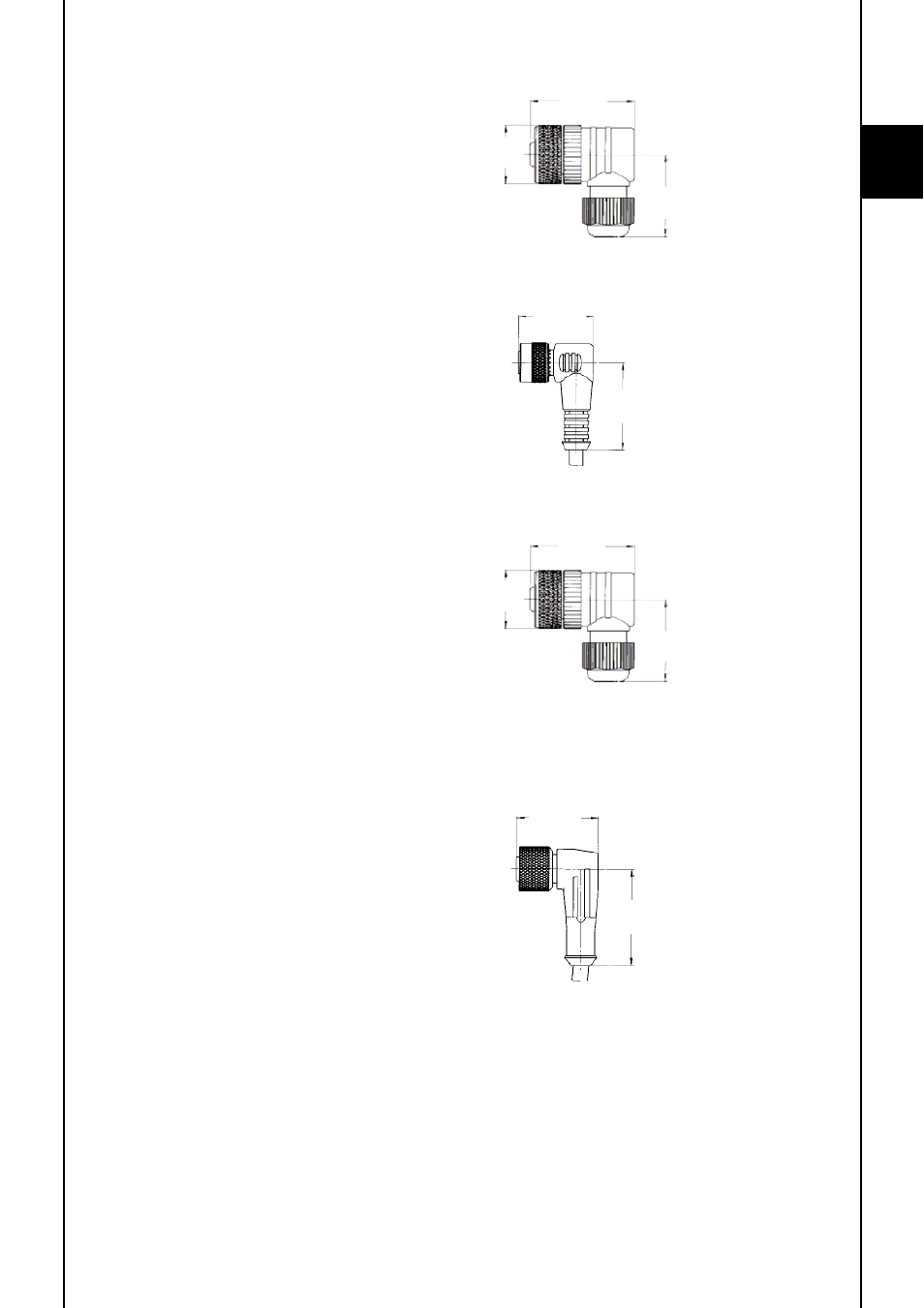

14. Accessories
14.1. ELECTRICAL CONNECTORS
14.1.1 For use with output options
"2" and "3"
ZBE 06
(4 pole)
M12x1 right-angle connector
Order no.: 6006788
ZBE 06-02
With 2m cable
Order no.: 6006790
ZBE 06-05
With 5m cable
Order no.: 6006789
Colour code:
Pin 1:
brown
Pin 2: white
Pin 3: blue
Pin 4: black
14.1.2 For use with output options
"2", "3" and "5"
ZBE 06
(5 pole)
M12x1 right-angle connector
Order no.: 6006786
ZBE 08-02
(5 pole)
With 2m cable
Order no.: 6006792
ZBE 08-05
(5 pole)
With 5m cable
Order no.: 6006791
ZBE 08S-02
(5 pole)
With 2m screened cable
Order no.: 6006755
ZBE 08S-05
(5 pole)
With 5m screened cable
Order no.: 6006756
ZBE 08S-10
(5 pole)
With 10m screened cable
Order no.: 6023102
Colour code:
Pin 1:
brown
Pin 2: white
Pin 3: blue
Pin 4: black
Pin 5: grey
&0.79“
(20mm)
1.10“
(28mm)
1.38“
(35mm)
1.04‘‘
(26.5mm)
1.26‘‘
(32mm)
&0.79“
(20mm)
1.10“
(28mm)
1.38“
(35mm)
1.04‘‘
(26.5mm)
1.24‘‘
(31.50mm)
