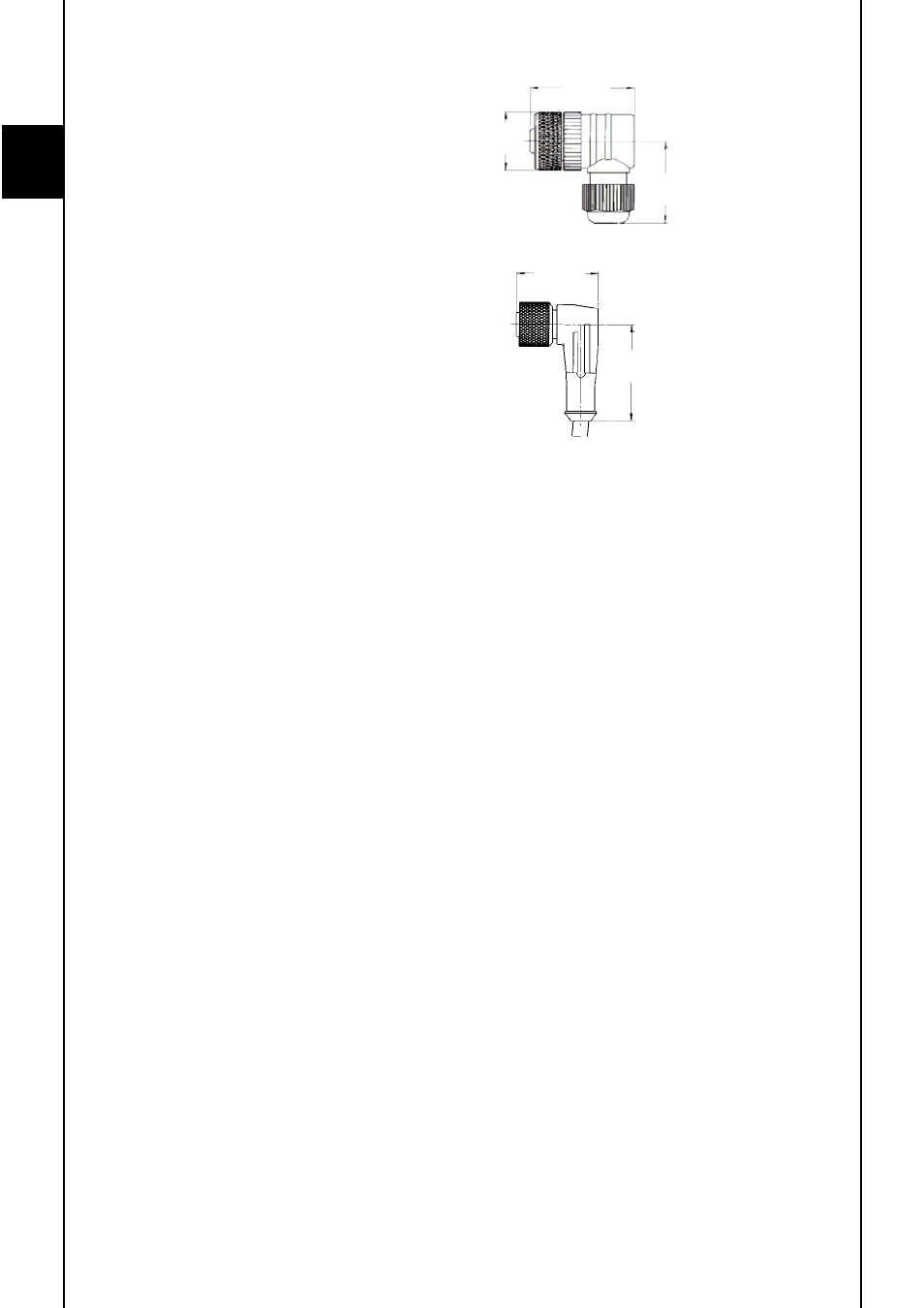

14.1.2 For use with output option "8"
ZBE 0P
(8 pole)
M12x1 right-angle connector
Order no.: 6055444
ZBE 0P-02
(8 pole)
with 2m cable
Order no.: 6052697
ZBE 0P-05
(8 pole)
with 5m cable
Order no.: 6052698
Colour code::
Pin 1: white
Pin 2: brown
Pin 3: green
Pin 4: yellow
Pin 5: grey
Pin 6: pink
Pin 7: blue
Pin 8: red
&0.79“
(20mm)
1.10“
(28mm)
1.38“
(35mm)
1.10“
(28mm)
1.22‘‘
(31mm)
