Accessories, spare parts
Accessories, spare parts
104
105
Order description
Position
Order No.
Piece at
delivery
Insert cold trap
1
514-00501-00
1
Centering ring
2
23-30-01-04-88
1
Seal G5 (silicone)
3
23-30-01-01-88
(1)
Gasket G5
3
23-30-01-01-39
1
Evaporator flask 1,000 ml, NS 29/32
4
514-74000-00
1
Evaporator flask 1,000 ml, NS 24/40
4
514-74000-05
(1)
Vapor tube NS 29 / 32
5
514-00000-01
1
Vapor tube NS 24 / 40
5
514-00020-03
(1)
Condenser clamp S 35/20
6
515-42000-00
1
Receiving flask 1000 ml, S 35/20
7
514-84000-00
1
Receiving flask 1000 ml, S 35/20, plastic coated
7
514-84000-04
(1)
Inlet tube (PTFE-) 3.5/4.5x600
8
23-30-01-04-72
1
Threaded fitting GL10 red
9
23-30-01-04-69
1
Seal O-ring 3.2x2.5
10
23-08-06-03-26
1
Inlet pipe (stopcock)
11
514-51000-00
1
Threaded fitting GL 14
12
23-09-03-01-27
2
Connector for the threaded fitting GL 14
12
11-300-005-22
2
Threaded fitting GL 18
13
23-09-03-01-24
1
Stopper NS 19 / 38 (stopcock)
14
15-003-003-24
1
Holder, complete
15
569-00051-00
1
Liner cold trap
16
514-00500-00
1
Liner cold trap, plastic coated
16
514-00510-01
(1)
Table 10-3: Glassware set G5

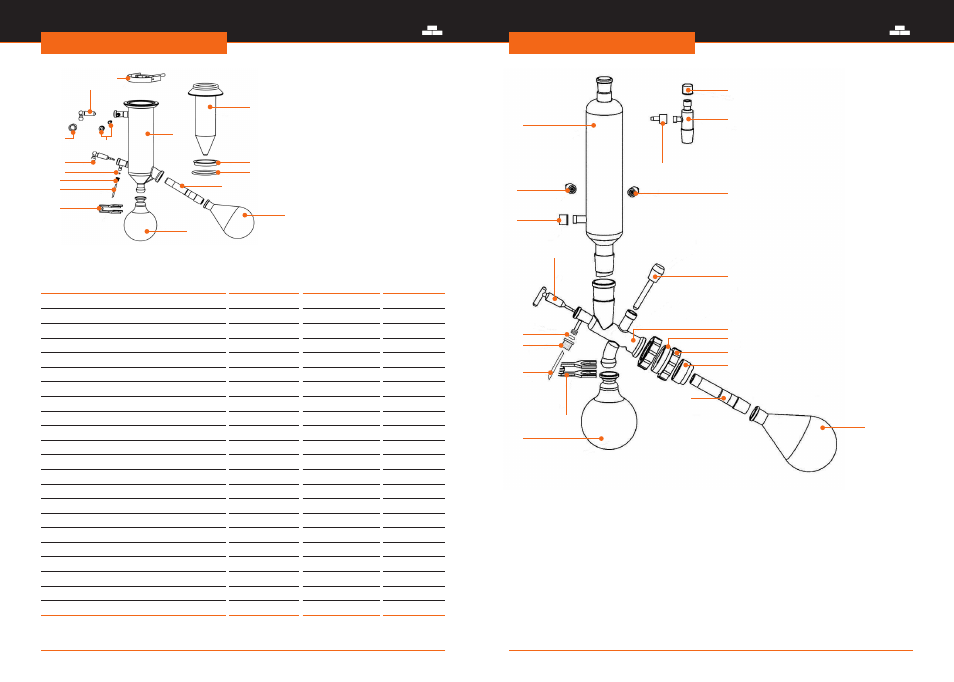

Figure 10-3: Glassware set G5
1
2
3
4
5
7
6
8
9
10
11
14
13
12
15
16
Figure 10-4: Glassware set G6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
3
17
3
