Set-up and Start-up Unit Description
Unit Description
Rotary evaporators Hei-VAP Value, Hei-VAP Advantage, Hei-VAP Precision serve the
▪ distillation or evaporation of solvents (chemicals)
▪ purification of chemicals, substances, mixtures and preparations
▪ processing reaction batches
▪ drying of powder
1
Drive unit with vapor tube and
coupling clamp duct
5 Control panel
2 Evaporator flask 6 Receiving flask
3 Heating bath 7 Condenser
4 Base unit

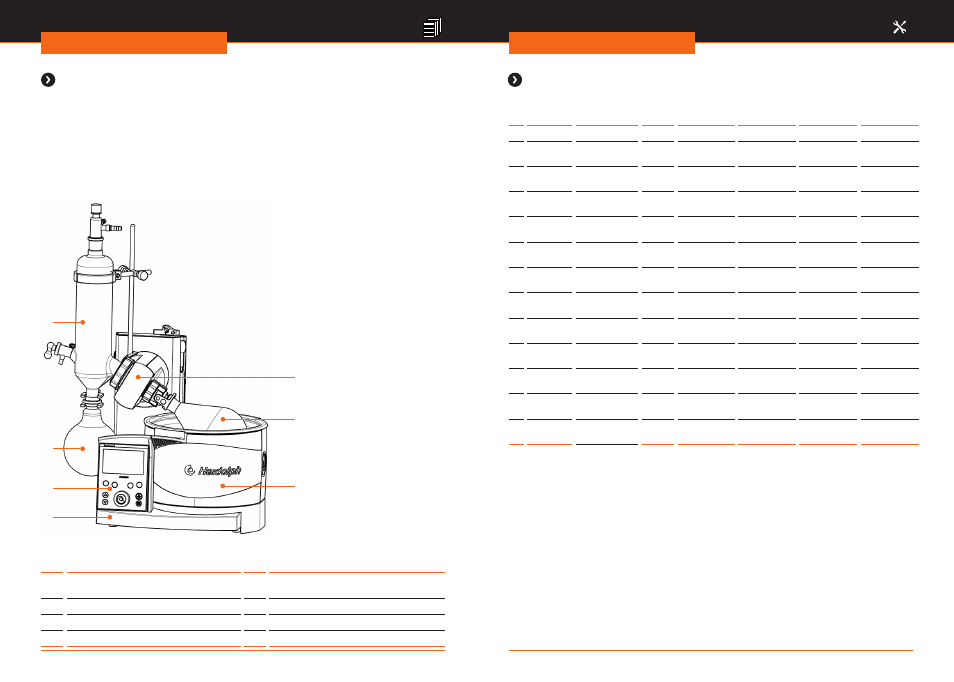

Figure 3-1: Rotary evaporator, here a Hei-VAP Precision with glassware set G3
The solvent to be evaporated is present in
the evaporator flask (2). Depending on the
thermodynamic properties of the solvent, the
solvent is evaporated by a suitably selected
combination of the heating bath temperature
(3) and the vacuum. The settings are made on
the control panel (5) of the base unit (4). The
drive unit (1) provides a rotation, which reduces
the risk of vapor evaporation and accelerates
the evaporation process by in-creasing the
surface area of the solvent. The solvent vapor
reaches the condenser (7) via the vapor tube, is
condensed and then flows into the receiving
flask (6).
1
2
3
4
5
6
7
Scope of delivery
Descrip-
tion
Completion
Quan-
tity
Hand lift truck (HL) Motor lift (ML)
Glassware set Standard coated Standard coated
Hei-VAP
Value G1 diagonal
condenser
1 560-01100-00 560-01110-00
or
Hei-VAP
Value G3 vertical
condenser
1 560-01300-00 560-01310-00
or
Hei-VAP
Value
G5 cold trap 1 560-01500-00 560-01510-00
or
Hei-VAP
Value G6 return
condenser
1 560-01600-00 560-01610-00
or
Hei-VAP
Advantage G1 diagonal
condenser
1 561-01100-00 561-01110-00 562-01100-00 562-01110-00
or
Hei-VAP
Advantage G3 vertical
condenser
1 561-01300-00 561-01310-00 562-01300-00 562-01310-00
or
Hei-VAP
Advantage
G5 cold trap 1 561-01500-00 561-01510-00 562-01500-00 562-01510-00
or
Hei-VAP
Advantage G6 return
condenser
1 561-01600-00 561-01610-00 562-01600-00 562-01610-00
or
Hei-VAP
Precision G1 diagonal
condenser
1 563-01100-00 563-01110-00 564-01100-00 564-01110-00
or
Hei-VAP
Precision G3 vertical
condenser
1 563-01300-00 563-01310-00 564-01300-00 564-01310-00
or
Hei-VAP
Precision
G5 cold trap 1 563-01500-00 563-01510-00 564-01500-00 564-01510-00
or
Hei-VAP
Precision G6 return
condenser
1 563-01600-00 563-01610-00 564-01600-00 564-01610-00
