Set-up and Start-up Set-up and Start-up
46 47
1 Condenser 8 Ventilation / inert gas
2 Y-piece 9 Vacuum tube
3 Vacuum valve 10 Vacuum valve cable connection
4 Condensate cooler (optional) 11 USB PC connection
5 Vacuum valve cable 12 Vacuum sensor connection
6 Switch box connection 13 Vacuum sensor
7 Hei-VAP connection 14 Data cable
This installation instruction refers to the current configuration with external vacuum
sensor. If you use an older version of this model, please refer to the correct manual.

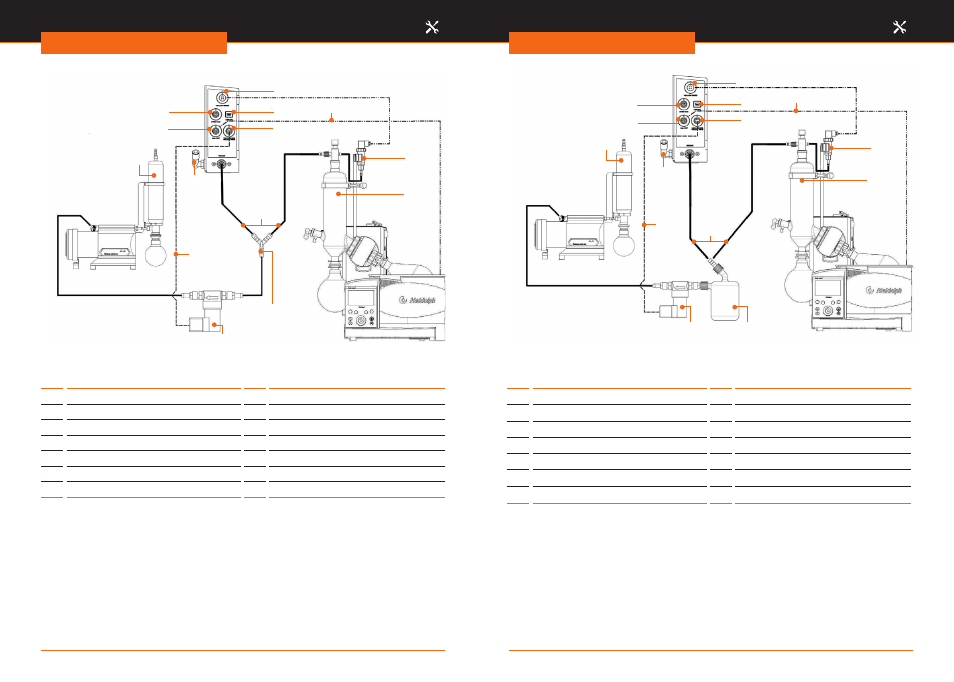

Figure 4-22: Hei-VAP Precision with Rotavac valve control and vacuum box
1 Condenser 8 Ventilation / inert gas
2 Woulff bottle 9 Vacuum tube
3 Vacuum valve 10 Vacuum valve cable connection
4 Condensate cooler (optional) 11 USB PC connection
5 Vacuum valve cable 12 Vacuum sensor connection
6 Switch box connection 13 Vacuum sensor
7 Hei-VAP connection 14 Data cable
This installation instruction refers to the current configuration with external vacuum
sensor. If you use an older version of this model, please refer to the correct manual.
Figure 4-23: Hei-VAP Precision with Rotavac valve control and vacuum box and with Woulff bottle
1
3
4
9
10
11
12
13
7
8
2
6
14
5
1
3
4
5 9
10
11
14
7
6
2
13
12
8
