Set-up and Start-up Set-up and Start-up
22 23
1 Transportation safety device 4 Button - lift down
2 Front shell of lift 5 Button - lift up
3 Power switch

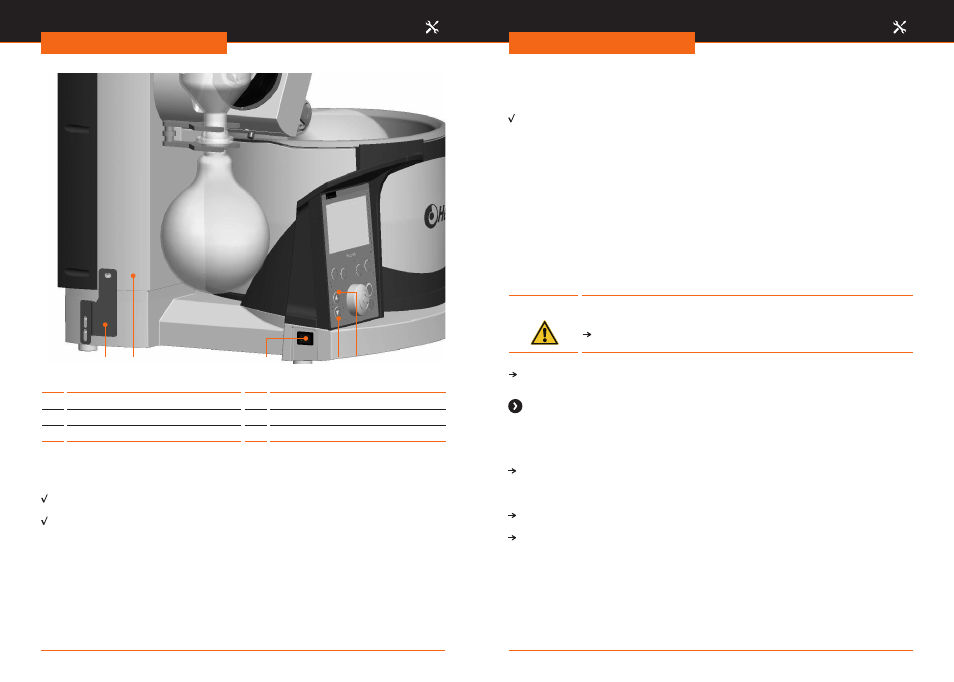

Figure 4-1: Transportation safety device
Removing the transportation safety device
All hose and cable connections to other devices, and the coolant/vacuum connection
are disconnected.
Connect the unit and set the power switch (3) at on.
1. Remove the top screw (in the front shell of the lift (2)) and the lower screw of the
transportation safety device (1) in the switched state. Never tighten in the top
position!
2. Remove the screws and the transportation safety device (1) and store.
3. Move the hoist up by using the “lift up” (5) button. Switch the unit off and on.
1 2 3 4 5
Attaching the transportation protection device
before packing
All hose and cable connections to other devices and the coolant/vacuum connection
are disconnected.
Connecting the unit
1. Continue pressing the lift position contact down when switching the unit on (this will
suppress the “lift to the top when power off” function).
2. Move the hoist down by using the “hoist down” (4) button
3. Hold the transport safety device as shown in Figure 4-1 and fix it with the screws
M5x8 (3 pieces).
4. Switch off the unit.
5. Remove the plug.
6. Package the unit.
Carry the basic unit from below.
CAUTION Vibrations and shocks!
Damaging the housing and the mechanical system of the equipment.
Avoid vibrations and shocks.
Setting up the basic unit
Chemicals may reach the atmosphere (via the pump) when handling hazardous materials
and distilling solvents.
Verify that harmful fumes or gases do not affect the operating personnel.
The pump exhaust air must be channeled to an exhaust hood or condensate
condenser.
Verify that the interior and exterior pressure variance equals no more than 2 bar.
Verify that the emergency stop for the power supply is always easy to reach.
