Set-up and Start-up Set-up and Start-up
56 57
1 Heating bath unit plug
2
Heating bath connecting line
(symbolically without a cable and
connector)
3 Power supply connector

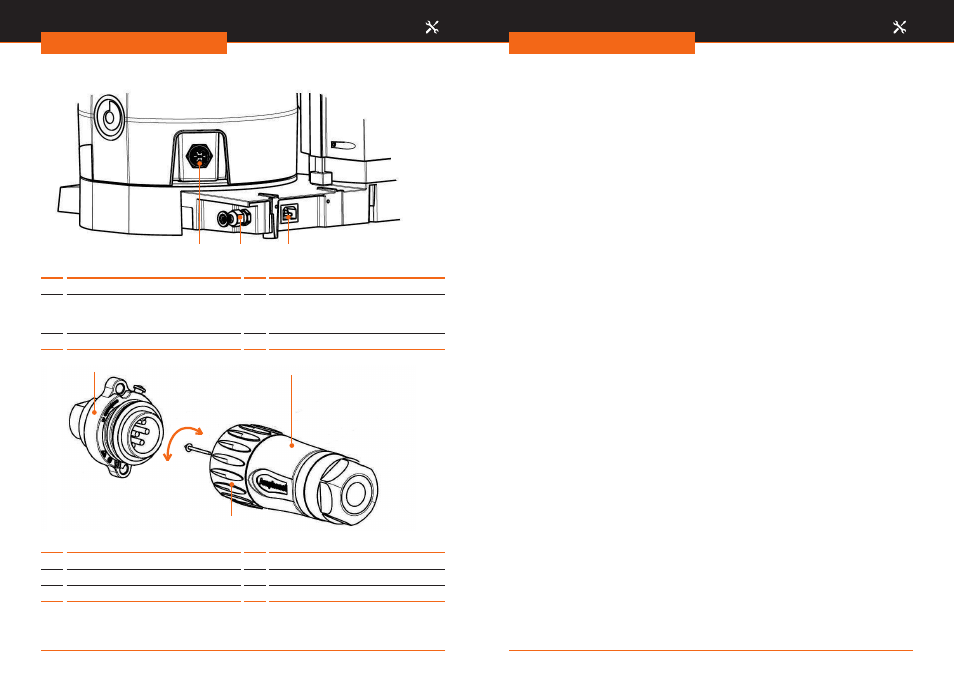

Figure 4-3: Connections
1 2 3
Figure 4-4: Heating bath connector
1
2
3
1 Unit plug
2 Connector
3 Cap nut
1. Plug the socket of the heating bath connecting cable (2) of the Hei-VAP base into the
appropriate connector (1).
2. Plug the socket (2) with the cap nut (3) of the heating bath connecting cable (7-pin)
into the heating bath:
- Press the socket into the connector so that the locking stub fits into the groove.
- Grab the socket (2) on the cap nut (3) and turn the knurled nut clockwise to
fix it.
3. Plug the power supply cable into the power supply plug on the back panel of the base
unit.
4. Connect the power cable to the power supply.
