Set-up and Start-up Set-up and Start-up
26 27

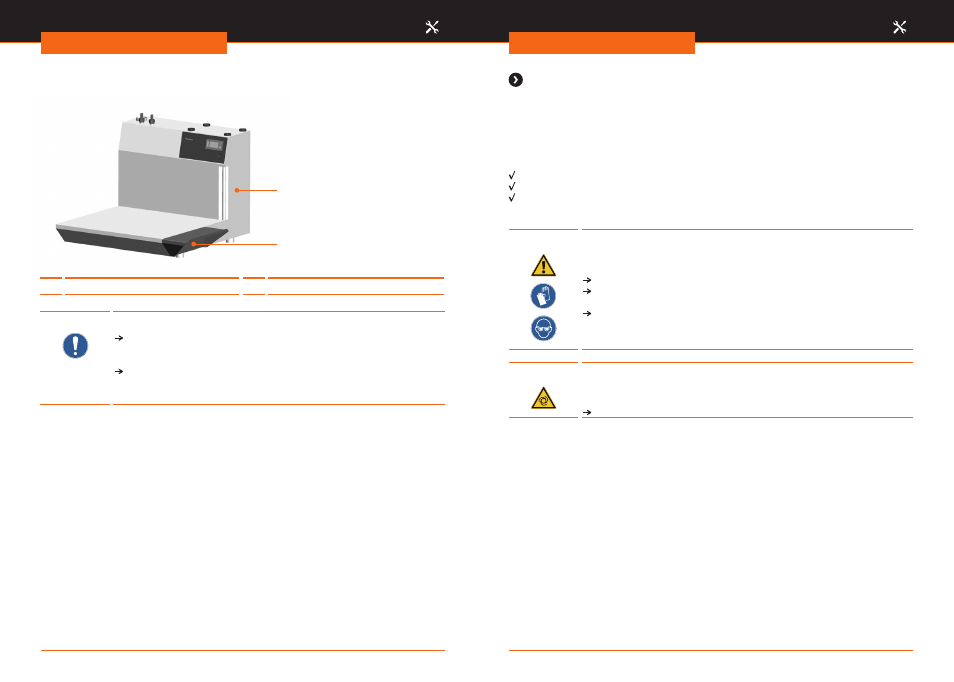

1 Chiller 2 Chiller extension plate
1. Place the two screws on the right side of the extension plate of the Chiller. (Contact a
local Heidolph Distributor if using a previously purchased Chiller before July, 2009 for
proper attachments of the extension plate.
2. Check the extension plate (2) for proper seating.
Location of the heating bath when using Chiller
The base unit is located on a suitable surface. Verify that sufficient
space (approx. 20 cm around the evaporator) and a solid seating are
available in the shifting area and the Chiller.
Verify a solid seating of the heating bath base and the bath as well
as the Chiller extension.
Heating bath set-up when using Chiller
1
2
WARNING Glass breakage!
Serious injuries from shattering and breaking glass.
Check glass devices for damages (stars, breaks, etc.).
Only use perfect glass devices and replace all damaged
glassware as soon as possible.
Work carefully.
Assembling the glassware sets will be described in the following. The rotary evaporators
can be equipped with various glassware sets.
The base unit is set up and installed.
A water or coolant connection is available (does not apply for glassware set G5).
Lift is in the top position (see chapter Set-up and start-up).
CAUTION Unintentionally rotating drive!
Injuries to hands.
Verify that the rotation is displayed.
Glassware sets
Assemble glassware sets
