Set-up and Start-up Set-up and Start-up
48 49

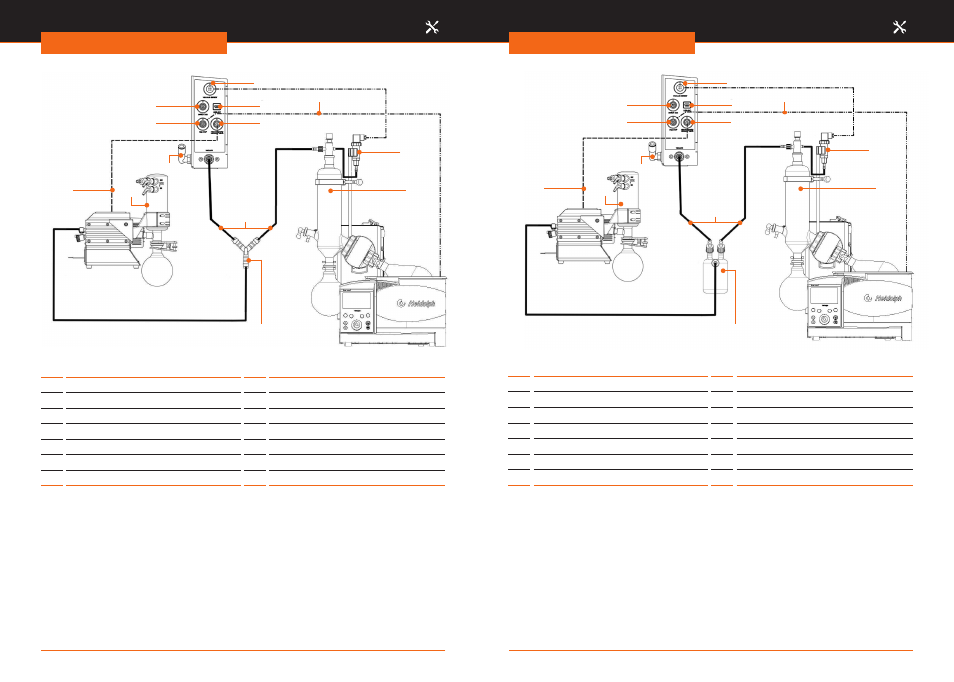

Figure 4-24: Hei-VAP Precision with Rotavac vario tec and vacuum box
1 3
8
9
10
11
13
6
7
5
2
4
Figure 4-25: Hei-VAP Precision with Rotavac vario tec and Vacuumbox and Woulff bottle
1 3
8
9
10
11
13
6
7
5
2
4
12 12
1 Condenser 8 Vacuum tube
2 Y-piece 9 Vaccum pump connection
3 Condensate cooler (optional) 10 USB PC connection
4 Vacuum valve cable 11 Vacuum sensor connection
5 Switch box connection 12 Vacuum sensor
6 Hei-VAP connection 13 Data cable
7 Ventilation / inert gas
This installation instruction refers to the current configuration with external vacuum
sensor. If you use an older version of this model, please refer to the correct manual.
1 Condenser 8 Vacuum tube
2 Woulff bottle 9 Vaccum pump connection
3 Condensate cooler (optional) 10 USB PC connection
4 Vacuum valve cable 11 Vacuum sensor connection
5 Switch box connection 12 Vacuum sensor
6 Hei-VAP connection 13 Data cable
7 Ventilation / inert gas
This installation instruction refers to the current configuration with external vacuum
sensor. If you use an older version of this model, please refer to the correct manual.
