Power Up Using DC Power
When using an external power supply, the gateway must be connected to a network before being powered.
Menu Structure
The Net3 Show Control Gateway has a one button interface. Pressing the [Menu] button repeatedly cycles through the menu,
displaying related data. On certain menu items you are prompted to press and hold the [Menu] button for a period of 5 seconds
to change a state or setting.
Stage Input
MIDI TIMECODE
00:00:00:00
SMPTE TIMECODE
00:00:00:00
Last MIDI SYSEX RXed
IP Address
10.101.50.123
Subnet Mask
255.255.0.0
Gateway IP
10.101.50.103
Gateway Version
v1.0.1.9.0.66
Hold button 5 sec to
Download Software
Hold button 5 sec to
Factory Defaults
• displays the current SMPTE timecode.
• displays the current Subnet Mask of the gateway.
• displays the current IP address for a network router (or the gateway’s own IP address).
• displays the version number of the software currently running on this device.
• software is retrieved from the current TFTP update server .
• Restoring defaults will cause the gateway to reset all settings to the factory defaults.
• displays either the gateway name or the IP address.
• displays the current MIDI timecode.
• displays the last MIDI system exclusive packet message received by the gateway.
• displays the current IP address of the gateway.

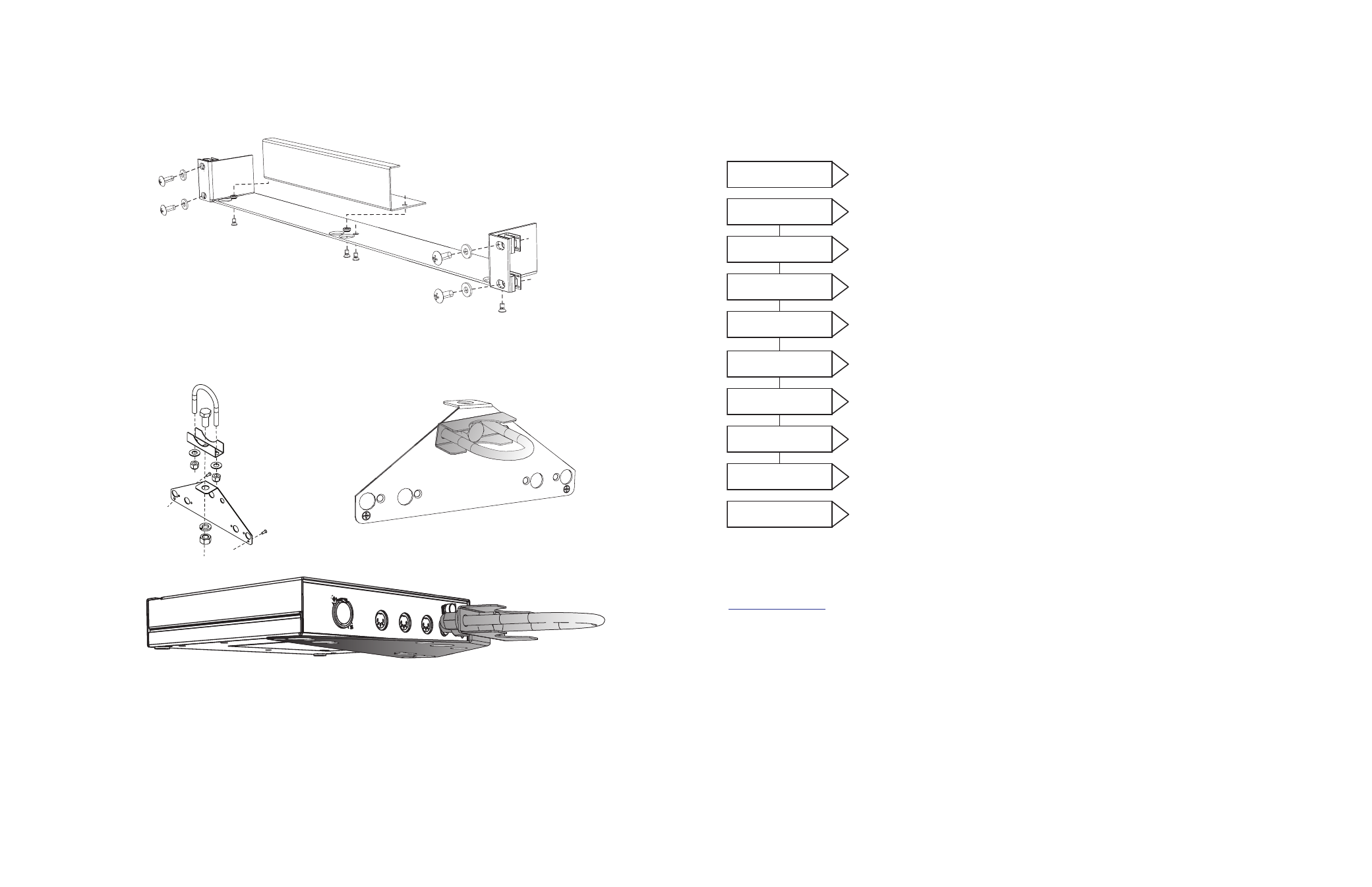

Optional Accessories
Rack Mount Kit (4260K1001)
The Net3 Gateway Rack Mount kit is capable of holding up to two Net3 gateways for mounting into a standard 19” rack enclosure. If you only
need to mount one unit, a blanking plate is provided with the kit. This blanking plate can be installed on either side of the rack mount bracket.
Hanging Hardware Kit (4260K1005)
The Net3 Hanging Hardware kit allows pipe mounting of a Net3 Gateway in a variety of orientations. You can vary the way the U-bolt (or
c-clamp) attaches to the bracket and the way the bracket mounts to the gateway. The bracket attaches to any edge on the bottom of your
gateway.
Help from ETC Technical Services
If you experience difficulty during setup or installation of the Net3 gateway, additional information is available fron
www.etcconnect.com , or by contacting ETC Technical Services at your local office listed on the bottom of page 1.
