FDX 3000 Dimmer Racks

Regulatory Information

The FDX3000 rack is certified to the following CE standards:

Safety: EN61439-1 (Low voltage Switchgear and Controlgear assemblies)

Electromagnetic Immunity: EN61547 (EMC Immunity for Lighting Systems)

Initial Setup

Module Count

The FDX3000 controller supports between 1 and 96 dimmers. The number of dimmers is

configured using DIP switches on the backplane of the controller.

To configure or alter the number of modules configured in your FDX system:

Step 1:

Turn off power to the rack.

Step 2:

Remove the two CEM3 modules from the FDX3000 carrier.

Step 3:

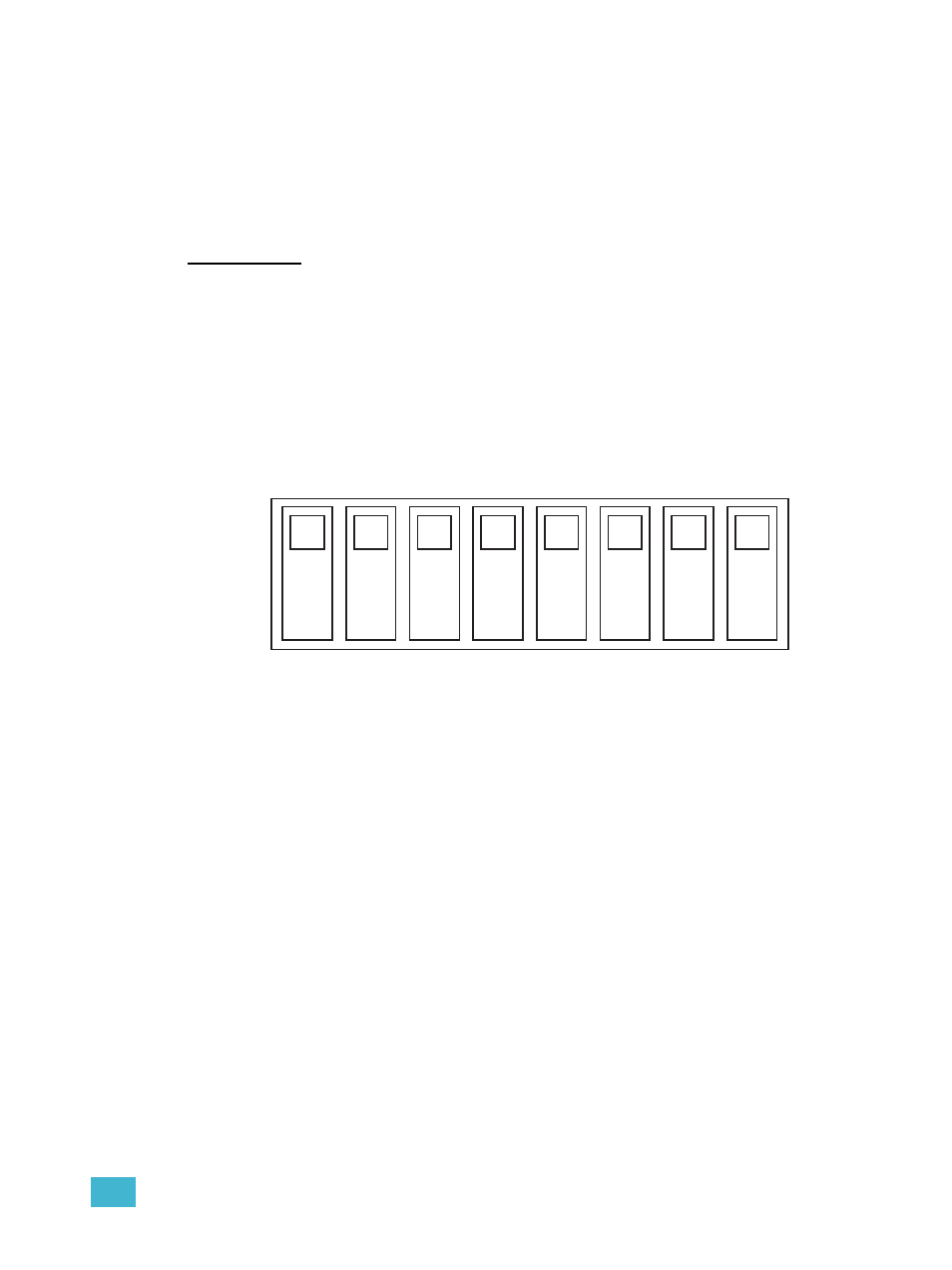

Set the DIP switches in binary to the number of modules in your rack. The DIP

switches are counted from left to right as follows:

•

Up indicates the DIP switch is on. So, for example to set the rack up for 96

modules, set DIP switches 32 and 64.

Step 4:

Reinstall the CEM3 modules.

Step 5:

Power up the rack.

Module Types

The following module types are supported in FDX:

•

Blank - Used where a blank plate is fitted; gives no control and no feedback

•

NoV-Nol - A dimmer module with no current or voltage feedback.

•

V-Nol - A dimmer module with voltage feedback but no current feedback.

•

NoV-I - A dimmer module with current feedback but no voltage feedback.

•

V-I - A dimmer module with voltage and current feedback.
