Wiring diagrams – ETC SmartPack CE Terminal Output Panel Setup Guide User Manual
Page 2
c:

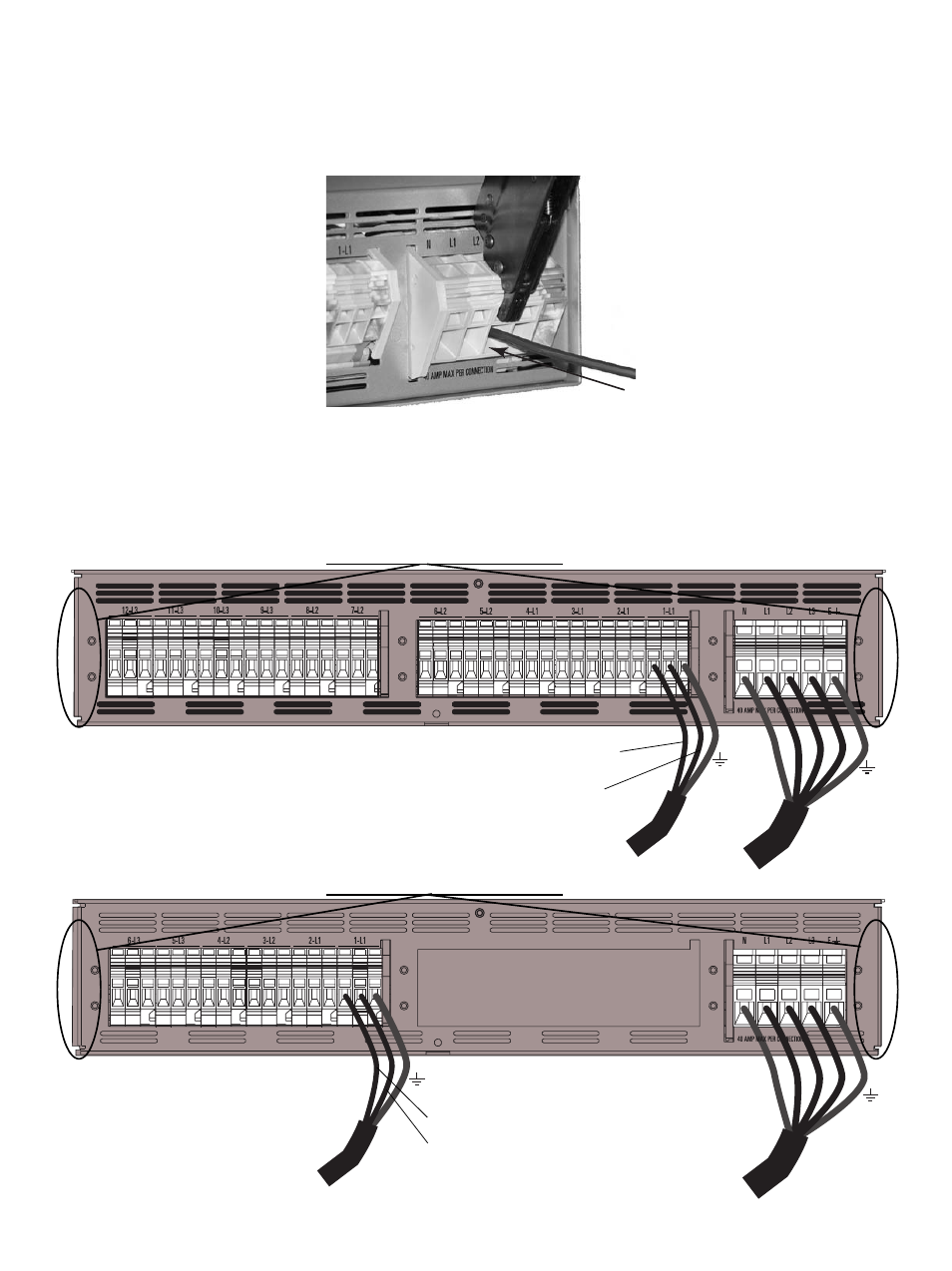

To open the terminal, squeeze the handles of the Wago terminal tool until it clicks. If you are
using a screwdriver, align the head with the slot in the top of the terminal and press down
firmly until the terminal opens.
d:
Insert the prepared wire into the terminal (input terminal shown):
e:
Squeeze and release the handles of the Wago terminal tool, or remove the screwdriver. The
wire should be held securely in the terminal.
f:
Repeat for all earth/ground, neutral and hot wires for each load circuit, and for all input
wiring.
Wiring Diagrams
12 Channel Models
6 Channel Models
Neutral
Live
Neutral
Live
40A MAX PER CONNECTION
40A MAX PER CONNECTION
Keep area free of obstructions.
Keep area free of obstructions.
