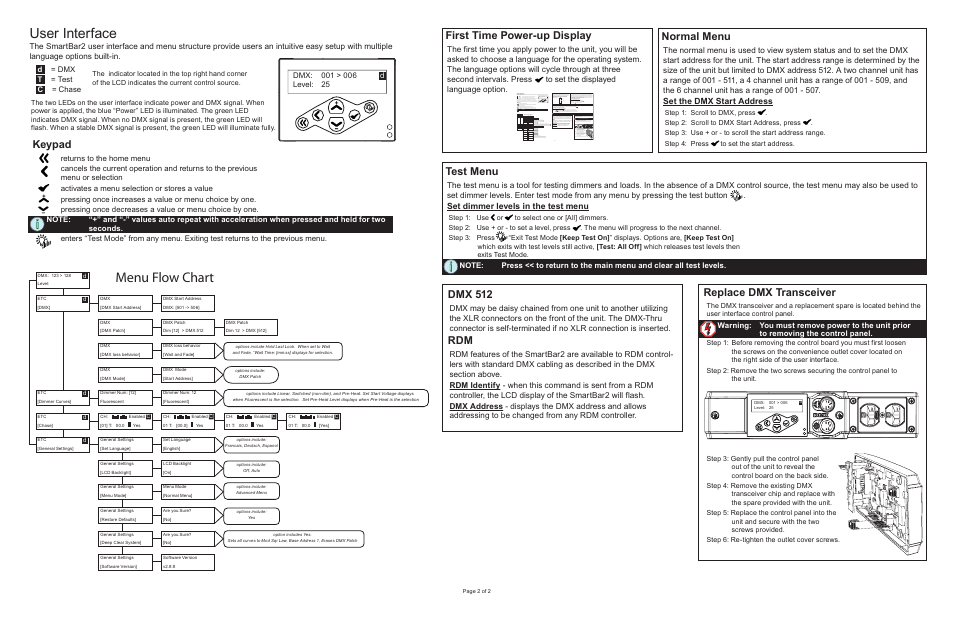

User interface, Menu flow chart, Dmx 512 – ETC SmartBar 2 Setup and Connect Guide User Manual
Page 2: Keypad, First time power-up display, Normal menu, Test menu, Replace dmx transceiver, Set the dmx start address, Set dimmer levels in the test menu
