Bracket Options
There are two additional brackets that ship with the ES1 Dimmer. The sandwich bracket should be used
when mounting the dimmer to the yoke of a fixture. The pipe mount bracket should be used when
mounting the dimmer to a lighting truss or pipe.
• A safety cable can be attached through either of the existing holes to the left and right of the
mounting pad.

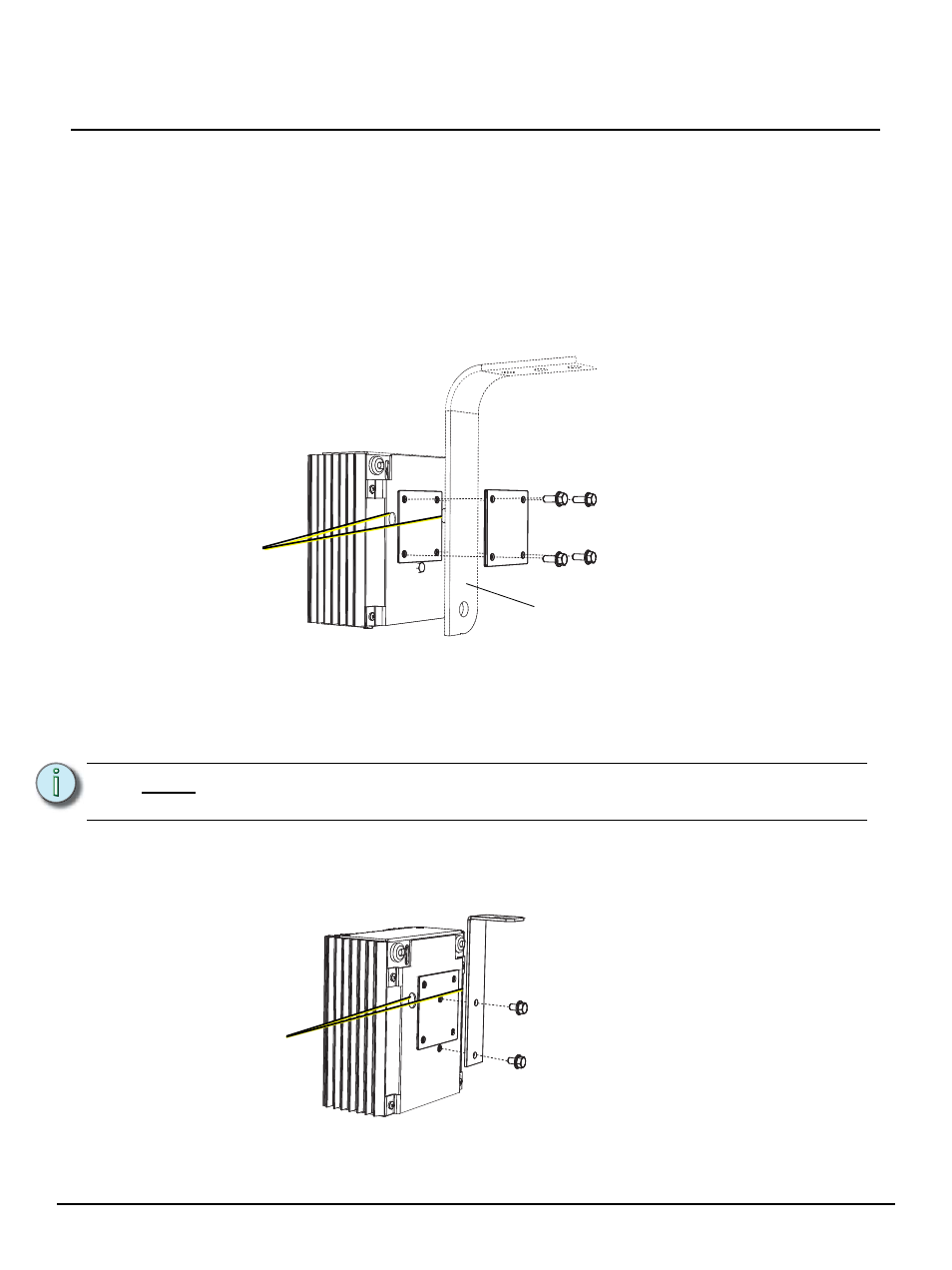

Sandwich Bracket
The Sandwich bracket includes a metal plate and needed hardware.
Step 1:
Secure the fixture yoke between the two bracket plates with the four provided bolts.
Pipe Mount Bracket
The pipe mount bracket includes an L-shaped bracket and hardware.
Step 1:
Using two of the bolts provided, attach the bracket to the dimmer as in the graphic below.
Step 2:
Attach a hook clamp, half coupler, or other mounting to the bracket.
.,
N o t e :
Hook clamp, half coupler or other mounting is NOT supplied as part of the pipe mount
bracket.
Fixture yoke
Sandwich bracket
Safety cable
mounting holes
Pipe mount bracket
Safety cable
mounting holes
