Connect cat5 inputs, Connect echoconnect to the station power supply, Connect esd ground – ETC EchoConnect Cat5 Termination Tray User Manual

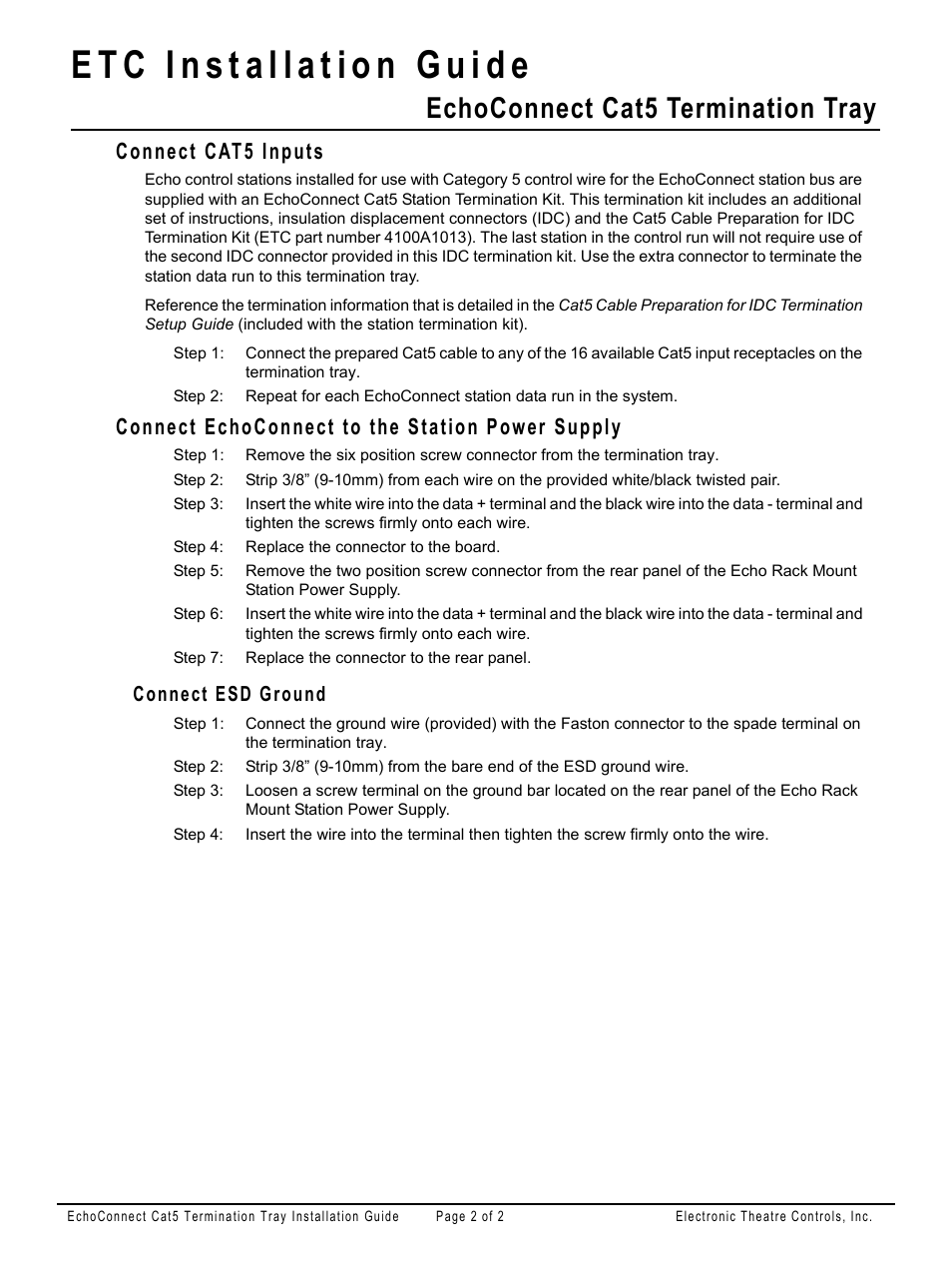

Page 2: Echoconnect cat5 termination tray
