E T C S e t u p G u i d e

Unison Battery Pack Option Kit

Unison Battery Pack Option Kit Setup Guide

Page 2 of 4

Electronic Theatre Controls, Inc.

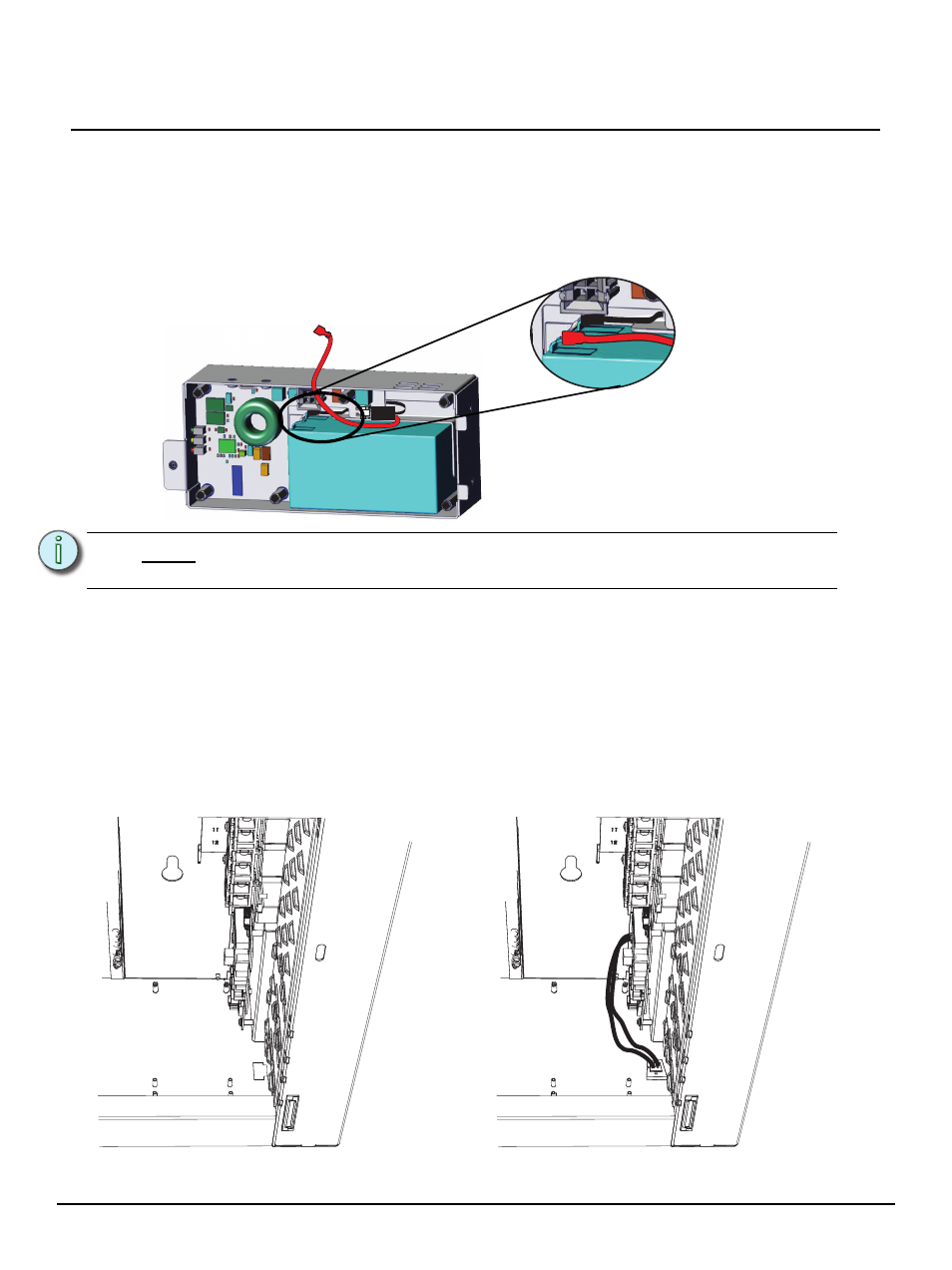

Connect Battery Cable

The battery cable is left disconnected when shipped from the factory and should be connected prior to
installation.

Step 1:

Temporarily remove the six screws securing the cover to the battery pack.

Step 2:

Locate the loose red battery cable lead and attach it to the spade receptacle on the
battery.

Step 3:

Replace the cover and secure it with the six screws previously removed.

Install Battery Pack

Step 1:

Install the wiring harness into the enclosure (the connector is keyed to ensure proper

orientation). Harness installation into the enclosure is similar for both a host DRd and a

host ERn enclosure.

a: Insert the connector end through the opening in the bottom of the enclosure. The

connector is designed to snap into place without additional hardware, therefore slight

force may be required to ensure the connector installs properly.

Step 2:

Connect to the right I/O board.

N o t e :

You might find it easier to lift the battery up slightly from the container to fit the

spade onto the receptacle.

DRd rack before UBPO cable and connector installation

DRd rack after UBPO cable and connector installation
