Dmx/rdm gateway – ETC Desire Series XTI v1.6.0 User Manual
Page 33
2
Operation
28
DMX/RDM Gateway
A DMX/RDM gateway, such as an ETC Gateway, can be used to connect a PC to the
DMX/RDM network so that you can configure the fixtures on the network. The Gateway can
be connected directly to a PC with an Ethernet cable.
Prior to connecting through a gateway, start the RDM configuration tool software and apply
power to the fixtures.
To Connect a gateway to a PC and the DMX/RDM network
Step 1:
Do one of the following.
•
Connect the PC to the local area network via Ethernet and then use an RJ45
cable to connect the gateway to the same network.
•
Using an RJ45 cable, connect the PC to the gateway.
Step 2:
Connect the DMX cable to the gateway.
Step 3:
Connect the other end of the DMX cable to the DMX jack that is connected to the
DMX/RDM network.

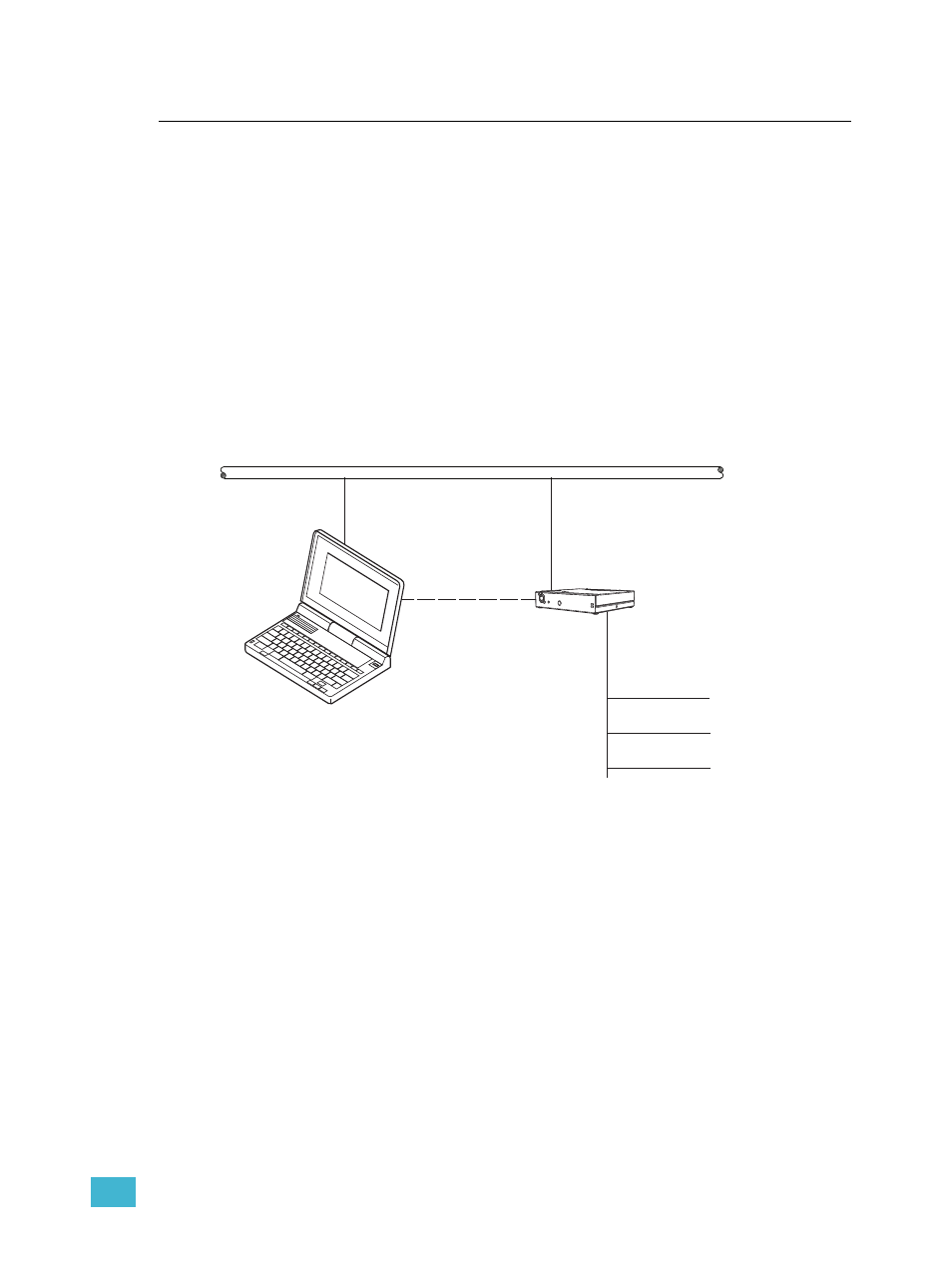

Figure-2.3 Gateway architecture.
Gateway
Local Area Network (LAN)
RJ45 (Optional)
RJ45
Computer with Net3 Concert
or UpdaterAtor
DMX/RDM network
To DMX/RDM device
To DMX/RDM device
To DMX/RDM device
