3.2.2 Motion Monitor Indicators

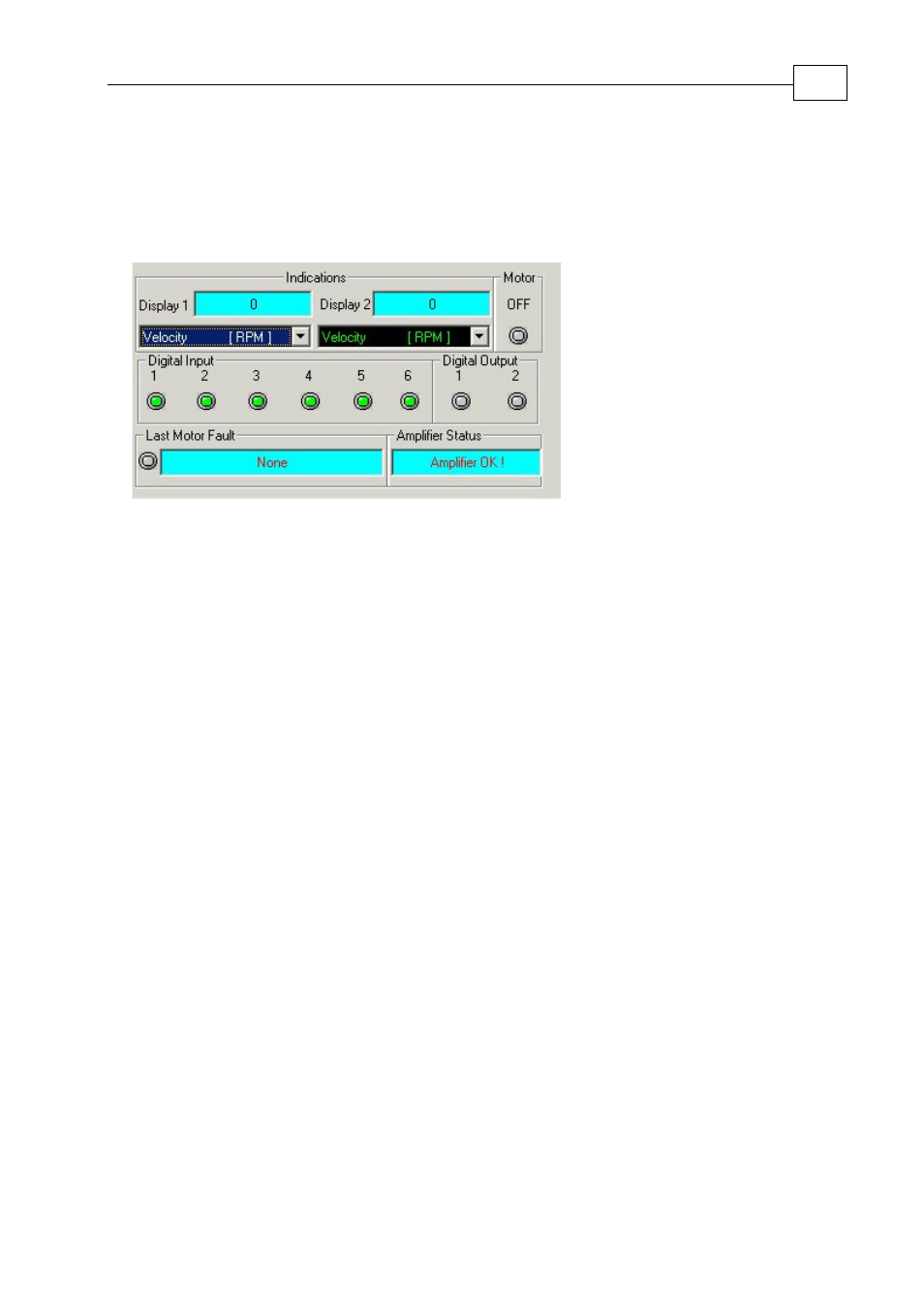

This section enables you to enter parameters for displaying the current status of the
drive. You use the two drop-down list boxes below the Display 1 and Display 2 text
boxes to select two vectors for display.
For linear motors, your vector options are as follows:
ƒ
Active Current in amperes RMS
ƒ Auxiliary Position in counts
ƒ Position in counts
ƒ Position Error in counts
ƒ Velocity in counts/sec
ƒ Velocity in m/sec
ƒ Velocity Error in counts/sec
ƒ Velocity Error in m/sec
For rotating motors, your vector options are as follows:
ƒ
Active Current in amperes RMS
ƒ Auxiliary Position in counts
ƒ Position in counts
ƒ Position Error in counts
ƒ Velocity in counts/sec
ƒ Velocity in RPM
ƒ Velocity Error in counts/sec
ƒ Velocity Error in RPM
The current drive status is indicated by the row of LEDs.
