Eagle Installation Guide Installation
MAN-EAGIG (Ver. 1.902)
www.elmomc.com
23

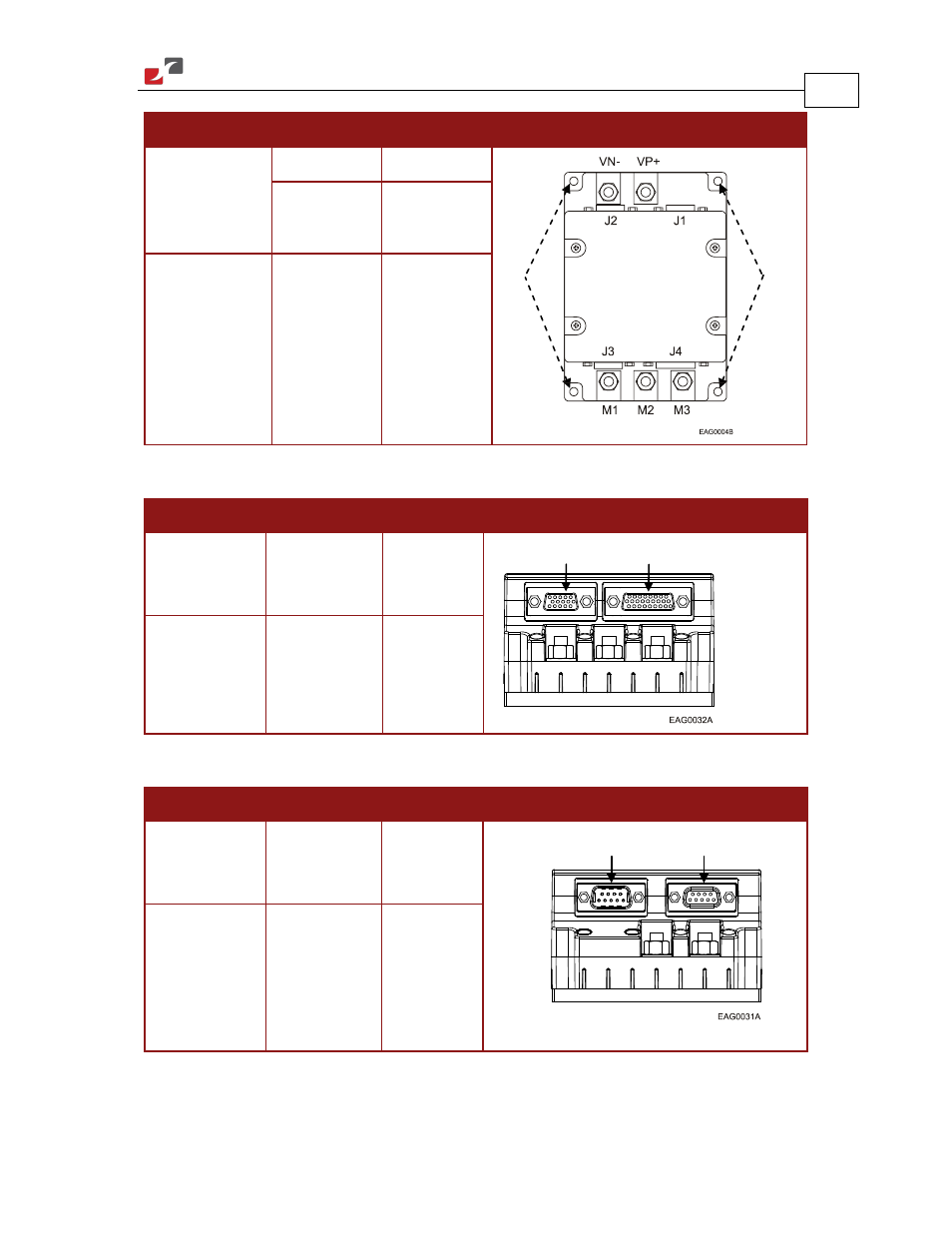

Type Function Port Connector Location
Barrel
Connector + M6
Spring Washer +
M6 Nut Power VP+, VN-
Motor M1, M2, M3
Barrel
Connector + M5
Flat Washer +
M5 Spring
Washer + M5
screw Ground PE, PE, PE, PE
Table 1: Power Connectors on the Eagle
Type Function Port Connector Location
26-Pin high
density D-Sub
female Feedbacks
A & B J4
15-Pin high
density D-Sub
male Analog Input
and
General I/O J3
Table 2: Feedback and I/O Connectors on the Eagle
Type Function Port Connector Location
9-Pin D-Sub
male CAN &
Optional
Backup Supply J1
9-Pin D-Sub
female RS-232 J2
Table 3: Communication and Backup Connectors on the Eagle
J3 Male: I/O J4 Female: Feedbacks A & B
J1 Male: CAN & Optional
Backup Supply
J2 Female: RS-232
PE PE
