Gold Drum HV Installation Guide (EtherCAT and CAN) Installation
MAN-G-DRUMHVIG-EC (Ver. 1.202)
| www.elmomc.com
81
Table of Contents

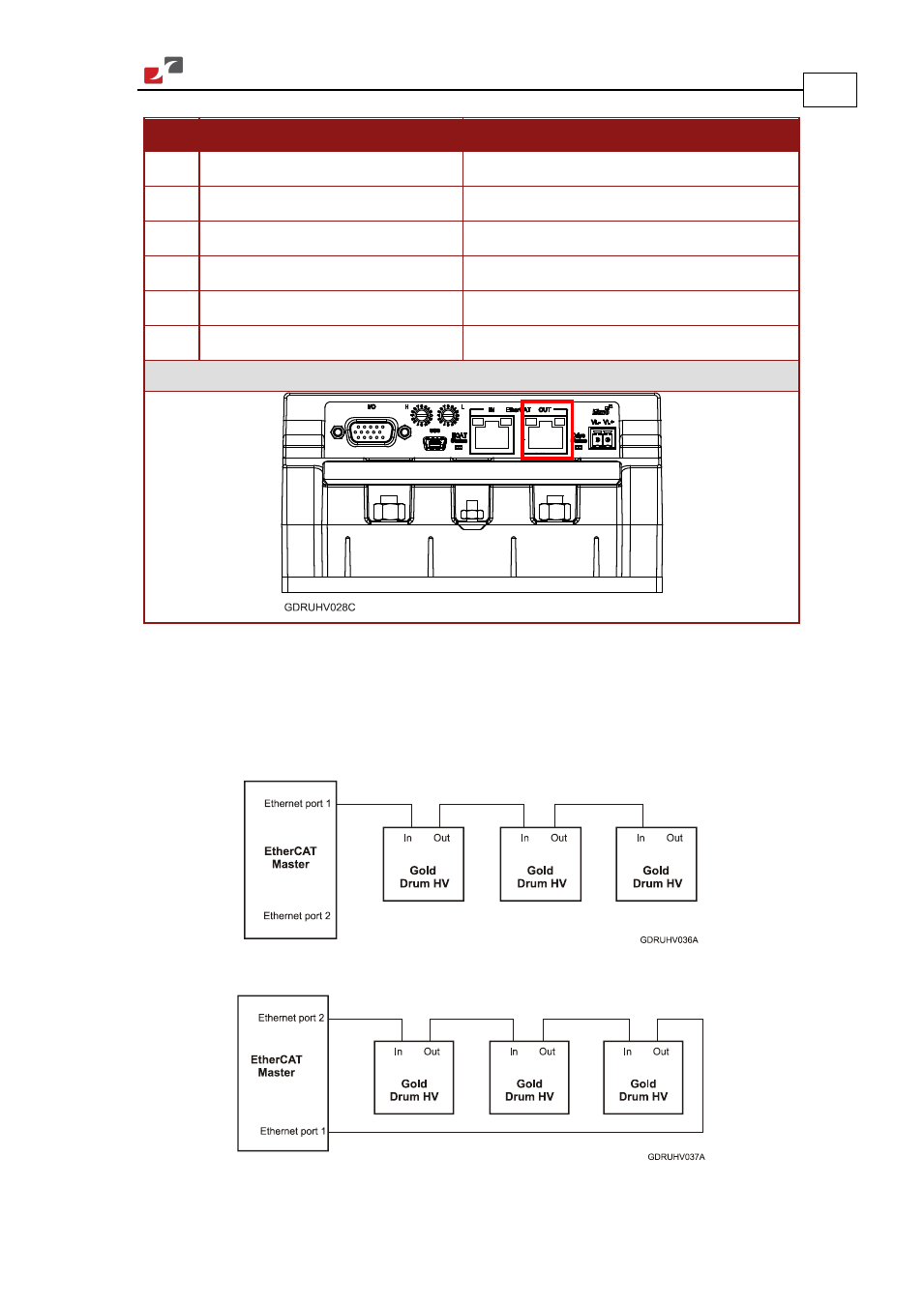

Pin Signal Function
1 EtherCAT_OUT_TX+ EtherCAT out transmit +
2 EtherCAT_OUT_TX- EtherCAT out transmit -
3 EtherCAT_OUT_RX+ EtherCAT out receive +
4/5 N/A
6 EtherCAT_OUT_RX- EtherCAT out receive -
7/8 N/A
Pin Positions
Table 24: EtherCAT Out Connector
When connecting several EtherCAT devices in a network, the EtherCAT master must always be
the first device in the network. The output of each device is connected to the input of the next
device. The output of the last device may remain disconnected. If redundancy is required, the
output of the last device should be connected to the input of the EtherCAT master.
Figure 36: EtherCAT Network with No Redundancy
Figure 37: EtherCAT Network with Redundancy
