Gold Drum HV Installation Guide (EtherCAT and CAN) Installation
MAN-G-DRUMHVIG-EC (Ver. 1.202)
| www.elmomc.com
40
Table of Contents

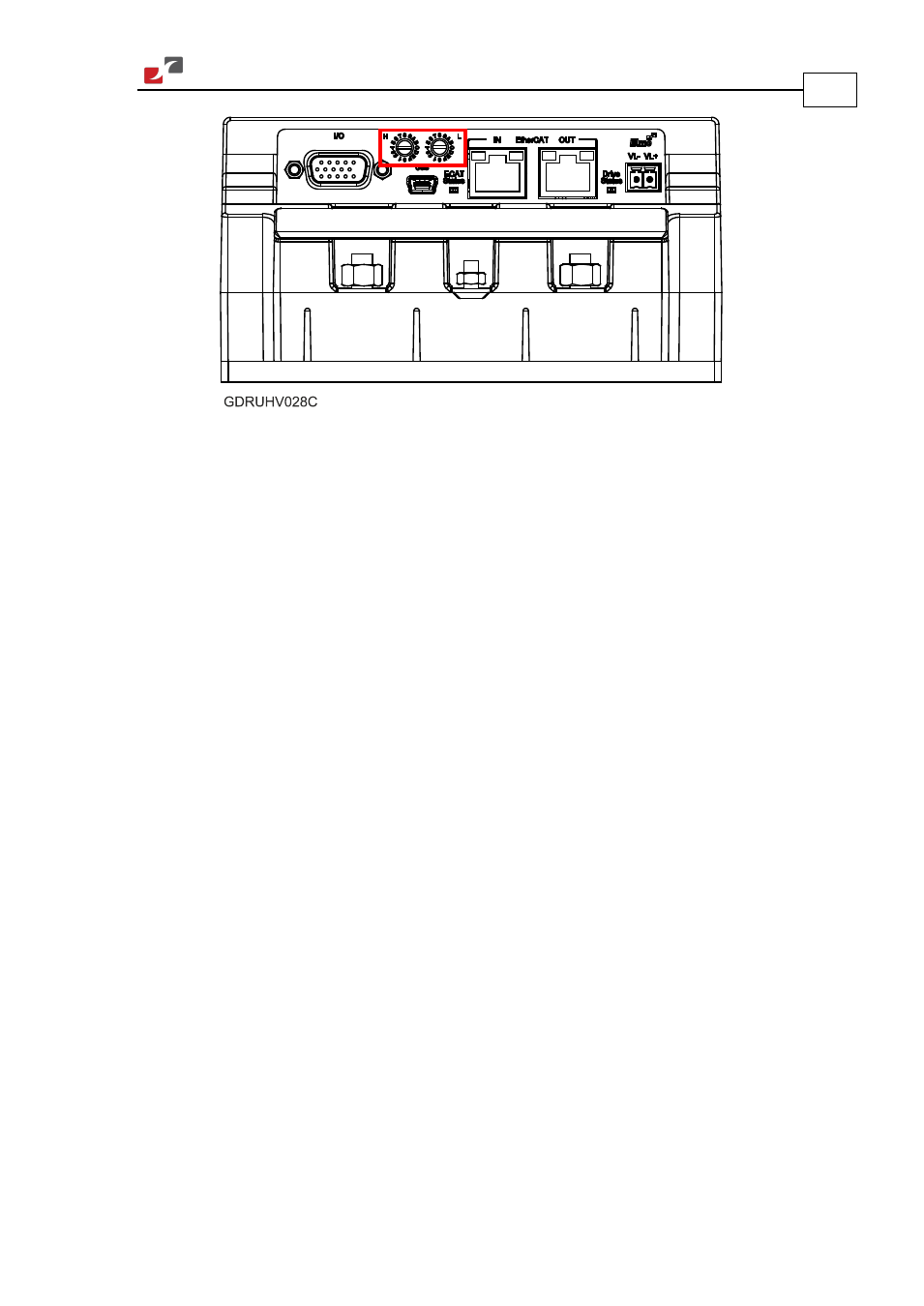

Figure 4: Position of EtherCAT Address Switches on G-Drum HV
The position of the switches on the drive are shown in Figure 5. Use a screwdriver to set the
low and high bytes values of the drive EtherCAT address. This address is only retrieved after
power-up.
