Gold Drum HV Installation Guide (EtherCAT and CAN) Installation
MAN-G-DRUMHVIG-EC (Ver. 1.202)
| www.elmomc.com
49
Table of Contents

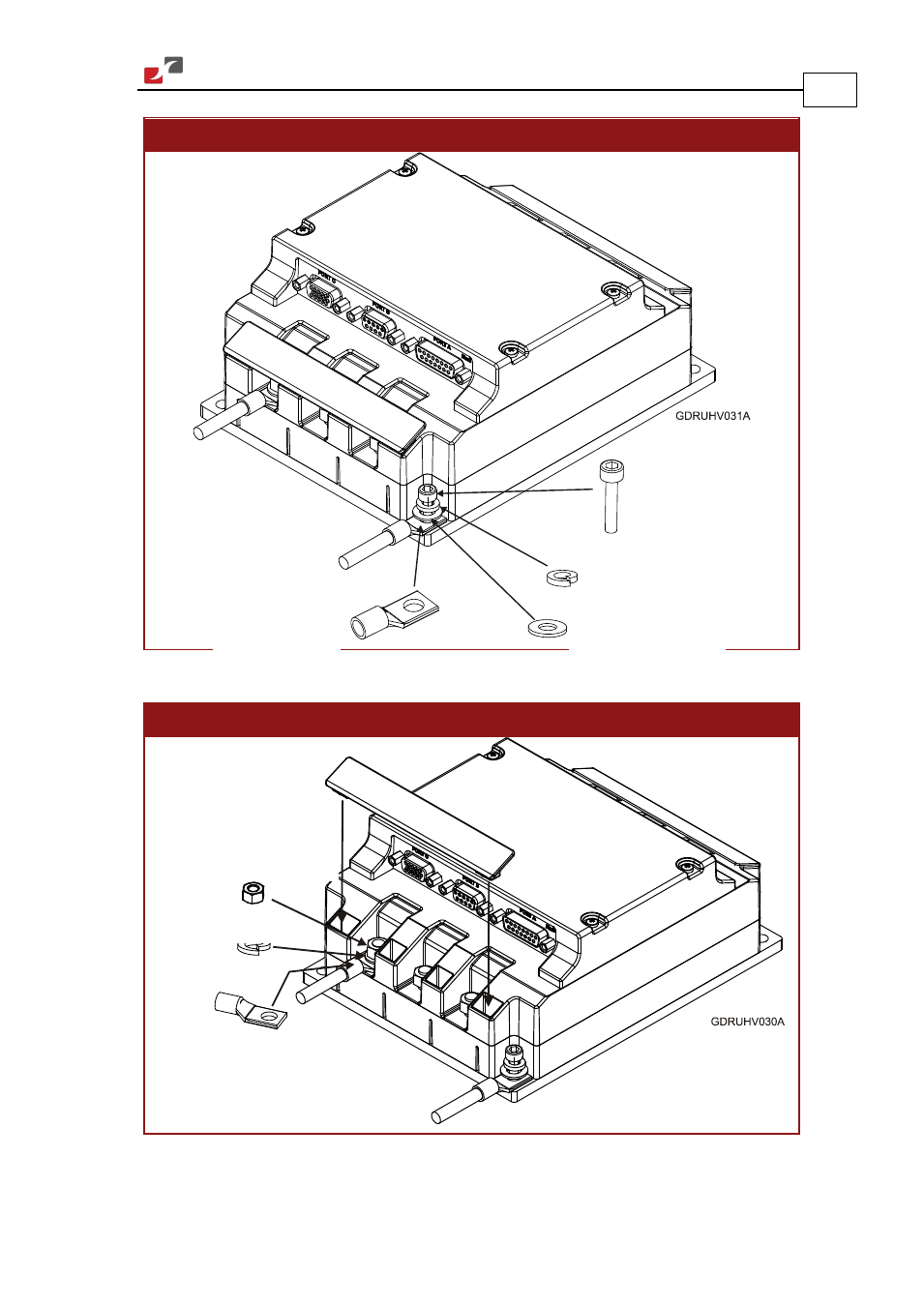

Step 1: PE Connection
Table 11: Connecting the PE Cables
Step 2: Power and Motor Connection
Table 12: Connecting the Main Power and Motor Cables
M6 nut (available with
the drive
M6 spring washer
Terminal Lug
M6 screw
M6 spring washer
M6 flat washer
Terminal Lug
