Copyright © 2006 CiDRA Corporation Page 7-11
20675-02 Rev 01
7.6 Sensor Cover Installation
The upper sensor cover assembly outside and inside are illustrated in
the following figures. Cover sizes up to 16 inch are typically made of
fiberglass. Cover sizes 18 inch and above are made from stainless
steel. The layout of both styles is essentially the same. The
differences in installation will be called out in the following sections.

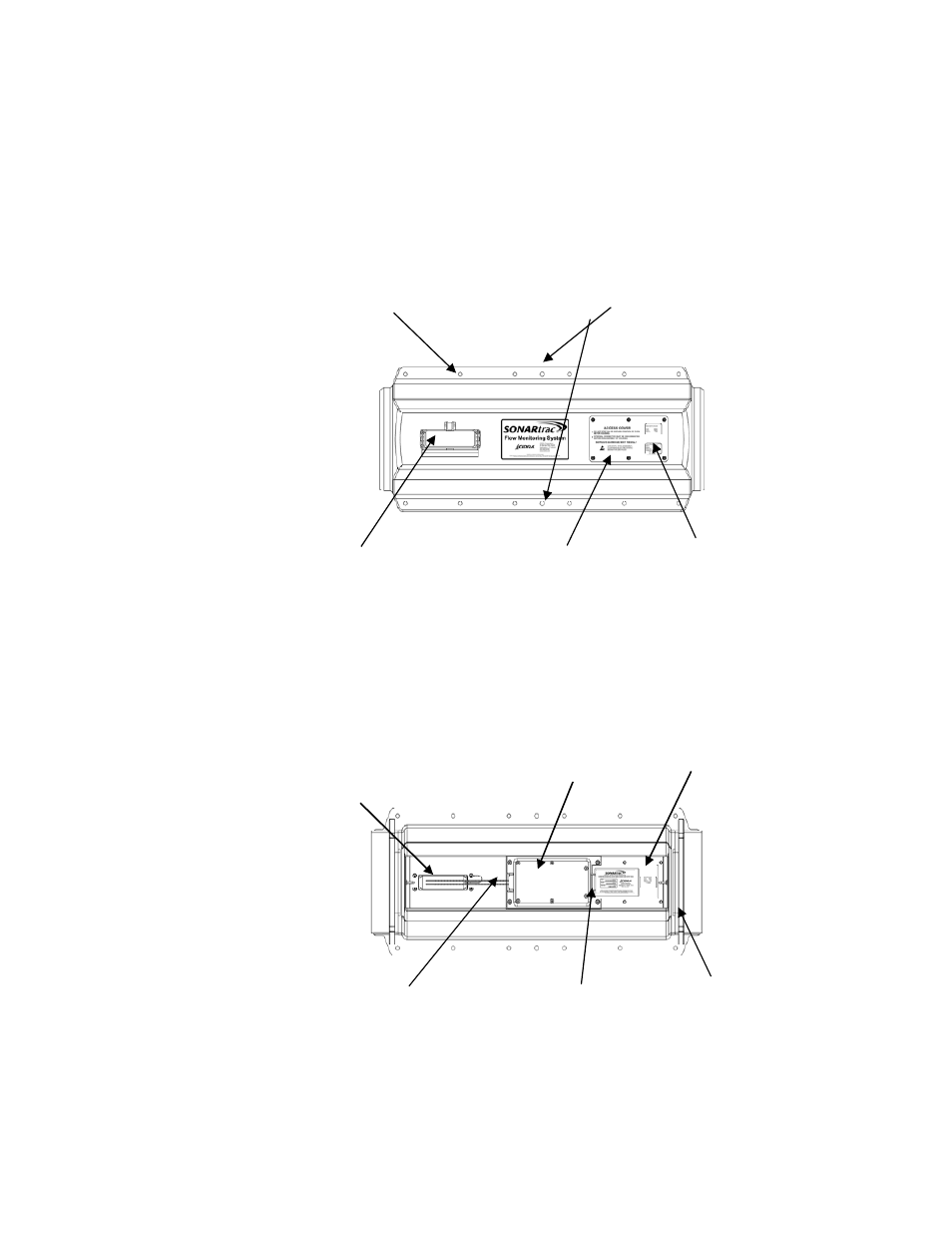

Figure 14 Upper Sensor Cover Assembly Outside View
Figure 15 Upper Sensor Cover Assembly Inside View
Sensor cover bolt holes (12 places)
Sensor cable access panel
Sensor cover alignment bolt holes (2 places)
Sensor band
information label
Transmitter cable
connector socket
Pre-amplifier
l t i b d d
Sensor cable access panel
Transmitter cable
connector socket base
Upper cover gasket
Pre-amplifier outlet cable
connector assembly
Sensor band cable socket
Pre-amplifier
electronics board and
cover
