Upgrading The Computer
6 - 22 Upgrading the Video Card
6
7. Remove screws - from the heatsink in the order indicated on the label
(two video cards are pictured here).
8. Grip the handle and carefully remove the heatsink .
9. Remove screws - from the video card.

Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.

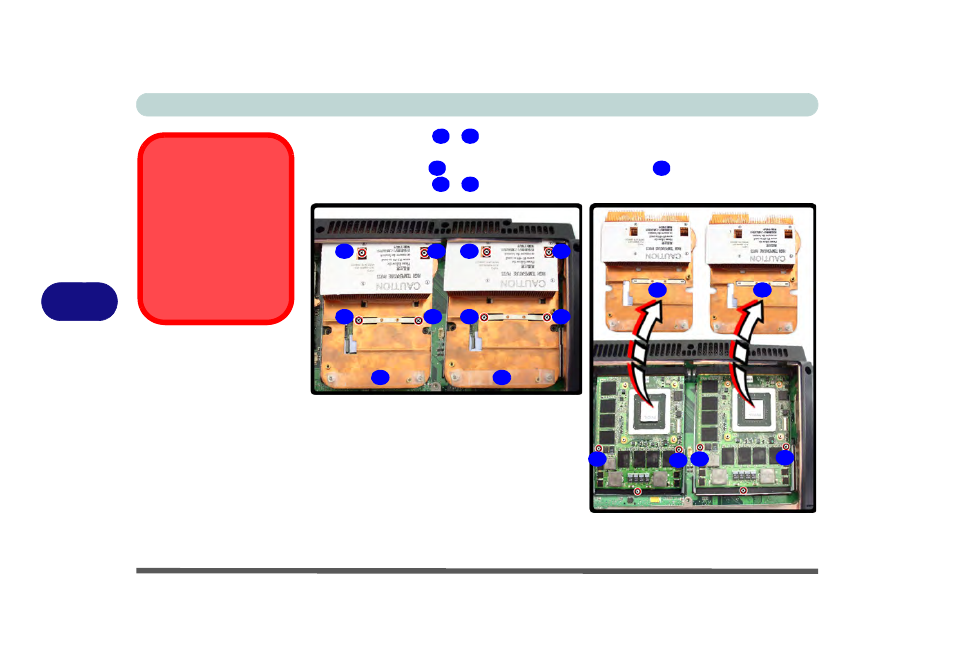

Figure 6 - 25
Heatsink Removal
