Upgrading The Computer
6 - 6 Upgrading the Hard Disk Drive(s)
6
6. Remove screws - (depending on how many hard disks you have installed in
the assembly).
7. Separate the hard disk board from the case .
8. Separate the hard disk(s) & from the case.
9. Reverse the process to install any new hard disk(s).

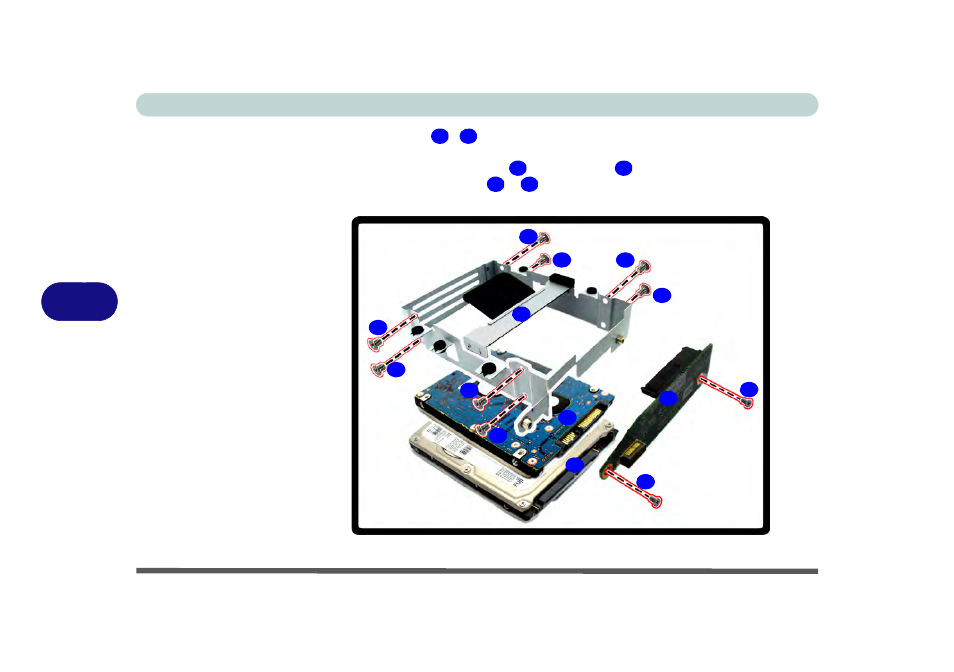

Figure 6 - 4
