Table Limit Switch (TLS) Installation Instructions
21 22
13 14
N C
N
TLS
O
1. Open the dishwasher remote control cabinet.
2. Refer to Fig. 8 below. Locate the relay marked 5CR and remove the jumper wire connected
to the relay socket.
3. Close the remote control cabinet.
4. Refer to Fig. 9 below. Remove the rinse tank
front panel (A) and locate the junction box on the
front of the tank.
5. Remove the junction box cover (B).
Section 6: TLS and Dishwasher Electrical Connections

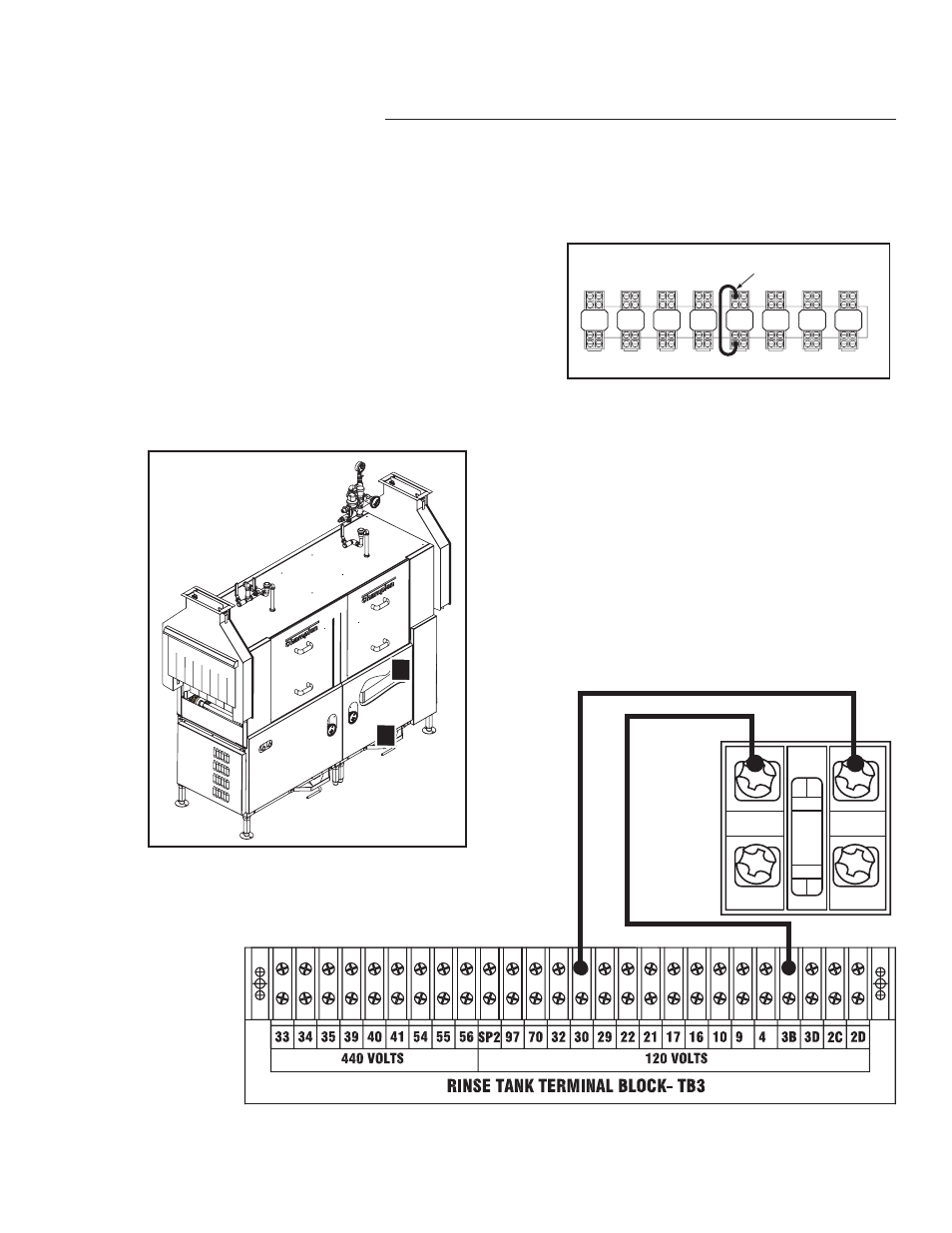

Fig. 8 -
Remove Jumper from 5CR relay located in the
remote control cabinet.
Fig.10 -
Connect Wires between the TLS and the Rinse Tank Terminal Block.
1CR 2CR 3CR 4CR 5CR 6CR 7CR 8CR
REMOVE JUMPER
A
B
Fig. 9 -
Connect Wires Between TLS and the
Terminal Block in the Control Cabinet.
6. Refer to Fig. 10 below. Connect one wire
from TLS terminal 21 to Rinse Terminal Block
terminal 30. It does not matter which wire.
Connect the other wire from TLS terminal
22 to Rinse Terminal Block TB3 terminal 3B.
7. Close the junction box, replace the rinse
tank front panel. See the next page for
testing procedures.
