USN72 Booster Conversion Instructions - Kit P/N 453393
Mounting the C57 Modified Booster Assembly
to the Top of Dishwasher
Top of
Dishwasher
Hood
A
B
C
NOTE:
Remove and
discard shipping
legs.

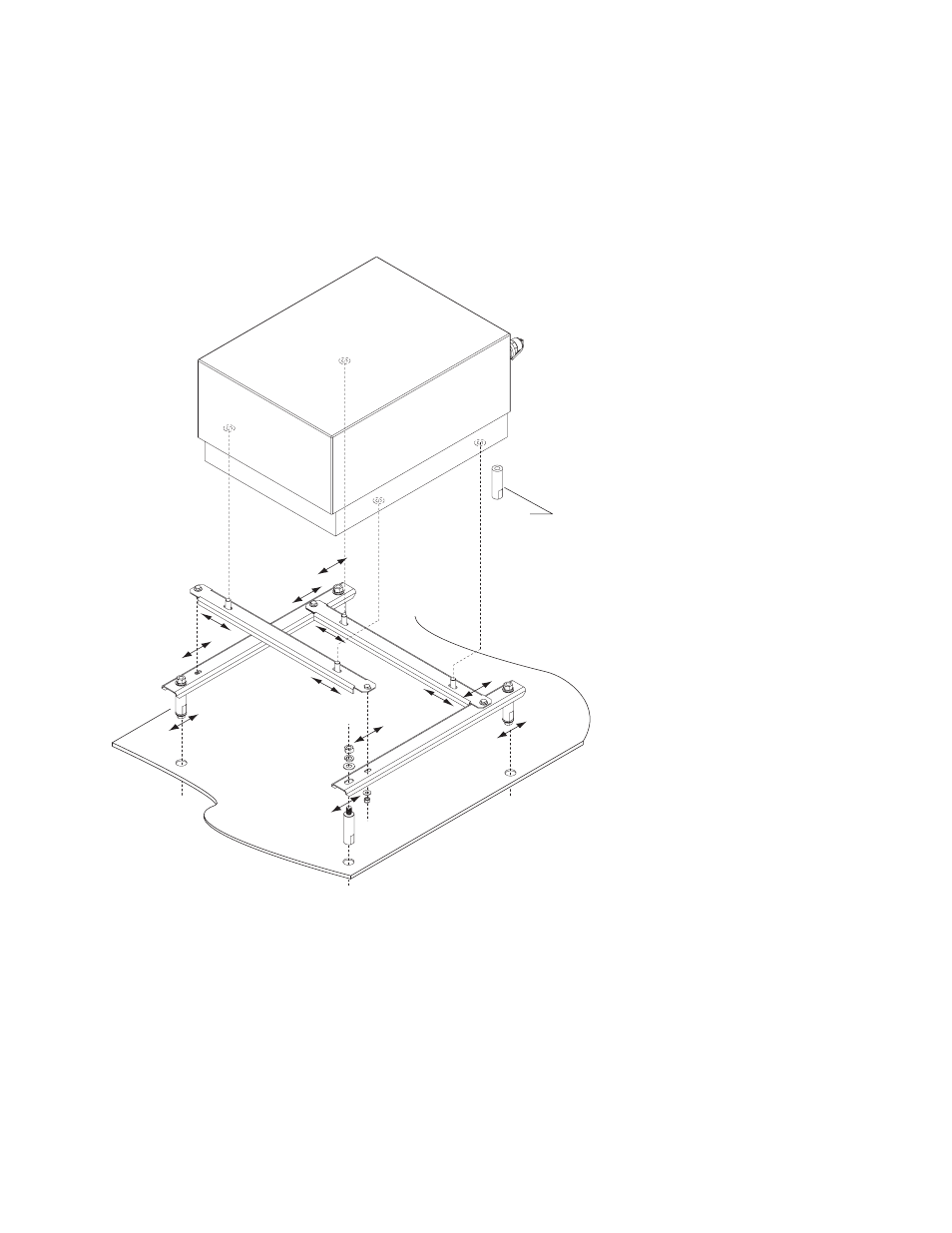

1. The booster is
mounted to the top of
dishwasher using 4
channels and hardware
contained in the Kit.
2. The side channels are
attached to the booster.
3. The front/rear channels
are attached to the side
channels.
4. Slots in the channels allow
adjustments to be made
when the channels are
assembled. These slots are
labeled A, B, and C in the
illustration to the left.
5. The standoffs are attached
to the side channels and are
bolted to existing holes in
the top of the dishwasher.
