Network Connection

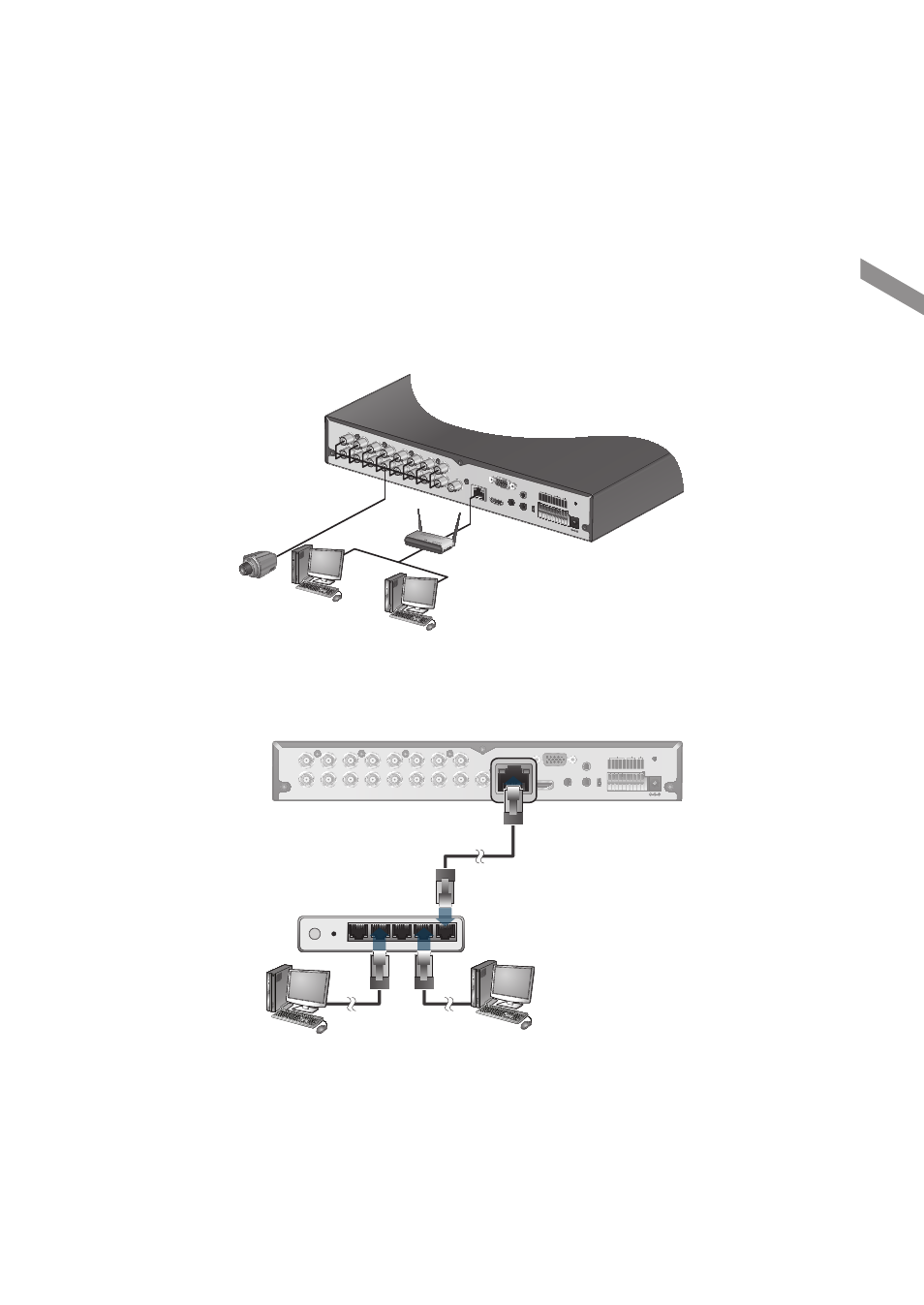

PC connection in the local network
You can connect DVR to a PC in the same network and control or manipulate it on the PC monitor.
1.
Connect the [ETHERNET] port in the rear panel to the router or hub.
2.
Connect the local PC to the router or hub.
3.
Enter the address in the Web browser of your PC in the format of:
“
http://IP address:Web service port
”
(Ex : http://192.168.0.23:8080) The web service port is set to 8080 by default. From the Network Setup screen, you
can change the port number.
If using the dedicated PC S/W, refer to the user manual of the program.
4.
Provide the ID and password before logging in. Then, you can view the monitoring screen.
Access ID (factory default) : ADMIN, P/W : 1234.
J
For security purpose, change the password before you use the product for the first time after purchasing it.
