Page 16: Power connection
Installation
16
|
Installation
Connecting to an external device
\
\
Connecting to the monitor
This product supports 1080p 60 Hz HDMI monitors and regular monitors that support DVI and VGA inputs. Connect an
HDMI cable to the port on the product
’
s rear bottom, or connect an HDMI-DVI converter cable to connect a DVI monitor.
Or, use VGA cable to connect the product with a VGA monitor.
~
Once the product is set for NTSC or PAL output, connect cameras of the corresponding video
standard for proper operations.
Setting the product to NTSC or PAL decides available display output modes too.
The monitor
’
s displaying operates at 50Hz if the product has been set to PAL output and
the connected monitor supports both 50Hz and 60 Hz inputs. For NTSC setting, it works at
60 Hz.
J
Make sure to connect the product to a monitor that supports 1920x1080 at 60Hz.
(HDMI, DVI, VGA)
\
\

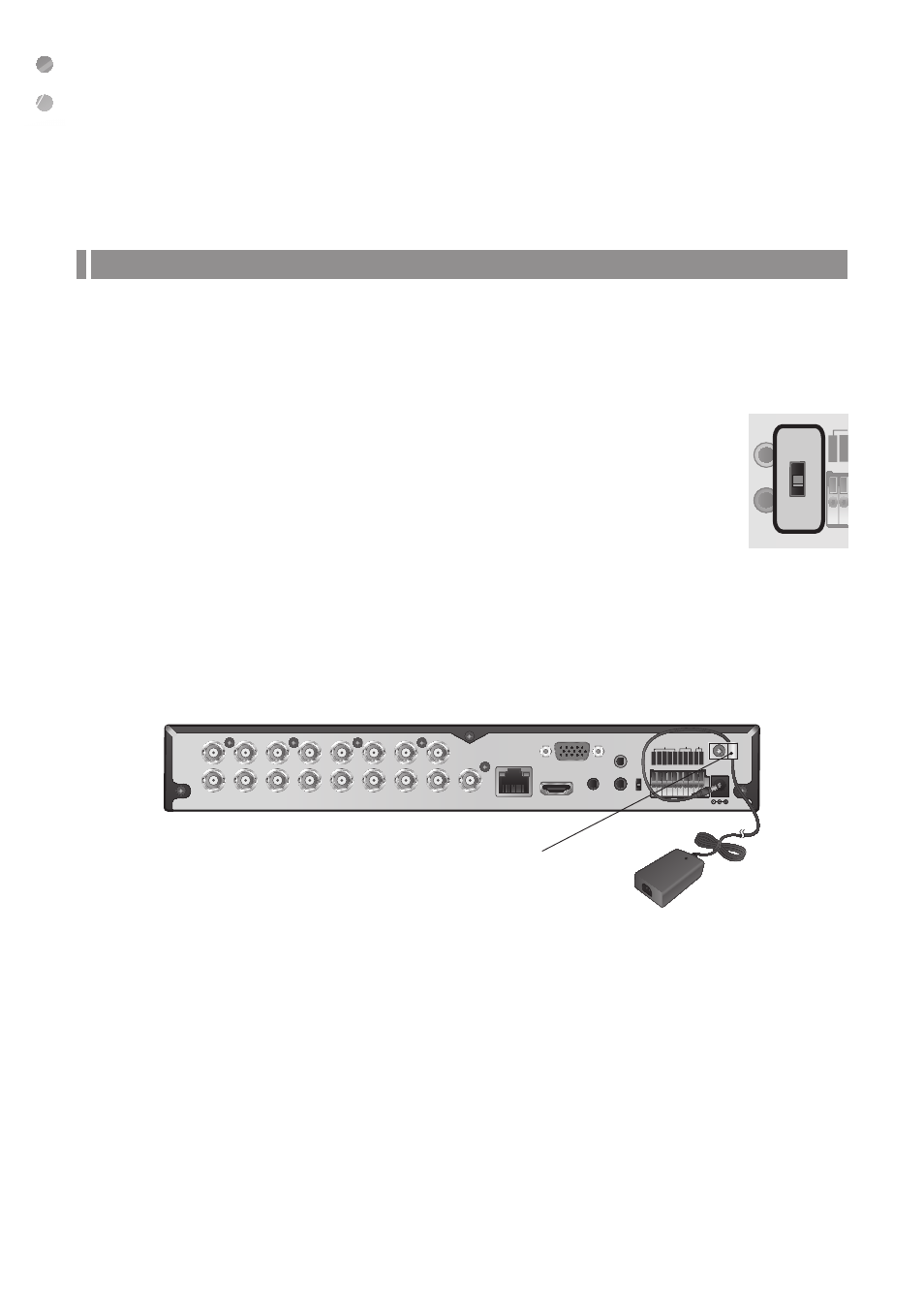

Power Connection
Plug the provided DC 12V adaptor in the rear power port of the DVR.
When done, attach the Adapter cable retainer clip to the rear panel and insert the cable in.
J
For stable operation of the product, it is recommended to use the provided adapter. (12V, 5A)
J
Make connection when the power is not applied yet.
J
Arrange up the cables and be careful not to peel off the cable coating.
J
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded. However, even if
it's not earth-grounded, do never modify it on your own for earth-grounding.
J
Do not insert multiple devices in a single power socket. Otherwise, it may cause a power overload.
J
For stable power supply, this product provides two separate adaptors and two corresponding AC cords by factory
default. Make sure all cables are connected properly.
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1 IN 2 GND IN 3 IN 4 NO COM NC D+ D-
ALARM IN
RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1 IN 2 GND IN 3 IN 4 NO COM NC D+ D-
PAL
NTSC
11
9
15
13
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1 IN 2 GND IN 3 IN 4 NO COM NC D+ D-
ALARM IN
RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
Adapter cable
retainer clip
DC 12V adaptor
