User manual Version 1.3

4-Port DIN-Rail Serial Device Server SE5404D

Copyright © 2011 Atop Technologies, Inc.

All rights reserved. Designed in Taiwan.

- 8 -

1.2 Application Connectivity

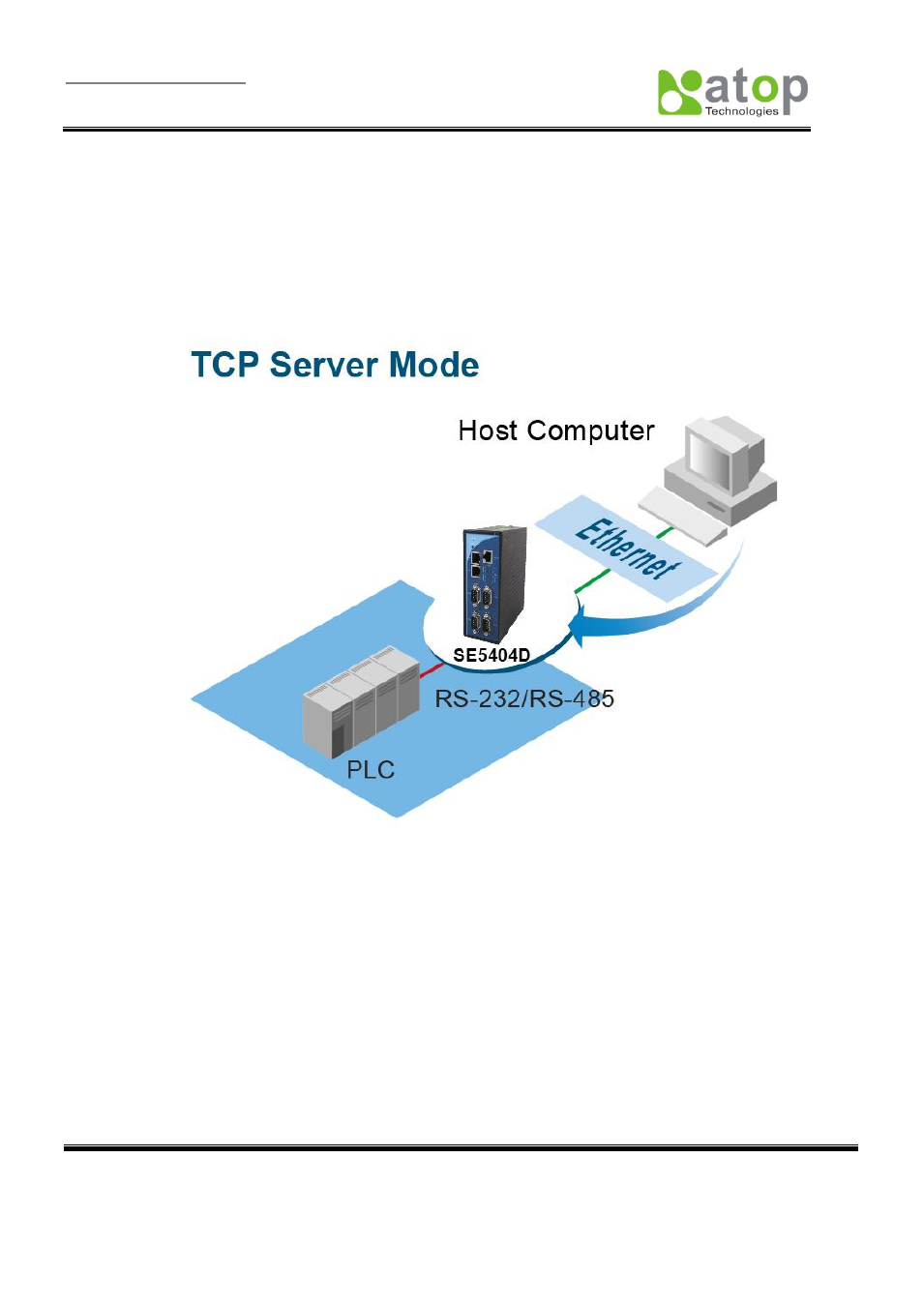

TCP Server Mode:SE5404D can be configured as a TCP server on TCP/IP Network to wait for other applications

(clients) in host computer to establish a connection with the serial device. After the connection

is established between serial device and host computer, data can be transmitted in both

directions Figure 1.1.

Figure 1.1 TCP Server Mode
